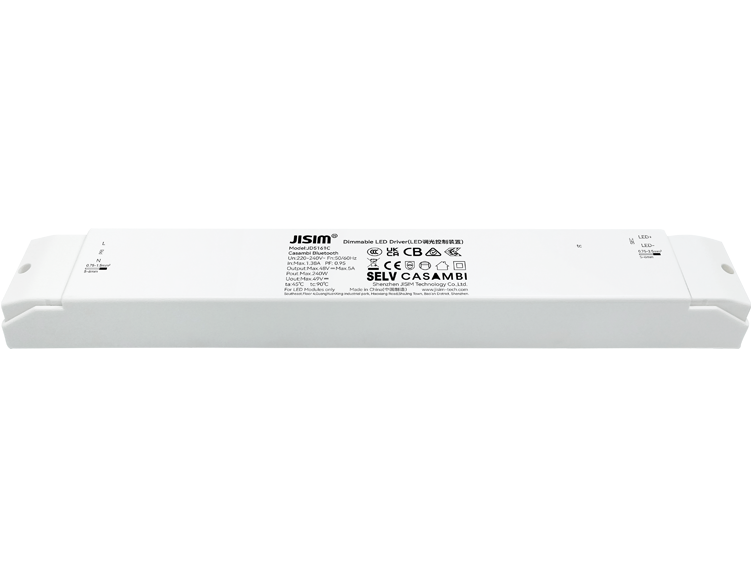

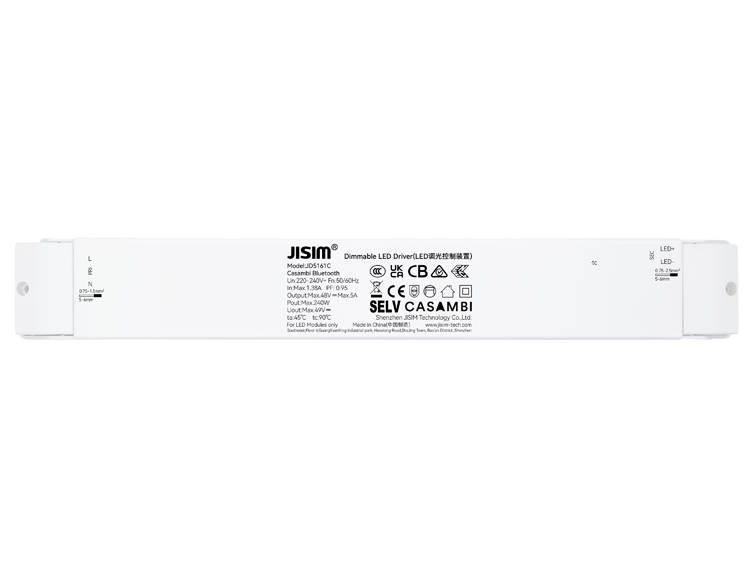

JD5161C Casambi Bluetooth 240W 5A 220-240VAC
HomeProductBluetooth

JD5161C Casambi Bluetooth 240W 5A 220-240VAC

Product Features

  • Standalone design: Suitable for LED strips, light bars, linear lights, light films, magnetic track lights and decorative lights
  • Dimmable constant voltage driver: Full power, high power factor, high efficiency and long service life
  • Bluetooth communication: Developed based on Casambi platform with powerful networking capability
  • Smooth high-performance dimming: Flicker-free and no noise
  • Dimming range: 1%~100%, built-in soft start function
  • Control: Compatible with Casambi App
  • Protection functions: Output short-circuit, open-circuit and overload protection
  • Compliance: Complies with safety extra-low voltage standards
  • Terminals: Screw locking terminals for input and output
  • Operating ambient temperature: -20℃~+45℃; maximum housing temperature 90℃
  • Applicable lamp types: Class I, Class II and Class III lamps
  • Protection Class: Class II
Consult Now Buy Now
  • Model Number
    JD5161C
  • Rated Voltage
    220-240Vac
  • Output Current
    5A
  • Product Dimension
    325*44*30mm
  • Dimming Mode
    Casambi Bluetooth
  • Dimming Range
    1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net weight: 363.1±10g per piece, small package: 397g per piece, medium carton: 5.46kg per carton, large carton: 22.7kg per carton
  • Packaging
    Medium carton: 13pcs per carton Large carton: 52pcs per carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    Constant Voltage
  • Output Power
    Max.240W
  • Output Voltage
    48V
  • PF
    >0.95
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Standalone
  • Warranty
    5 years
