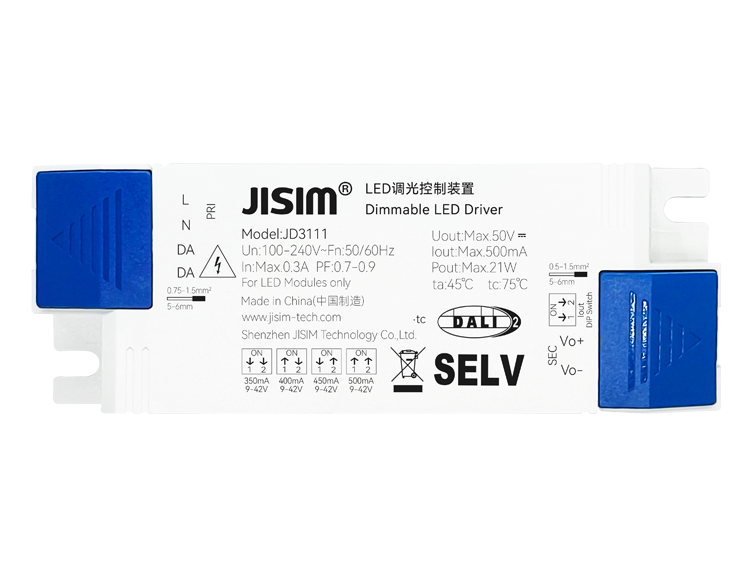

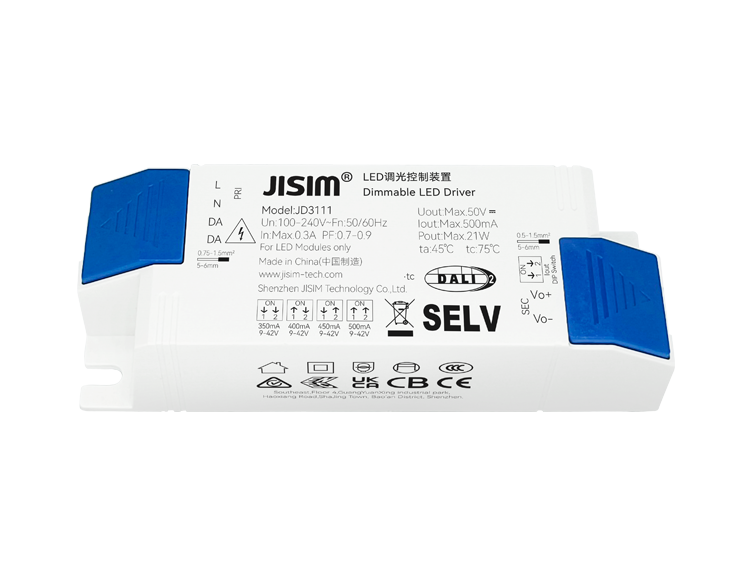

JD3111 DALI DT6 21W 350-500mA 100-240VAC DIP

Compact design, suitable for small cutout downlights and linear lights
Dimmable CC driver, high efficiency and long service life
Supports DALI-2+Push dimming
Dual-stage architecture, built-in MCU with unique dimming algorithm, flicker-free and noise-free
Smooth high-performance dimming, compatible with more DALI masters
Dimming range 1…100%, built-in soft-start function
Select output current via DIP switch
Output short-circuit, open-circuit and overload protection
Complies with SELV standard
Push-fit terminals for input and output
Ambient temperature: -20～+45℃, maximum case temperature 75℃
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD3111
Rated Voltage

100-240Vac
Output Current

350-500mA

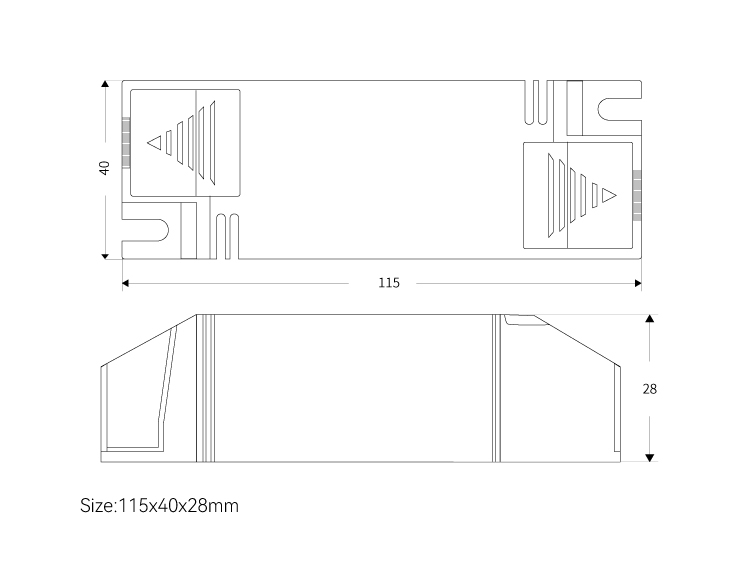

Product Dimension

115*40*28mm
Dimming Mode

DALI DT6
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:106.3±10g/pcs, Small Pack:120g/pcs, Inner Pack:5.1kg/carton, Outer Pack:21.3kg/carton
Packaging

Inner Pack:40pcs/carton, Outer Pack:160pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.21W
Output Voltage

9-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75°C
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
