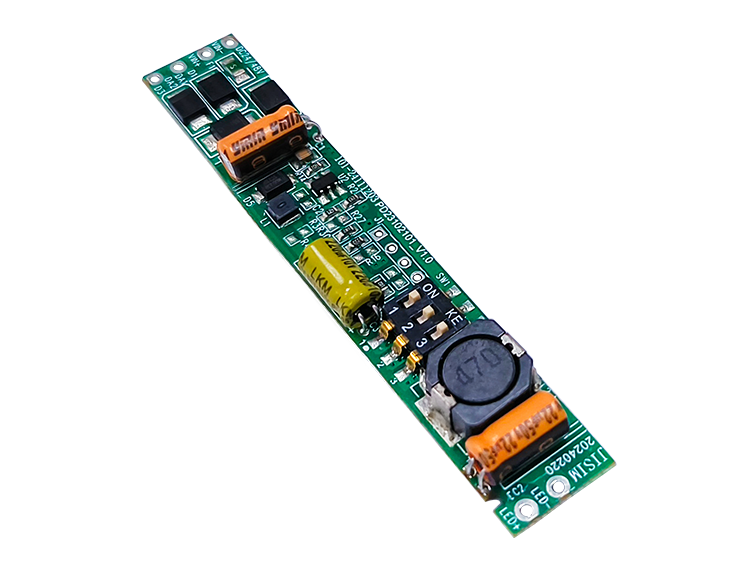

DALI-2+PushDim DT6 Built-in Magnetic CC Series

Compact design, suitable for magnetic track lights.
Dimmable CC driver, high efficiency, long lifespan.
Supports DALI-2 + Push dimming.
Dual-stage architecture design, built-in MCU, unique dimming algorithm, flicker-free, noise-free.
Smooth high-performance dimming, compatible with more DALI masters.
Dimming range 0.1...100%, with built-in soft start function.
Output current selectable via DIP switch.
Output short circuit, open circuit and overload protection.
Ambient temperature -20 to +45°C.
Suitable for Class III luminaires.

Consult Now Buy Now

Dimming Mode

DALI DT6
Dimming Range

0.1-100%
Protection

Output short circuit, open circuit and overload protection.
Protection Class

IP20 (with enclosure)
Frequency

50-60Hz
Weight

Net Weight: 7±5g/pcs, Middle Carton: 2.92kg/carton, Master Carton: 12.59kg/carton
Package

Middle Carton: 210 pcs/carton, Master Carton: 840 pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

-
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
