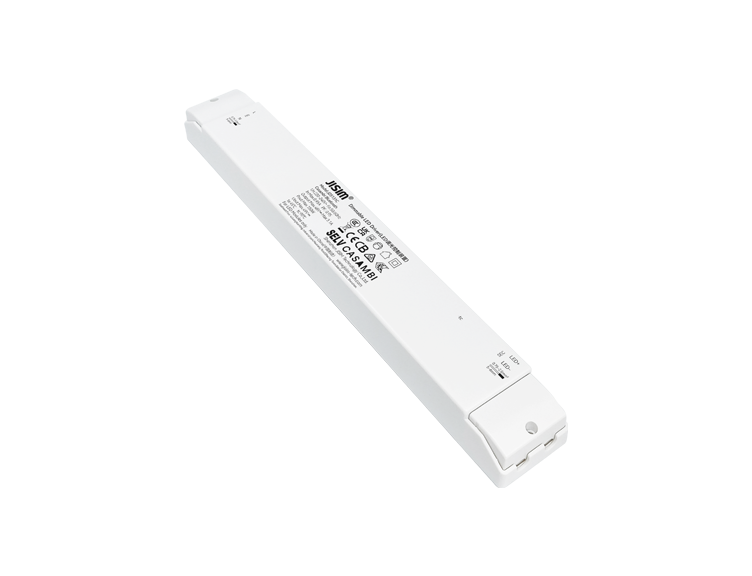

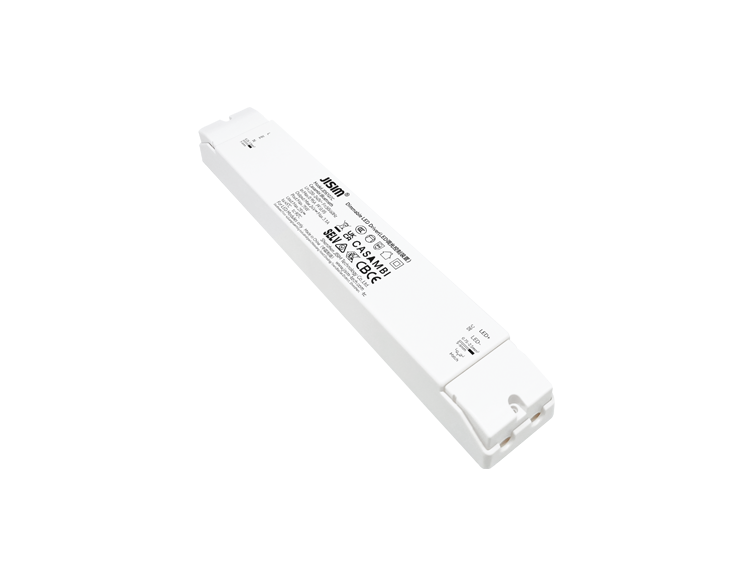

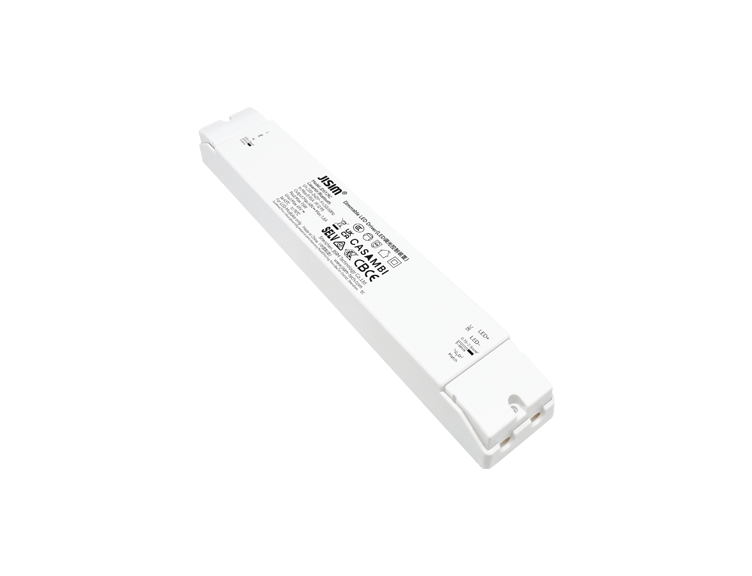

Casambi Bluetooth Independent CV Series
HomeProductBluetooth

Casambi Bluetooth Independent CV Series

Series Features

  • Standalone design applicable to LED strips, light bars, linear lights, light films, magnetic track lights and decorative lights
  • Dimmable constant voltage driver with full rated power, high power factor, high efficiency and long service life
  • Bluetooth communication developed based on Casambi platform with strong networking performance
  • High-performance smooth dimming, flicker-free and noise-free
  • Dimming range: 1% to 100%, equipped with built-in soft start function
  • Supports control via Casambi App
  • Output short-circuit, open-circuit and overload protection
  • Compliant with SELV safety standards
  • Screw locking terminals for input and output wiring
  • Ambient temperature: -20℃ ~ +45℃, maximum case temperature: 90℃
  • Suitable for Class I, II and III lamps
  • Protection Class II
Consult Now Buy Now
  • Dimming Mode
    Casambi Bluetooth
  • Dimming Range
    1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Class
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net weight: 255.2±10g/pc, small package: 284.5g/pc, medium carton: 4.57kg/carton, large carton: 19.17kg/carton (See specification for details)
  • Package
    Medium carton: 15pcs/13pcs per carton Large carton: 60pcs/52pcs per carton
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Max Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standard
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Lifetime
    >50000h@ta<45℃
