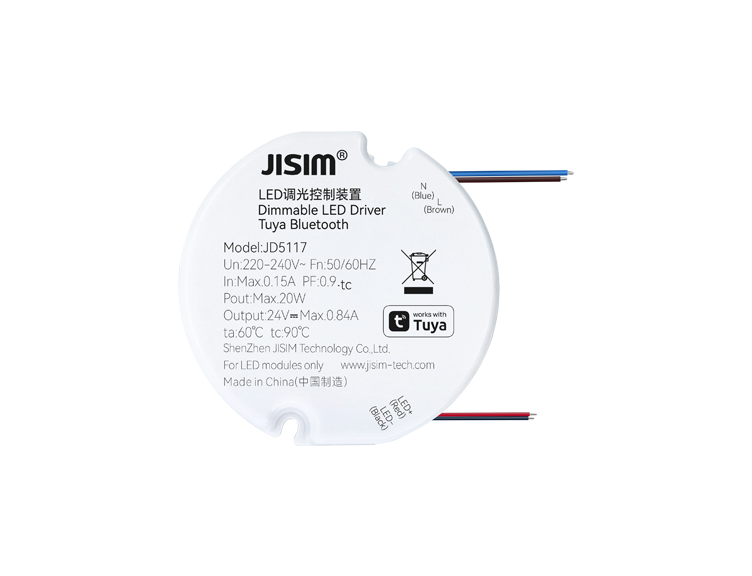

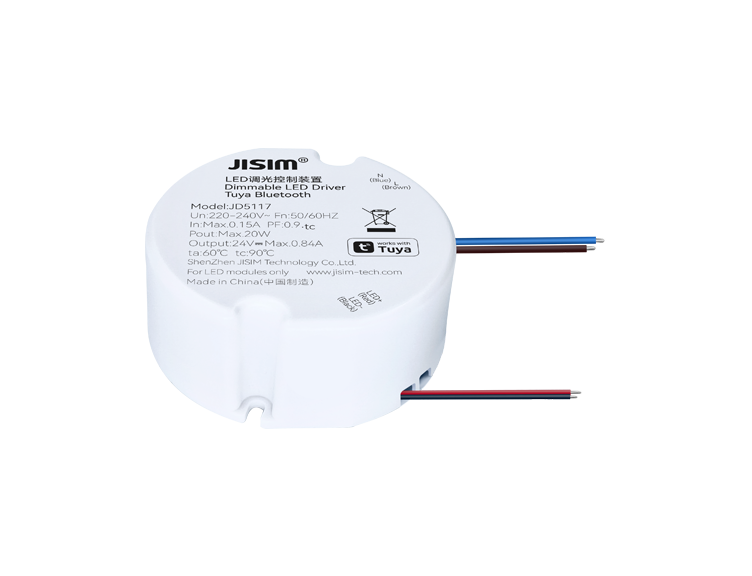

JD5117 Tuya Bluetooth 20W 0.84A 220-240VAC DIP

Compact design, suitable for modern decorative lamps such as Wall Lamp, Table Lamp, Pendant Lamp
Built-in driver application, independent Ipex antenna
Dimmable CV driver, high power factor, high efficiency and long service life
Bluetooth communication, developed based on Tuya platform with strong networking capability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range 1…100%, built-in soft start function
Compatible with Tmall Genie, Baidu Xiaodu, Xiaomi Xiaoai, Xiaozhi Butler, Tencent Xiaowei, Tencent Dingdong and JD Dingdong
Output short-circuit, open-circuit and overload protection
Compliant with SELV standard
Lead type for input and output terminals
Ambient temperature: -20～+60℃, maximum case temperature 90℃
Internal potting sealing of the product to strengthen protection for lamps requiring waterproof and moisture-proof
Suitable for Class Ⅰ, Ⅱ, Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD5117
Rated Voltage

220-240Vac
Output Current

0.84A
Product Dimension

55*53*23mm
Dimming Mode

Tuya Bluetooth
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:89.7±10g/pcs, Small Pack:99.9g/pcs, Inner Pack:6.89kg/carton, Outer Pack:28.47kg/carton
Packaging

Inner Pack:66pcs/carton, Outer Pack:264pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CV
Output Power

Max.20W
Output Voltage

24V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Built-in
Warranty

5 years
