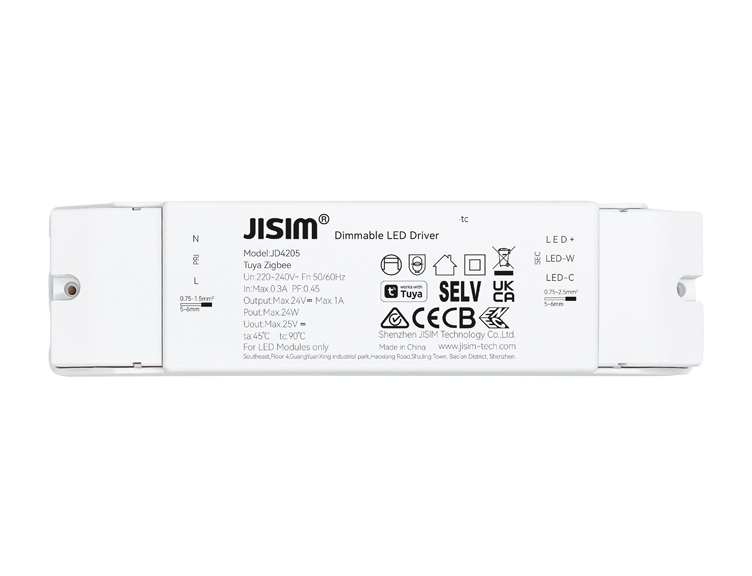

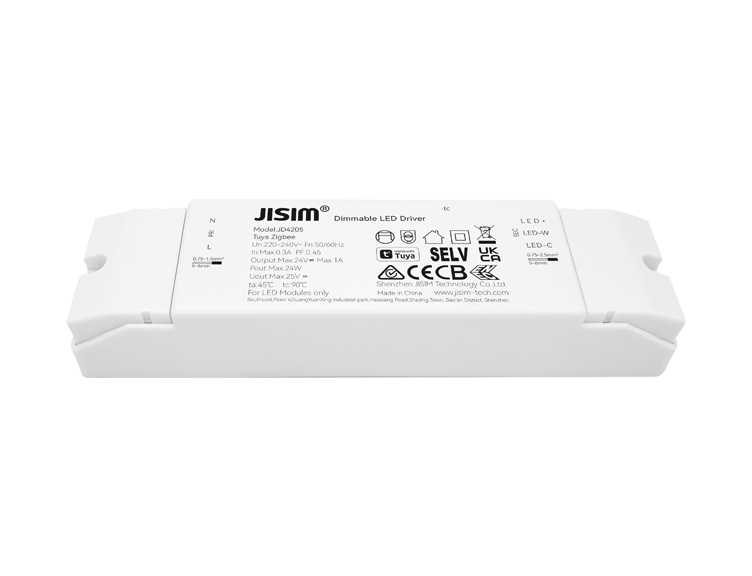

JD4205 ZigBee 24W 1A 220-240VAC DIP

Independent design, suitable for LED strip, light bar, linear light, light film, magnetic light, decorative light
Dimmable tunable CV driver, high efficiency and long service life
ZigBee communication, developed based on Tuya platform with strong networking capability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range 1…100%, built-in soft start function
Compatible with Tmall Genie, Baidu Xiaodu, Xiaomi Xiaoai, Xiaozhi Butler, Tencent Xiaowei, Tencent Dingdong and JD Dingdong
Output short-circuit, open-circuit and overload protection
Compliant with SELV standard
Screw-locking terminals for input and output
Ambient temperature: -20～+45℃, maximum case temperature 90℃
Suitable for Class Ⅰ, Ⅱ, Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD4205
Rated Voltage

220-240Vac
Output Current

1A
Product Dimension

165*42*30
Dimming Mode

ZigBee
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:153±10g/pcs, Small Pack:169.9g/pcs, Inner Pack:5.39kg/carton, Outer Pack:22.49kg/carton
Packaging

Inner Pack:30pcs/carton, Outer Pack:120pcs/carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

CV
Output Power

Max.24W
Output Voltage

24V
PF

>0.5
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
