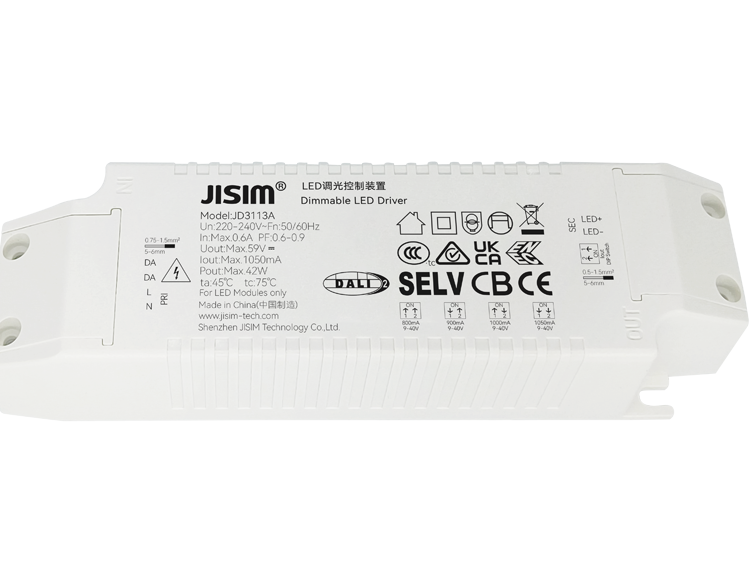

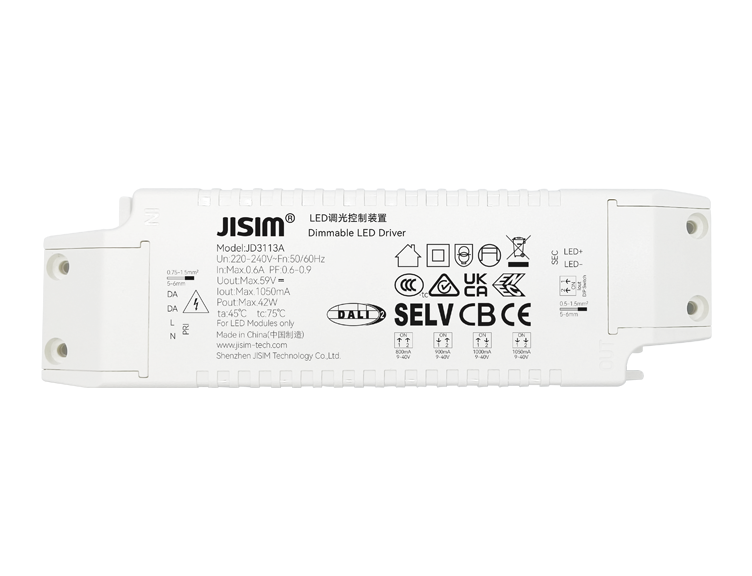

JD3113A DALI DT6 42W 750-1050mA 220-240VAC DIP
HomeProductDALI-2

JD3113A DALI DT6 42W 750-1050mA 220-240VAC DIP

Product Features

  • Compact design, suitable for small cutout downlights and linear lights
  • Dimmable CC driver, high efficiency and long service life
  • Supports DALI-2+Push dimming
  • Bipolar architecture design with built-in MCU and unique dimming algorithm, flicker-free and noise-free
  • Smooth high-performance dimming, compatible with more DALI masters
  • Dimming range 1…100%, built-in soft-start function
  • Output current selectable via DIP switch
  • Output short-circuit, open-circuit and overload protection
  • Complies with SELV standard
  • Push-fit terminals for input and output
  • Ambient temperature: -20～+45℃, maximum case temperature 75℃
  • Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD3113A
  • Rated Voltage
    220-240Vac
  • Output Current
    750-1050mA

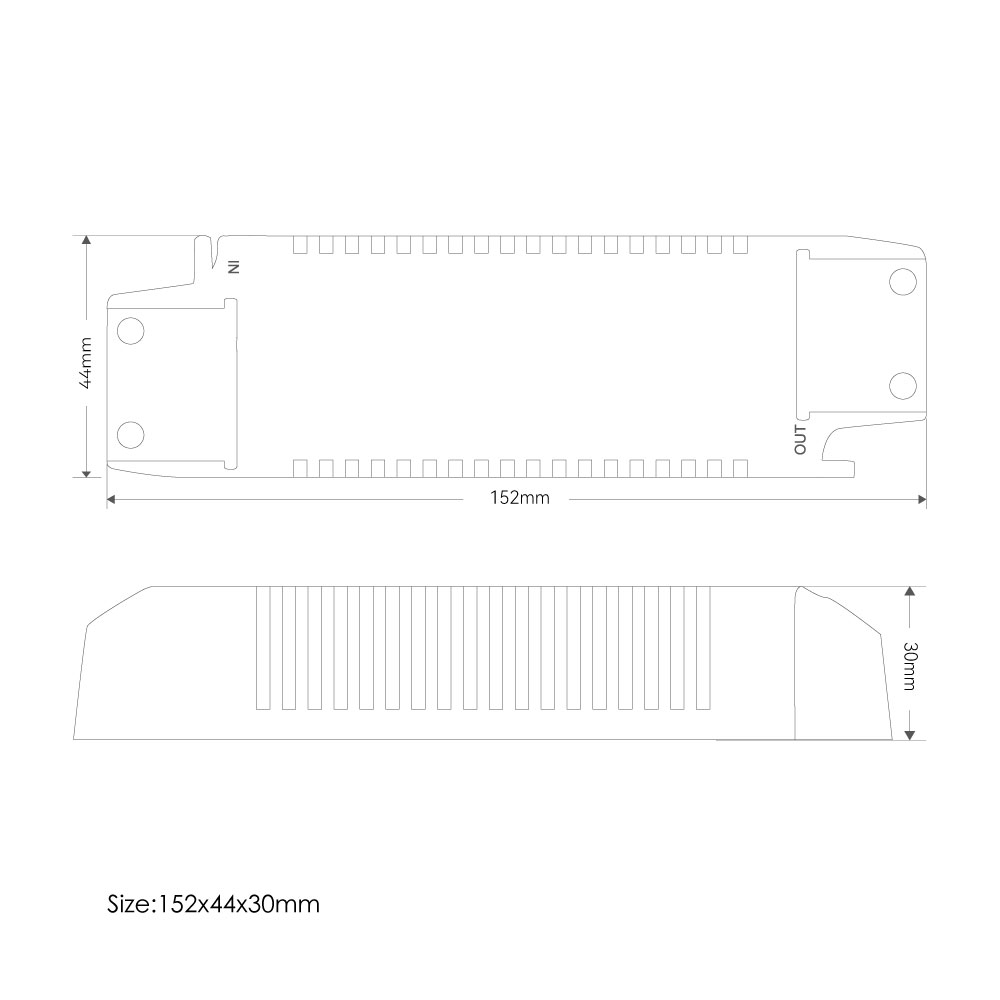

  • Product Dimension
    152*44*30mm
  • Dimming Mode
    DALI DT6
  • Dimming Range
    1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:164±10g/pcs, Small Pack:182.4g/pcs, Inner Pack:5.77kg/carton, Outer Pack:23.99kg/carton
  • Packaging
    Inner Pack:30pcs/carton, Outer Pack:120pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.42W
  • Output Voltage
    9-40V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    75°C
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
