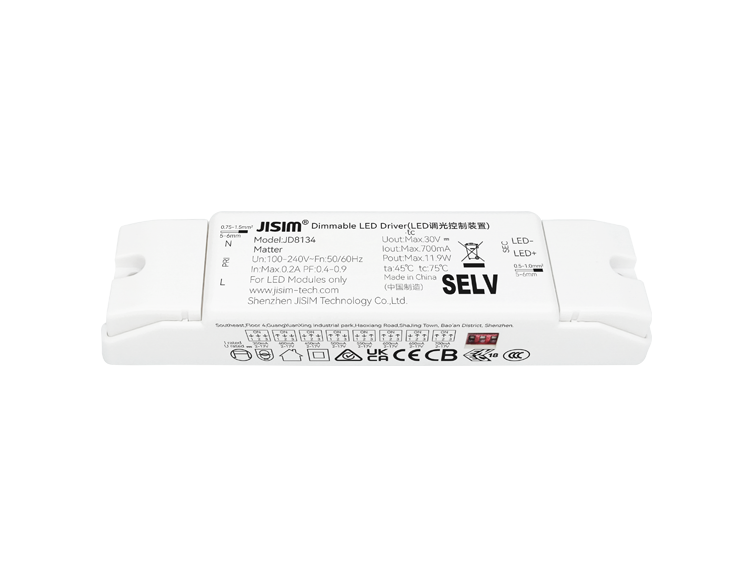

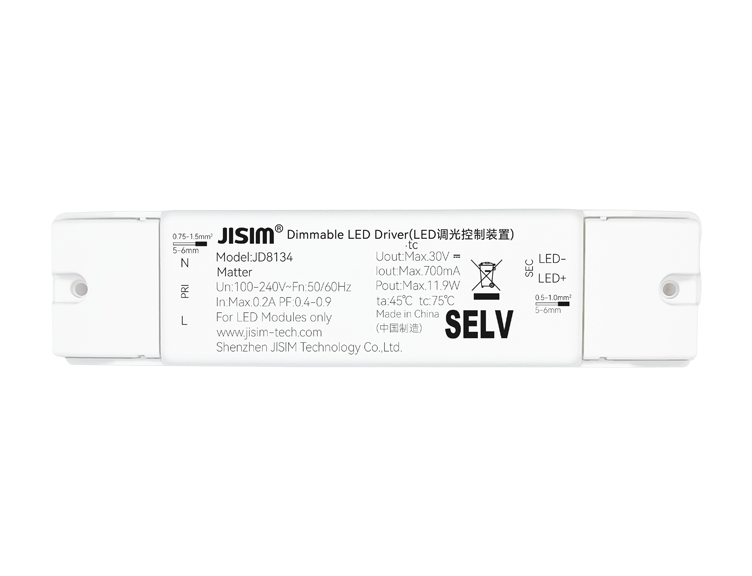

JD8134 Matter 11.9W 350-700mA 100-240VAC DIP

HomeProductMatter

JD8134 Matter 11.9W 350-700mA 100-240VAC DIP

Product Features

Compact design, suitable for small cutout downlight & spotlight, linear light
Dimmable CC driver, 100-240V~ input, high power factor, high efficiency and long service life
Wifi/Thread communication, developed based on Matter with strong networking capability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range 1…100%, built-in soft start function
Compatible with Tmall Genie, Baidu Xiaodu, Xiaomi Xiaoai, Xiaozhi Butler, Tencent Xiaowei, Tencent Dingdong and JD Dingdong
Select output current via DIP switch
Output short-circuit, open-circuit and overload protection
Compliant with SELV standard
Screw-locking terminals for input and output
Ambient temperature: -20～+45℃, maximum case temperature 75℃
Suitable for Class Ⅰ, Ⅱ, Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD8134
Rated Voltage

100-240Vac
Output Current

350-700mA
Product Dimension

126*30*20mm
Dimming Mode

Matter
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:67.9±10g/pcs, Small Pack:79.4g/pcs, Inner Pack:6.65kg/carton, Outer Pack:27.5kg/carton
Packaging

Inner Pack:80pcs/carton, Outer Pack:320pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.11.9W
Output Voltage

2-17V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
