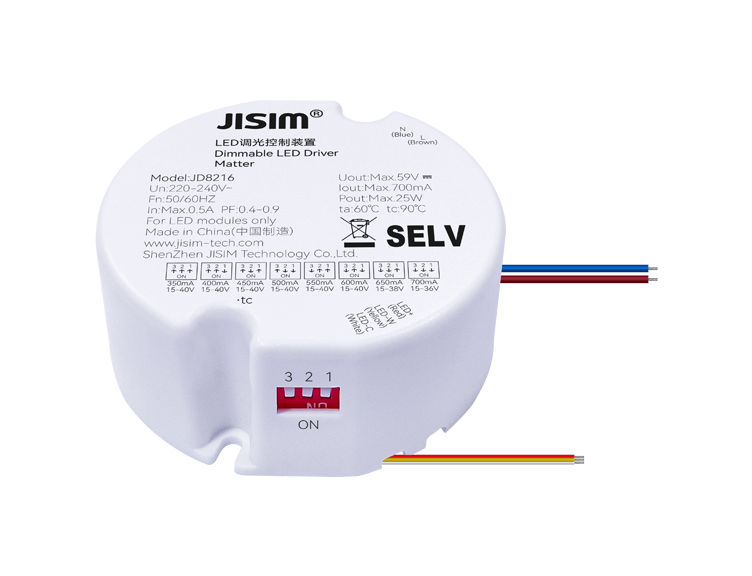

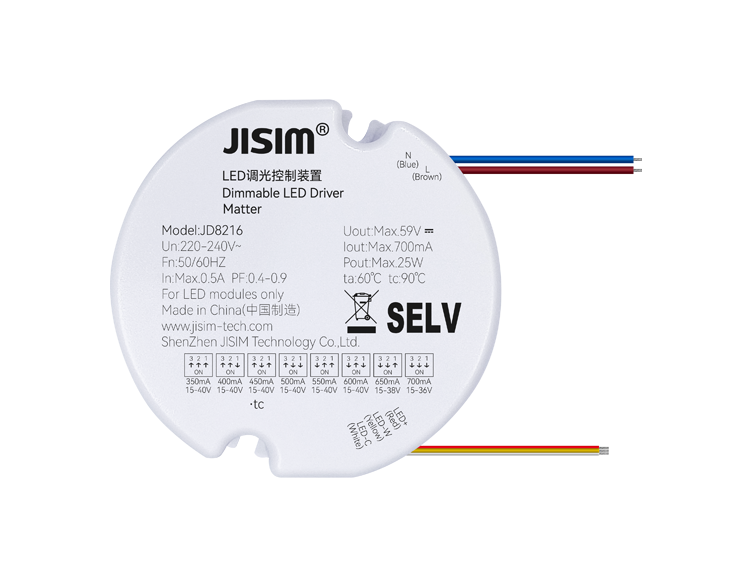

JD8216 Matter 25W 350-700mA 220-240VAC DIP

HomeProductMatter

JD8216 Matter 25W 350-700mA 220-240VAC DIP

Product Features

Compact design, suitable for surface‑mount downlight, spotlight, track light, wall light
Built‑in driver application, external Ipex antenna
Dimmable color‑tunable CC driver, high power factor, high efficiency, long service life
Wifi/Thread communication, developed based on Matter, strong networking capability
Smooth high‑performance dimming, flicker‑free, noise‑free
Dimming range 1…100%, with built‑in soft‑start function
Supports control by Tmall Genie, Baidu Duer, Xiaomi Xiaoai, Smart Steward, Tencent Weixiao, Tencent Dingdang and JD Dingdong
Select output current via dip‑switch
Output short‑circuit, open‑circuit and overload protection
Complies with safety extra‑low‑voltage standard
Lead‑type input and output terminals
Ambient temperature -20～+60℃, maximum case temperature 90℃
Internal potting sealing of product, enhanced protection for luminaires with waterproof and moisture‑proof requirements
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD8215
Rated Voltage

220-240Vac
Output Current

350-700mA
Product Dimension

65*63*26mm
Dimming Mode

Matter
Dimming Range

1-100%
Protection

Output short‑circuit, open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:115.2±10g/pcs,Small Pack:127.2g/pcs,Inner Pack:6.9kg/carton,Outer Pack:28.56kg/carton
Packaging

Inner Pack:52pcs/carton,Outer Pack:208pcs/carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

CC
Output Power

Max.25W
Output Voltage

15-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
