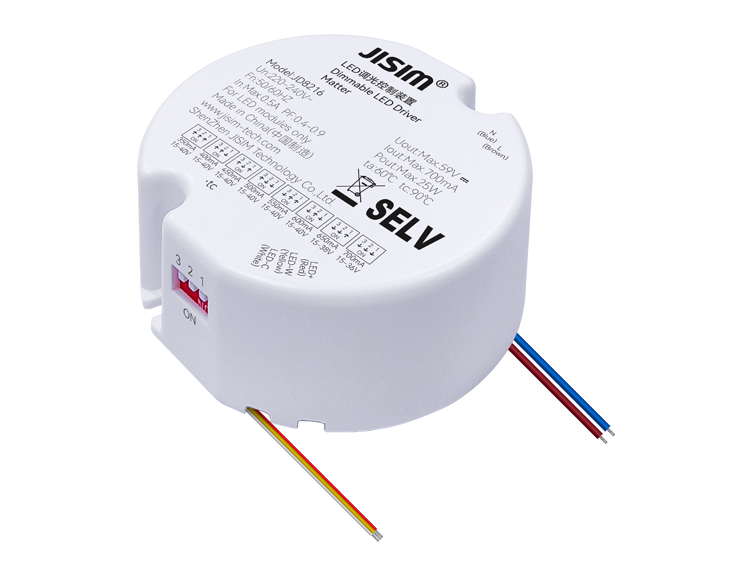

Matter Built-in CC CCT Tuning Series

Compact design, suitable for surface mounted downlights, spotlights, track lights and wall lights.
Built-in driver application, external IPEX antenna.
Dimmable & CCT tunable CC driver, high power factor, high efficiency, long lifespan.
Wi-Fi/Thread communication, Matter-based development, strong networking capability.
Smooth high-performance dimming, flicker-free, noise-free.
Dimming range 1...100%, with built-in soft start function.
Supports control via Tmall Genie, Xiaodu, Xiaoai, Xiaozhi Guanjia, Tencent Xiaowei, Tencent Dingdang, JD Dingdong, etc.
Output current selectable via DIP switch.
Output short circuit, open circuit and overload protection.
Complies with SELV (Safety Extra Low Voltage) standard.
Input and output lead wire type.
Ambient temperature -20 to +60°C, maximum enclosure temperature 90°C.
Internally potted and sealed, enhanced protection for luminaires with waterproof and moisture-proof requirements.
Suitable for Class I, II and III luminaires.
Protection Class II.

Consult Now Buy Now

Dimming Mode

Matter
Dimming Range

1-100%
Protection

Output short circuit, open circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 85.5±10g/pcs, Small Pack: 95.6g/pcs, Middle Carton: 6.6kg/carton, Master Carton: 27.3kg/carton (See specification sheet for details)
Package

Middle Carton: 66/52 pcs/carton, Master Carton: 264/208 pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
