JD4218 ZigBee 30W 1.32A 220-240VAC DIP
HomeProductZigBee

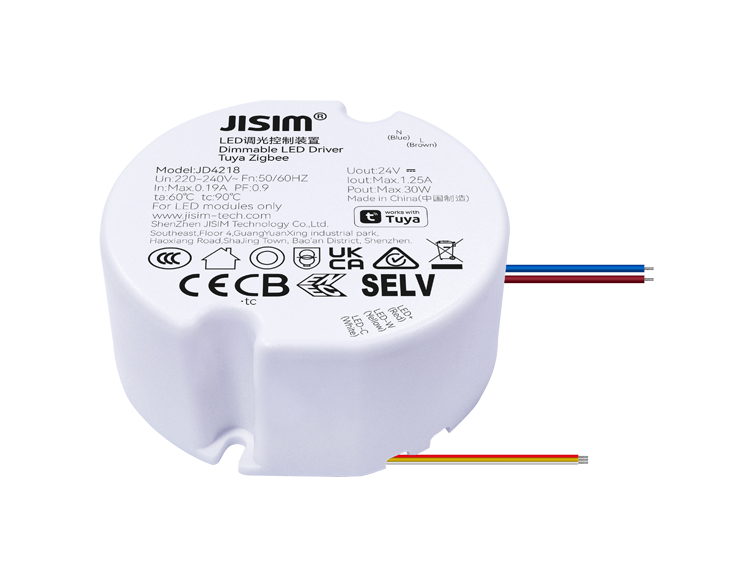

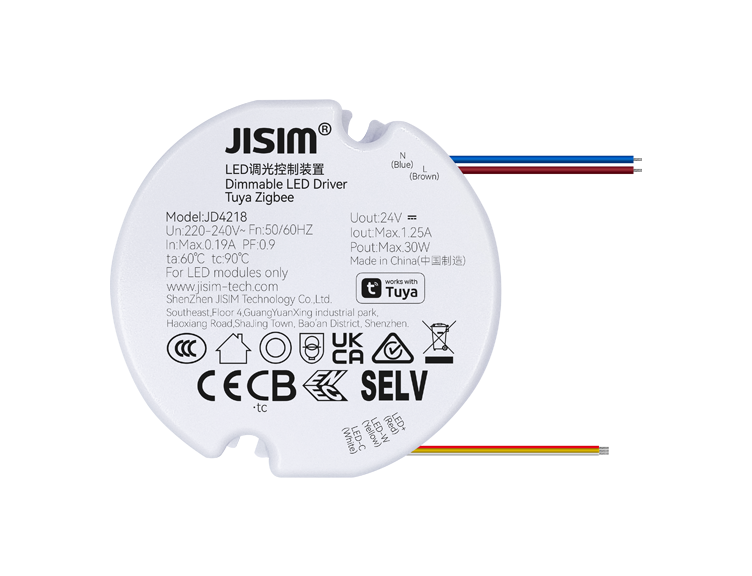

JD4218 ZigBee 30W 1.32A 220-240VAC DIP

Product Features

  • Compact design, suitable for modern‑style decorative luminaires such as wall light, table lamp and pendant light
  • Built‑in driver application, external Ipex antenna
  • Dimmable color‑tunable CC driver, high power factor, high efficiency, long service life
  • ZigBee communication, developed based on Tuya platform, strong networking capability
  • Smooth high‑performance dimming, flicker‑free, noise‑free
  • Dimming range 1…100%, with built‑in soft‑start function
  • Supports control by Tmall Genie, Baidu Duer, Xiaomi Xiaoai, Smart Steward, Tencent Weixiao, Tencent Dingdang and JD Dingdong
  • Output short‑circuit, open‑circuit and overload protection
  • Complies with safety extra‑low‑voltage standard
  • Lead‑type input and output terminals
  • Ambient temperature -20～+60℃, maximum case temperature 90℃
  • Internal potting sealing of product, enhanced protection for luminaires with waterproof and moisture‑proof requirements
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD4218
  • Rated Voltage
    220-240Vac
  • Output Current
    1.32A
  • Product Dimension
    65*63*26mm
  • Dimming Mode
    ZigBee
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit, open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:115.5±10g/pcs,Small Pack:127.7g/pcs,Inner Pack:6.9kg/carton,Outer Pack:28.6kg/carton
  • Packaging
    Inner Pack:52pcs/carton,Outer Pack:208pcs/carton
  • Output Channel
    3CCT
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    Max.30W
  • Output Voltage
    24V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
