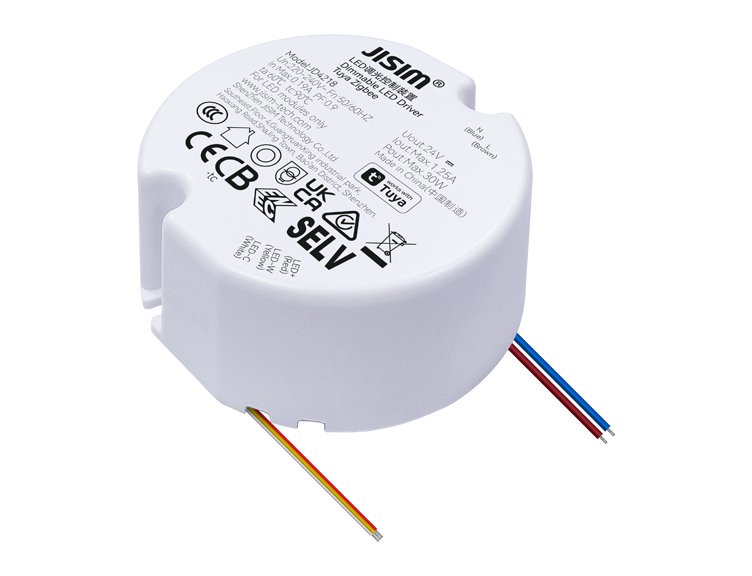

ZigBee Built-in CV CCT Tunable Series

Compact design, suitable for modern decorative lamps such as wall lamps, table lamps and pendant lamps
Built-in driver adoption, independent Ipex antenna
Dimmable CCT tunable CC driver, high power factor, high efficiency and long service life
ZigBee communication, developed based on Tuya platform with strong networking capability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range 1…100%, built-in soft start function
Supports control by Tmall Genie, Baidu Xiaodu, Xiaomi Xiaoai, Xiaozhi Butler, Tencent Xiaowei, Tencent Dingdang and JD Dingdong
Output short-circuit, open-circuit and overload protection
Complies with safety extra-low voltage standard
Lead type for input and output terminals
Ambient temperature -20～+60℃, maximum case temperature 90℃
Internal potted sealing, providing enhanced protection for lamps requiring waterproof and moisture-proof functions
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Dimming Mode

ZigBee
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 88.6±10g/pcs, Small Pack: 98.6g/pcs, Inner Pack: 6.65kg/carton, Outer Pack: 27.5kg/carton
Package

Inner Pack:66pcs/52pcs/carton, Outer Pack:264pcs/208pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
