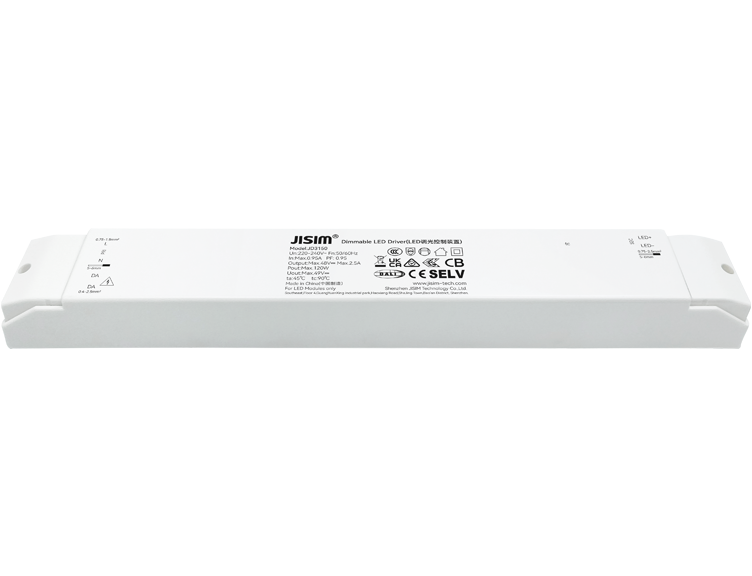

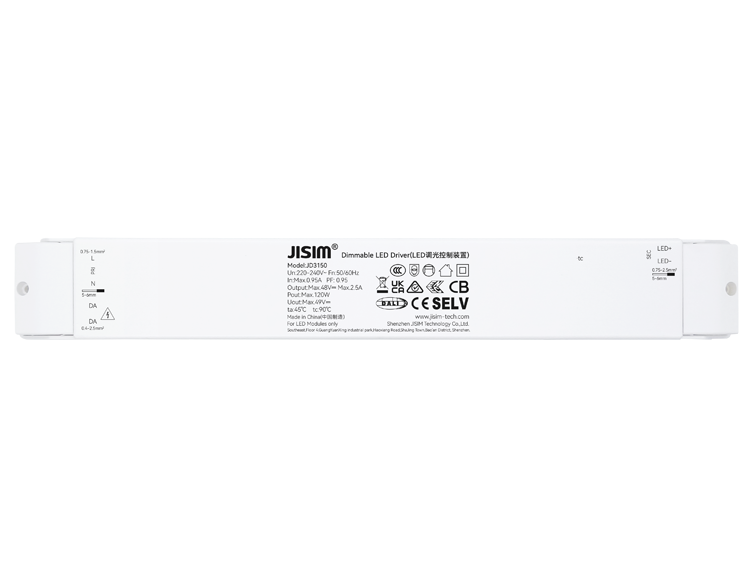

JD3150 DALI DT6 120W 2.5A 220-240VAC DIP

Product Features

Consult Now Buy Now

Model Number

JD3150
Rated Voltage

220-240Vac
Output Current

2.5A
Product Dimension

325*44*30mm
Dimming Mode

DALI DT6
Dimming Range

1-100%
Protection

输出短路、开路、过载保护
Protection Grade

IP20
Frequency

50-60Hz
Weight

净重：366.2±10g/pcs, 小包: 400.7g/pcs, 中包:5.5kg/箱, 大包: 22.94kg/箱
Packaging

中包：13pcs/箱，大包:52pcs/箱
Output Channel

DIM
IP Rating

IP20
Working Mode

恒压
Output Power

Max.120W
Output Voltage

48V
PF

>0.95
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

输入对输出:3750Vac,5mA,60s
Insulation Resistance

输入对输出:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

独立式
Warranty

5年
