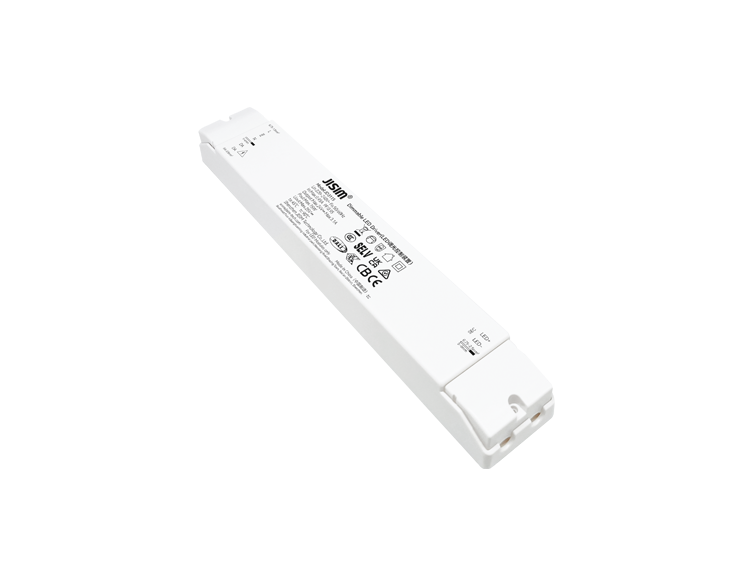

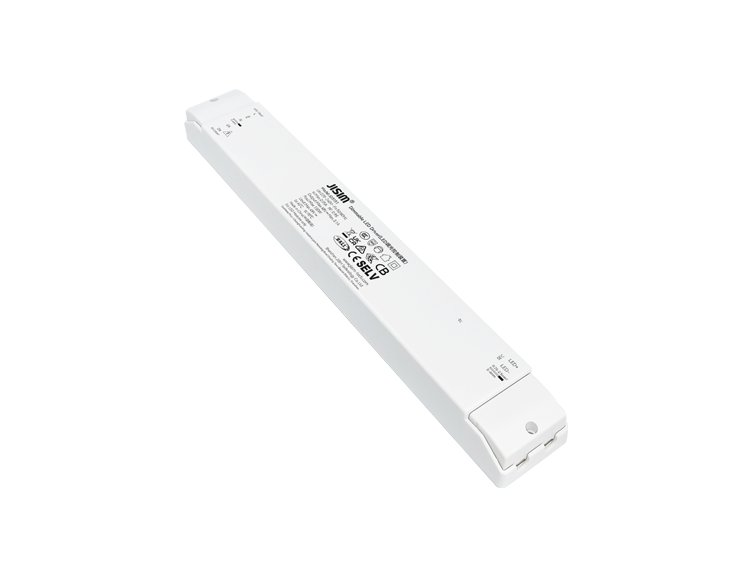

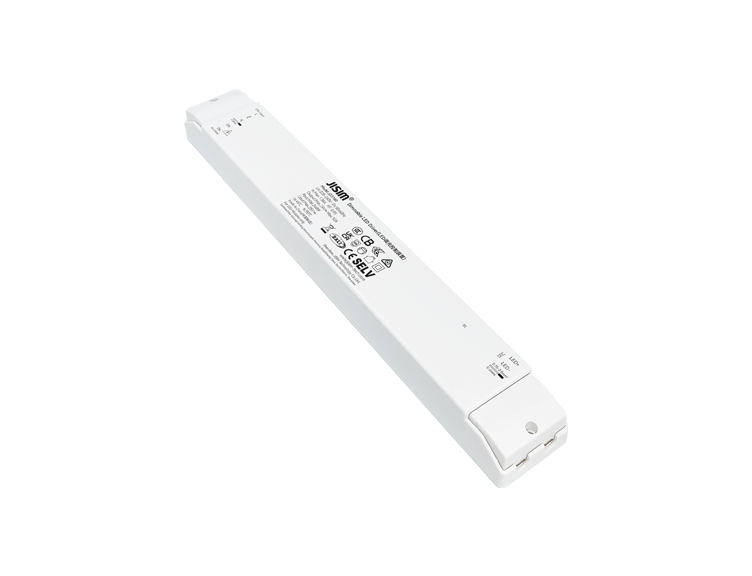

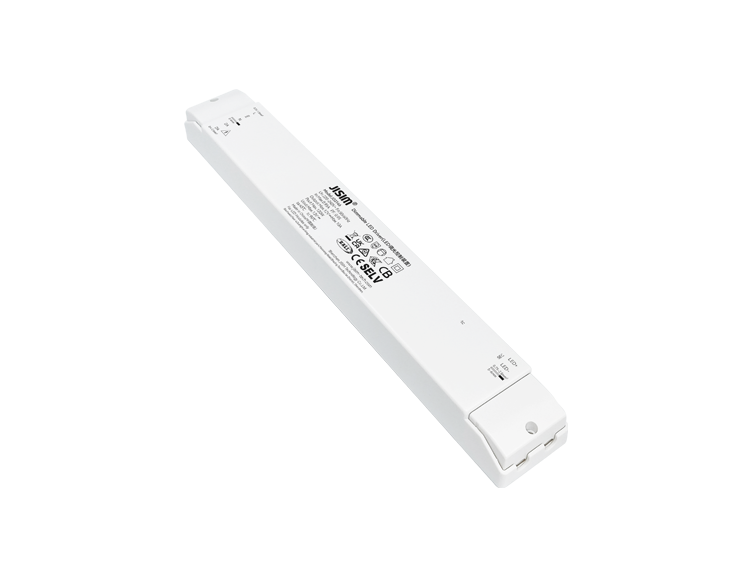

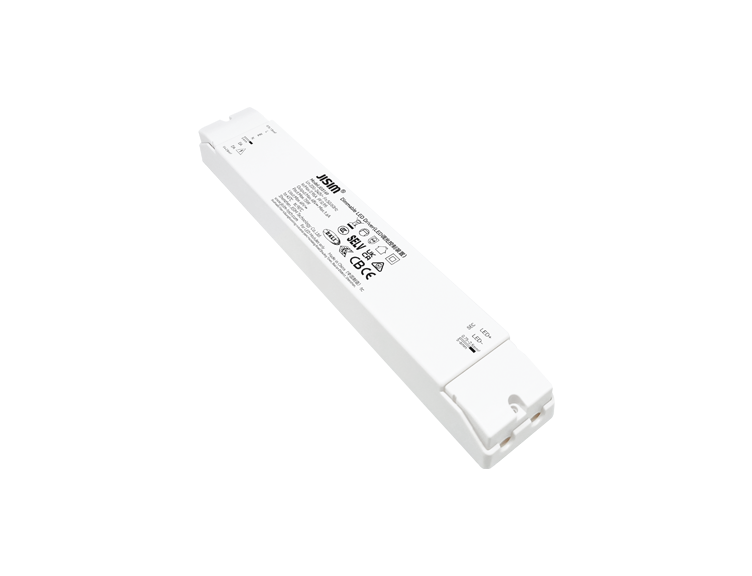

DALI-2+PushDim DT6 Independent CV Series 2
HomeProductDALI-2

DALI-2+PushDim DT6 Independent CV Series 2

Series Features

  • Independent design, suitable for LED strips, LED bars, linear lights, LED films, magnetic lights and decorative lights
  • Dimmable CV driver, full power, high power factor, high efficiency and long service life
  • Supports DALI-2+Push dimming
  • Built-in MCU with unique dimming algorithm, flicker-free and noise-free
  • Smooth high-performance dimming, compatible with more DALI masters
  • Dimming range 1…100%, built-in soft start function
  • Output short-circuit, open-circuit and overload protection
  • Dimming port isolated, output complies with safety extra-low voltage standard
  • Screw-locked terminals for input and output
  • Ambient temperature -20～+45℃, maximum case temperature 90℃
  • Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Dimming Mode
    DALI DT6
  • Dimming Range
    1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Class
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight: 261±10g/pcs, Small Pack: 291g/pcs, Inner Pack: 4.67kg/carton, Outer Pack: 19.56kg/carton (See datasheet for details)
  • Package
    Inner Pack:15pcs/13pcs/carton, Outer Pack:60pcs/52pcs/carton
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Max Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standard
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Lifetime
    >50000h@ta<45℃
