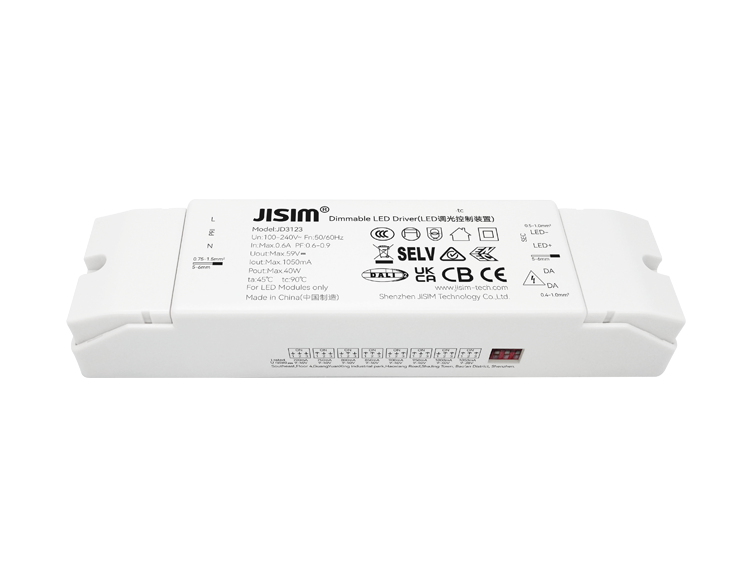

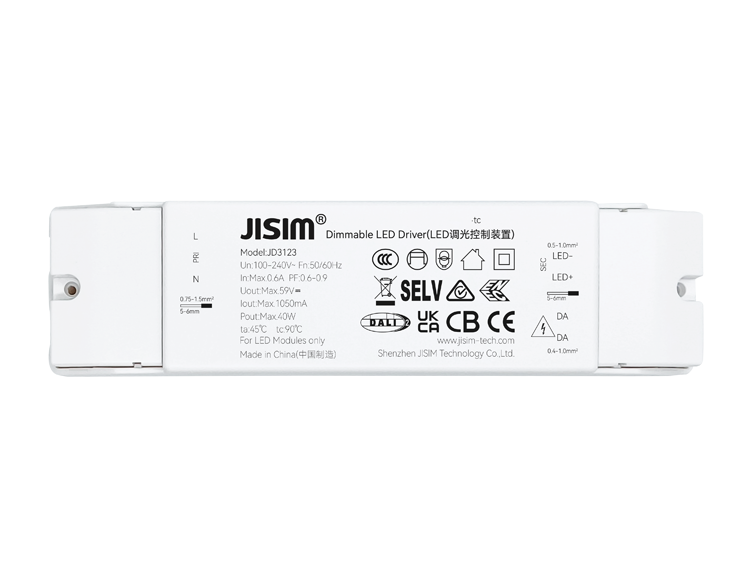

JD3123 DALI DT6 40W 700-1050mA 220-240VAC DIP

Compact design, suitable for small cutout downlights and linear lights
Dimmable constant current driver, 100-240V~ input, high power factor, high efficiency and long lifespan
Supports DALI-2 and PushDim
Two-stage architecture design, built-in MCU, unique dimming algorithm, flicker-free and noise-free
Smooth high-performance dimming, compatible with more DALI masters
Dimming range 0.1...100%, with built-in soft start function
Output current selectable via DIP switch
Output short-circuit, open-circuit and overload protection
Dimming port isolated, output complies with SELV standard
Input and output screw-locking terminals
Ambient temperature -20 to +45°C, maximum case temperature 90°C
Suitable for Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Model Number

JD3123
Rated Voltage

220-240Vac
Output Current

700-1050mA
Product Dimension

165*42*30mm
Dimming Mode

DALI DT6
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight: 182.2±10g/pcs, Small Pack: 200.5g/pcs, Inner Pack: 6.32kg/carton, Outer Pack: 26.1kg/carton
Packaging

Inner Pack: 30pcs/carton, Outer Pack: 120pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CV
Output Power

Max.40W
Output Voltage

9-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output: 3750Vac, 5mA, 60s
Insulation Resistance

Input to Output: 3750Vac, 5mA, 60s
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
