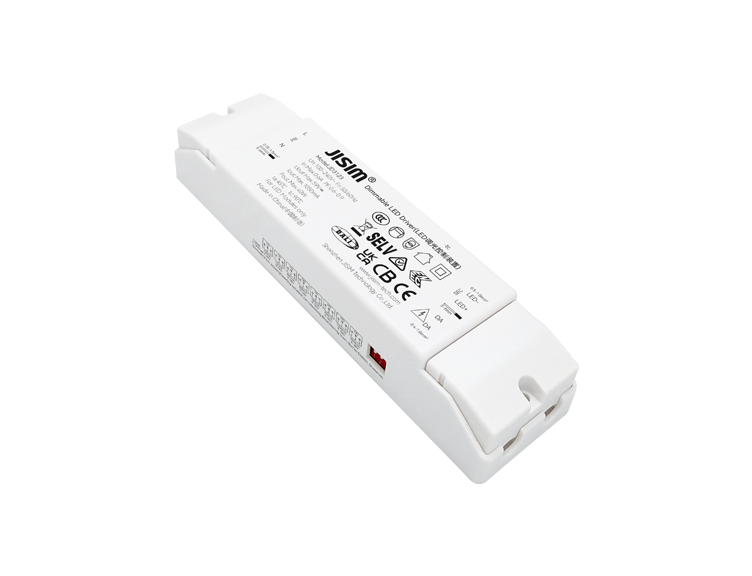

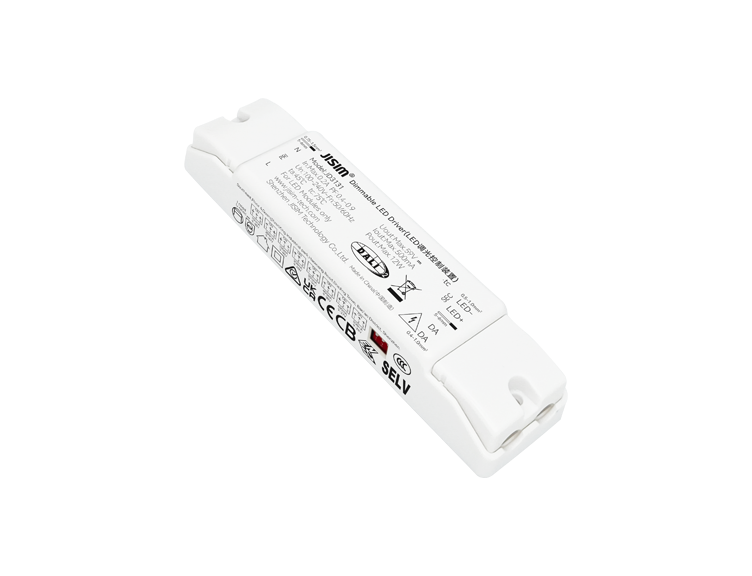

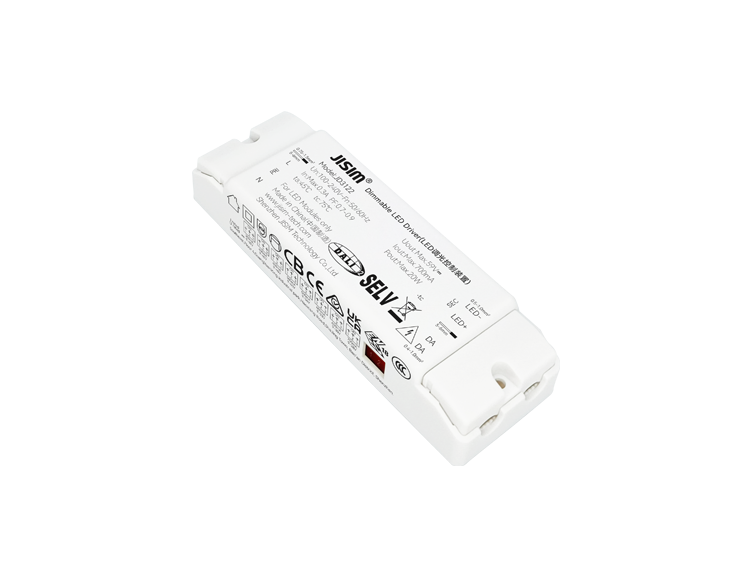

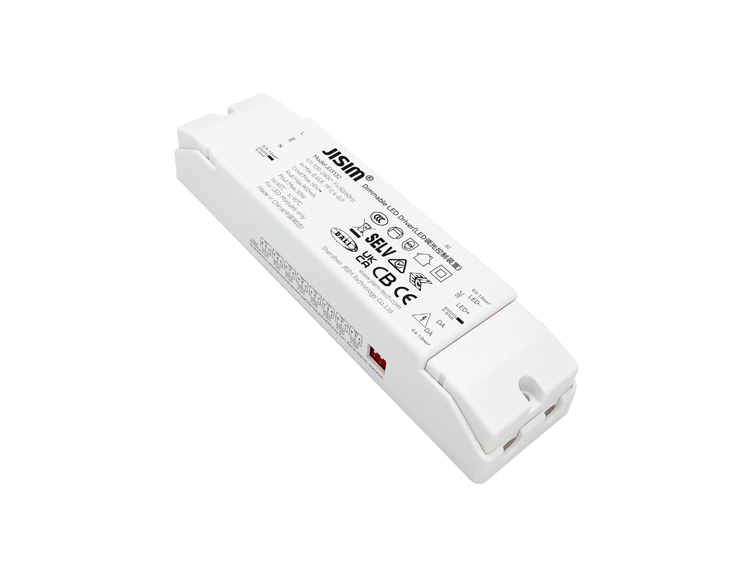

DALI-2+PushDim DT6 Independent CC Series 2
HomeProductDALI-2

DALI-2+PushDim DT6 Independent CC Series 2

Series Features

  • Compact design, suitable for small cutout downlights, spotlights and linear lights
  • Dimmable CC driver, 100-240V~ input, high power factor, high efficiency, long service life
  • Supports DALI-2 + Push dimming
  • Two-stage architecture with built-in MCU, proprietary dimming algorithm, flicker-free and noise-free
  • Smooth high-performance dimming, compatible with more DALI masters
  • Dimming range 0.1…100%, built-in soft start function
  • Output current selectable via DIP switch
  • Output short-circuit, open-circuit and overload protection
  • Isolated dimming port, output complies with SELV standard
  • Screw-locking terminals for input and output
  • Ambient temperature -20～+45℃, maximum case temperature 75/80/90℃
  • Suitable for Class I / II / III luminaires
  • Protection Class II
Consult Now Buy Now
  • Dimming Mode
    DALI DT6
  • Dimming Range
    1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Class
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight: 67.9±10g/pcs, Small Pack: 79.4g/pcs, Inner Pack: 6.65kg/carton, Outer Pack: 27.5kg/carton (See datasheet for details)
  • Package
    Inner Pack: 80pcs/48pcs/30pcs per carton, Outer Pack: 320pcs/192pcs/120pcs per carton
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Max Case Temperature
    75/80/90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standard
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Lifetime
    >50000h@ta<45℃
