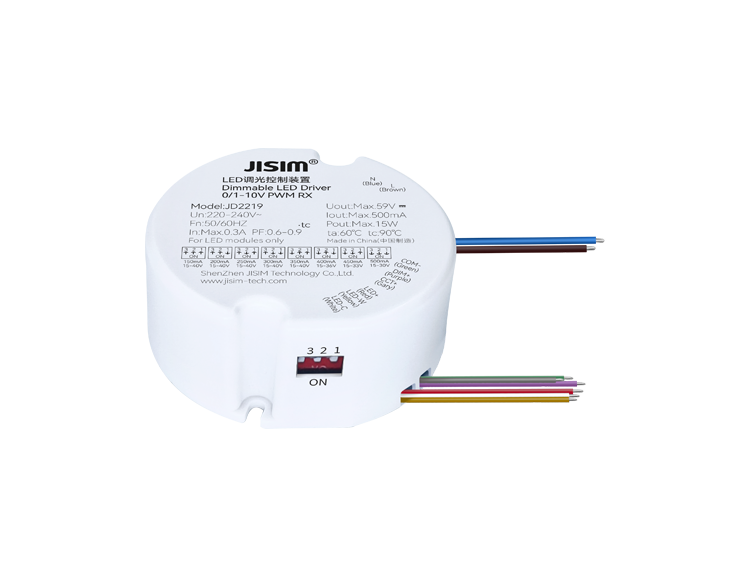

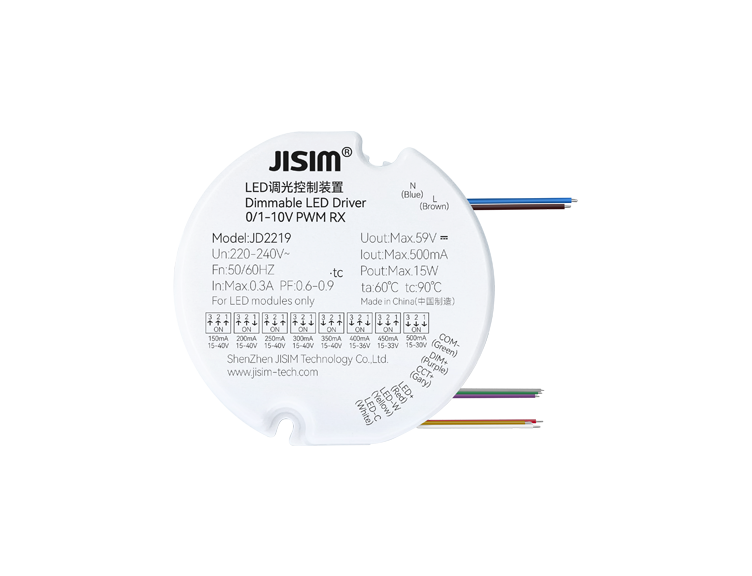

JD2219 0/1-10V 15W 100-500mA 220-240VAC DIP

Compact design, suitable for surface‑mount downlights, spotlights, track lights and wall lights
Built‑in driver application
Dimmable CCT tunable CC driver, high power factor, high efficiency and long service life
Supports 0‑10V, 1‑10V, 10V PWM and 100K potentiometer dimming
Flicker‑free and noise‑free
Smooth high‑performance dimming, compatible with more dimmers
Dimming range 0.3…100%, CCT range: Warmest…Coolest, built‑in soft‑start function
Select output current via DIP switch
Output short‑circuit, open‑circuit and overload protection
Dimming port isolated, output complies with SELV standard
Lead‑type for input and output terminals
Ambient temperature: -20～+60℃, maximum case temperature 90℃
Internally potted and sealed, providing enhanced protection for luminaires requiring water and moisture resistance
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD2219
Rated Voltage

220-240Vac
Output Current

150-500mA
Product Dimension

55*53*23mm
Dimming Mode

0-10V PWM RX
Dimming Range

0.3-100%
Protection

Output short‑circuit, open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:88.9±10g/pcs, Small Pack:99g/pcs, Inner Pack:6.64kg/carton, Outer Pack:27.4kg/carton
Packaging

Inner Pack:64pcs/carton, Outer Pack:256pcs/carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

CC
Output Power

Max.15W
Output Voltage

15-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s,Input to Signal Interface:1500Vac,5mA,60s,Output to Signal Interface:1500Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
