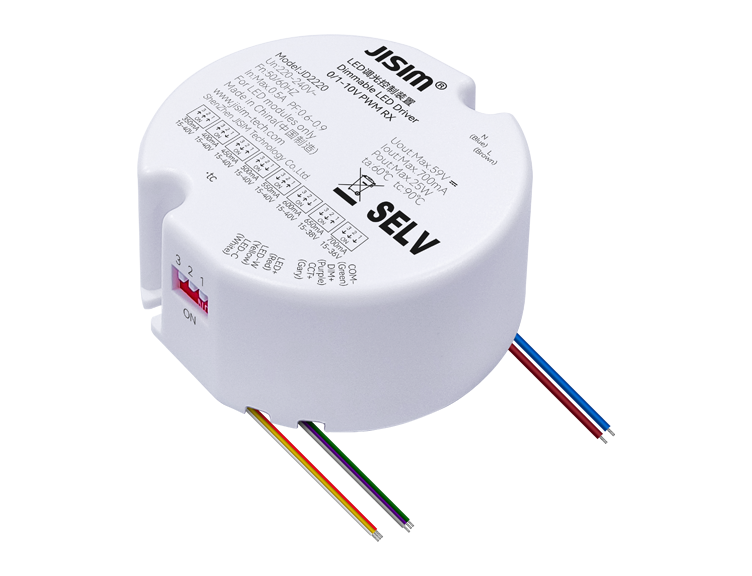

0/1-10V PWM RX Built-in CC CCT Tunable Series

Compact design, suitable for surface mount downlights, spotlights, track lights and wall lights
Built-in driver application
Dimmable CCT tunable CC driver, high power factor, high efficiency and long service life
Supports 0-10V, 1-10V, 10V PWM and 100K potentiometer dimming
Flicker-free and noise-free
Smooth high-performance dimming, compatible with more dimmers
Dimming range 0.3…100%, CCT range: Warmest…Coolest, built-in soft-start function
Select output current via DIP switch
Output short-circuit, open-circuit and overload protection
Isolated dimming port, output complies with SELV standard
Lead type for input and output terminals
Ambient temperature: -20～+60℃, maximum case temperature 90℃
Internally potted and sealed, providing enhanced protection for luminaires requiring waterproof and moisture-proof performance
Suitable for Class Ⅰ, Ⅱ, Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Dimming Mode

0-10V PWM RX
Dimming Range

0.3-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 88.9±10g/pcs, Small Pack: 99g/pcs, Inner Pack: 6.64kg/carton, Outer Pack: 27.4kg/carton (See datasheet for details)
Package

Inner Pack:64pcs/52pcs/carton, Outer Pack:256pcs/208pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
