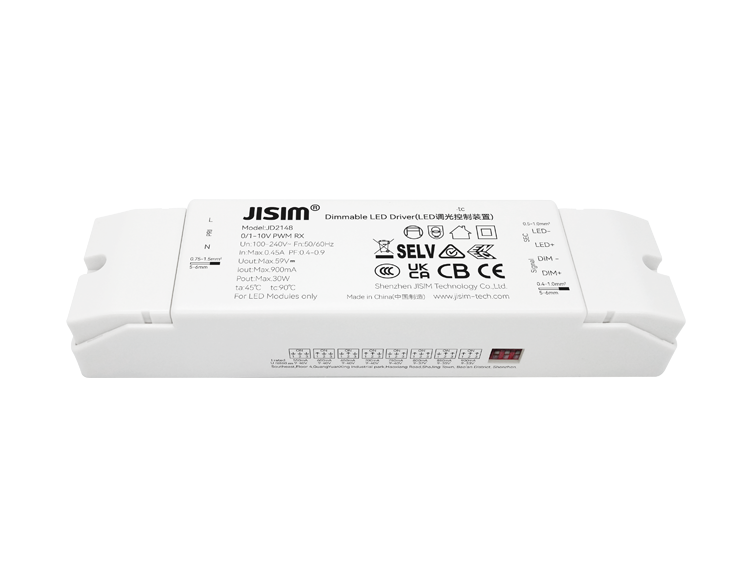

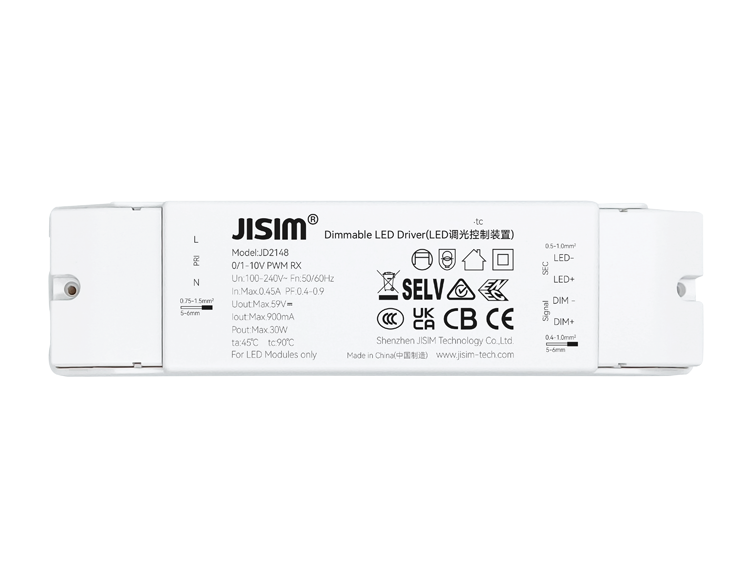

JD2148 0/1-10V 30W 550-900mA 100-240VAC DIP

Compact design,suitable for small cut‑out downlights,spotlights,linear lights
Dimmable constant‑current driver,100‑240V~ input,high power factor,high efficiency,long service life
Supports 0‑10V,1‑10V,10V PWM,100K potentiometer dimming
Two‑pole architecture design,built‑in MCU,unique dimming algorithm,flicker‑free,noise‑free
Smooth high‑performance dimming,compatible with more dimmers
Dimming range 0.1…100%,with soft‑start function
Output current selectable via dip‑switch
Output short‑circuit,open‑circuit and overload protection
Isolated dimming port,output complies with safety extra‑low voltage standard
Screw‑locking terminals for input and output
Ambient temperature ‑20～+45℃,max.case temperature 90℃
Suitable for class Ⅰ,Ⅱ,Ⅲ luminaires
Protection class Ⅱ

Consult Now Buy Now

Model Number

JD2148
Rated Voltage

100-240Vac
Output Current

550-900mA
Product Dimension

165*42*30mm
Dimming Mode

0-10V PWM RX
Dimming Range

0.1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:194.3±10g/pcs,Small Pack:211.2g/pcs,Inner Pack:6.64kg/carton,Outer Pack:27.4kg/carton
Packaging

Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

恒流
Output Power

Max.30W
Output Voltage

9-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
