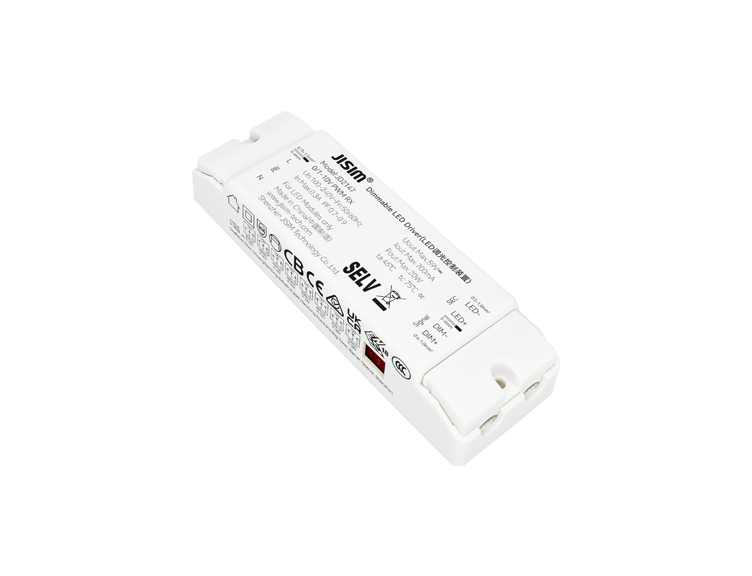

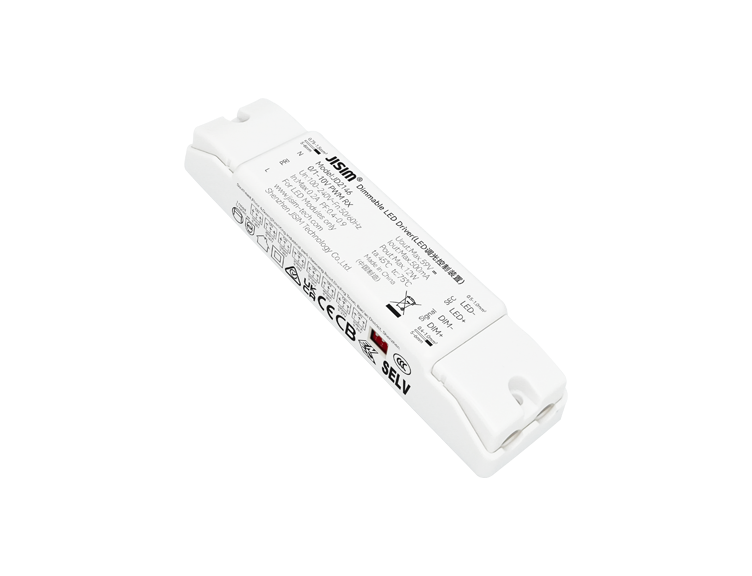

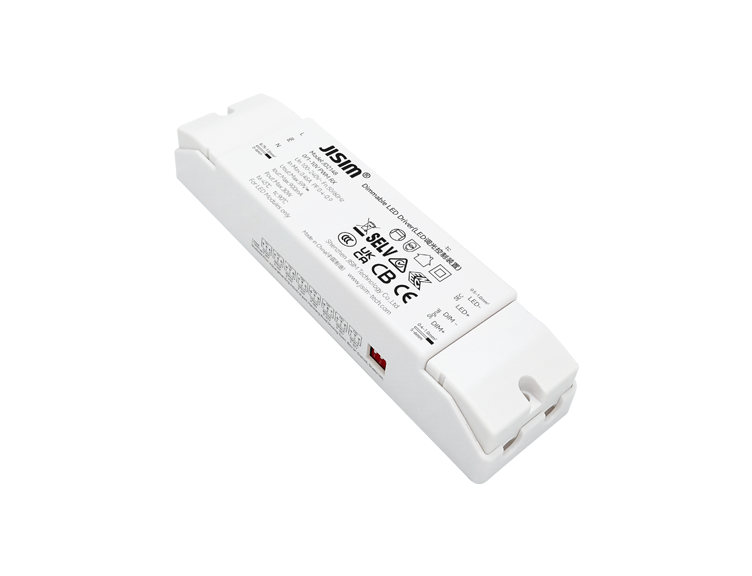

0/1-10V PWM RX Independent CC Series 3

Series Features

  • Compact design, suitable for small cutout downlights & spotlights, linear lights
  • Dimmable CC driver, 100-240V~ input, high power factor, high efficiency and long service life
  • Compatible with 0-10V,1-10V,10V PWM and 100K potentiometer dimming
  • Bipolar architecture design, built-in MCU, unique dimming algorithm, flicker-free and noise-free
  • Smooth high-performance dimming, compatible with more dimmers
  • Dimming range 0.1…100%, built-in soft start function
  • Select output current via DIP switch
  • Output short-circuit, open-circuit and overload protection
  • Isolated dimming port, output complies with safety extra-low voltage standard
  • Screw-locked terminals for input and output
  • Ambient temperature -20～+45℃, maximum case temperature 75/80/90℃
  • Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Class
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight: 68.2±10g/pcs, Small Pack: 78.9g/pcs, Inner Pack: 6.61kg/carton, Outer Pack: 27.3kg/carton (See datasheet for details)
  • Package
    Inner Pack:80pcs/48pcs/30pcs/carton, Outer Pack:320pcs/192pcs/120pcs/carton
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Max Case Temperature
    75/80/90℃
  • Withstand Voltage
    Input to output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to output:100MQ/500VDC/25°C/70%RH
  • Safety Standard
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Lifetime
    >50000h@ta<45℃
JD2136_CN
JD2136_CN
JD2136_EN
JD2136_EN
JD2119_CN
JD2119_CN
JD2119_EN
JD2119_EN
JD2146_CN
JD2146_CN
JD2146_EN
JD2146_EN
JD2147_CN
JD2147_CN
JD2147_EN
JD2147_EN
JD2148_CN
JD2148_CN
JD2148_EN
JD2148_EN
JD2149_CN
JD2149_CN
JD2149_EN
JD2149_EN
