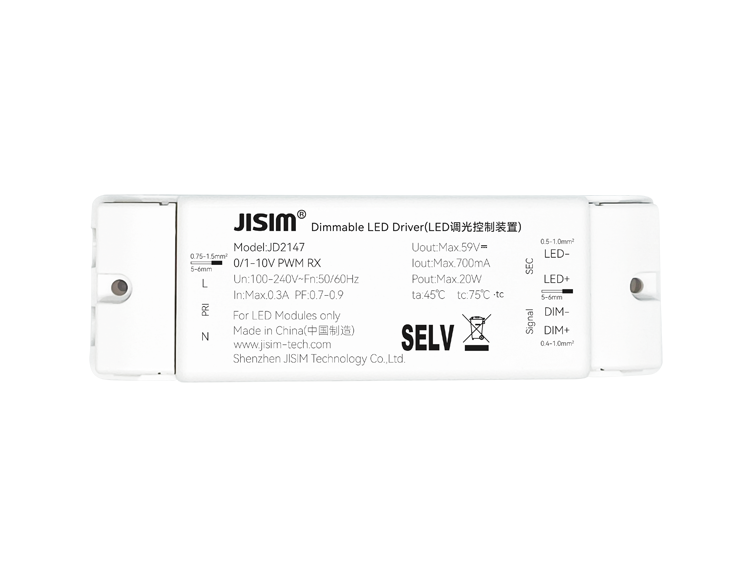

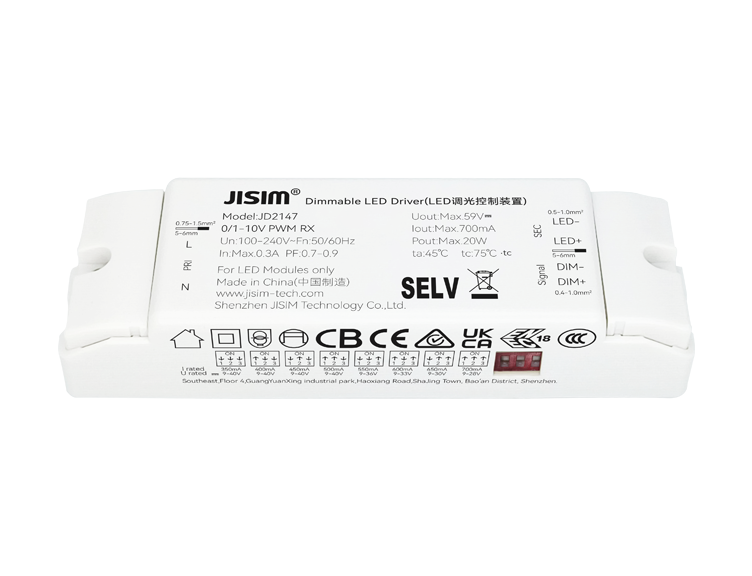

JD2147 0/1-10V 20W 350-700mA 100-240VAC DIP

Compact design,suitable for small cut‑out downlights and spotlights,linear lights
Dimmable constant‑current driver,100‑240V~ input,high power factor,high efficiency,long service life
Compatible with 0‑10V,1‑10V,10V PWM,100K potentiometer dimming
Dual‑stage architecture,built‑in MCU,unique dimming algorithm,flicker‑free,noise‑free
Smooth high‑performance dimming,compatible with more dimmers
Dimming range 0.1…100%,with soft‑start function
Dip‑switch selectable output current
Output short‑circuit,open‑circuit and overload protection
Dimming port isolation,output complies with safety extra‑low‑voltage standard
Screw‑lock input and output terminals
Ambient temperature ‑20～+45℃,maximum case temperature 75℃
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD2147
Rated Voltage

100-240Vac
Output Current

350-700mA
Product Dimension

120*38*23mm
Dimming Mode

0-10V PWM RX
Dimming Range

0.1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:67.9±10g/pcs,Small Pack:79.4g/pcs,Inner Pack:6.65kg/carton,Outer Pack:27.5kg/carton
Packaging

Inner Pack:48pcs/carton,Outer Pack:192pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.20W
Output Voltage

9-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
