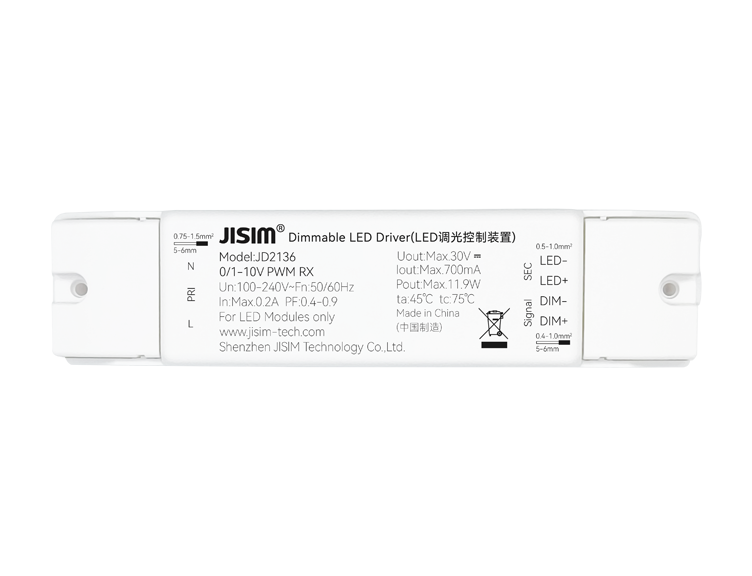

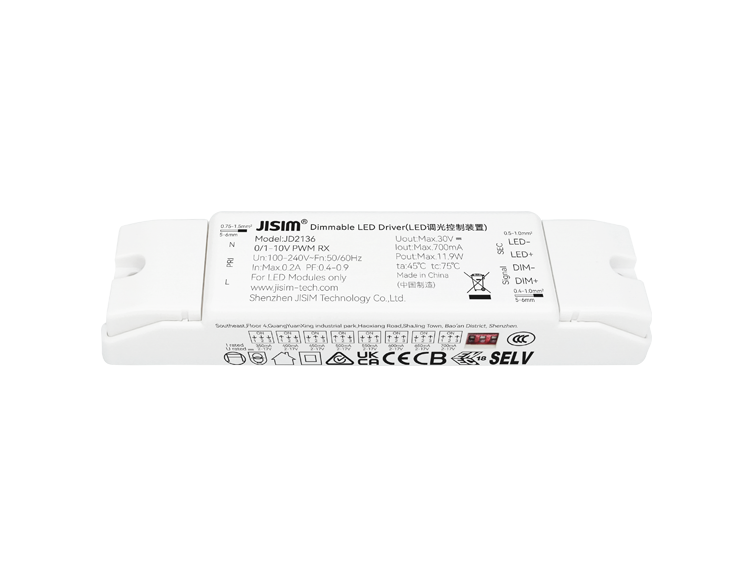

JD2136 0/1-10V 11.9W 350-700mA 100-240VAC DIP

Compact design, suitable for small cut‑out downlight&spotlight and linear lights
Dimmable CC driver, 100‑240V~ input, high power factor, high efficiency and long service life
Supports 0‑10V, 1‑10V, 10V PWM and 100K potentiometer dimming
Bipolar architecture design, built‑in MCU, exclusive dimming algorithm, flicker‑free and noise‑free
Smooth high‑performance dimming, compatible with more dimmers
Dimming range 0.1…100%, built‑in soft‑start function
Select output current via DIP‑switch
Output short‑circuit, open‑circuit and overload protection
Dimming port isolated, output complies with SELV standard
Input and output screw‑lock terminal blocks
Ambient temperature: -20～+45℃, maximum enclosure temperature 75℃
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD2136
Rated Voltage

100-240Vac
Output Current

350-700mA
Product Dimension

126*30*20mm
Dimming Mode

0-10V PWM RX
Dimming Range

0.1-100%
Protection

Output short‑circuit, open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:67.9±10g/pcs,Small Pack:79.4g/pcs,Inner Pack:6.65kg/carton,Outer Pack:27.5kg/carton
Packaging

Inner Pack:80pcs/carton,Outer Pack:320pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.11.9W
Output Voltage

2-11V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
