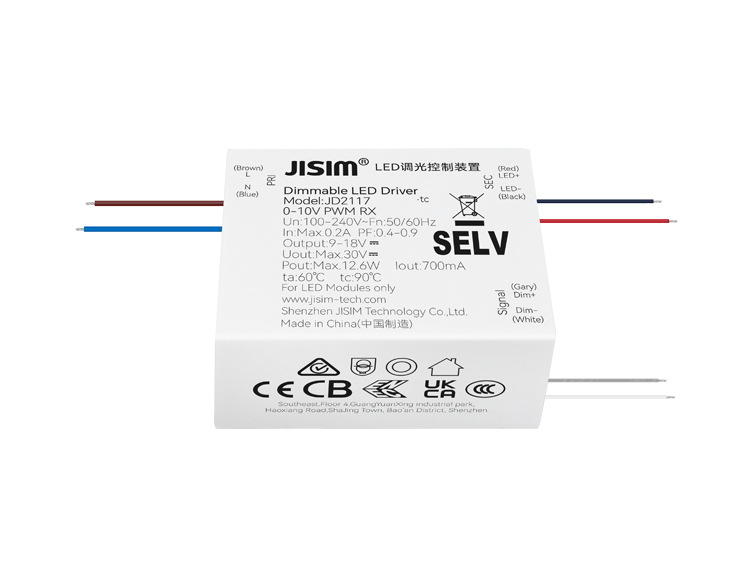

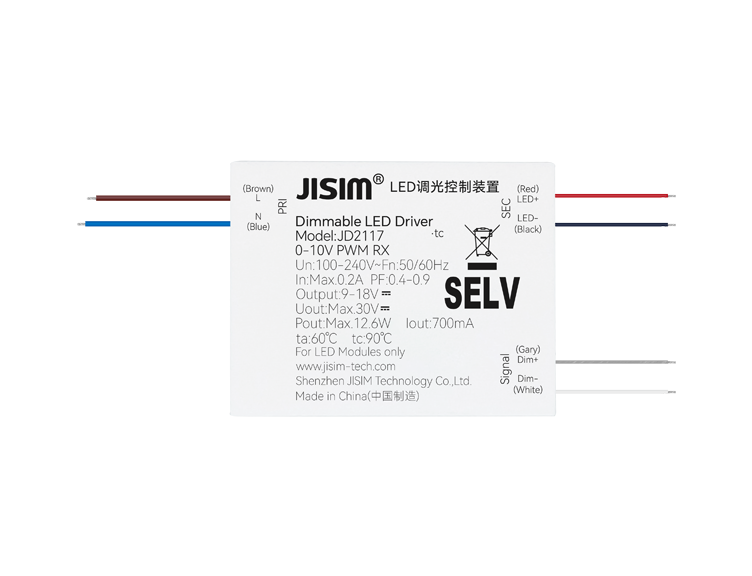

JD2117 0/1-10V 12.6W 350-700mA 220-240VAC DIP

Compact design,suitable for surface‑mount downlight,spotlight,track light,wall light
Built‑in driver application
Dimmable CC driver,high power factor,high efficiency,long service life
Compatible with 0‑10V,1‑10V,10V PWM,100K potentiometer dimming
Flicker‑free and noise‑free
Smooth high‑performance dimming,compatible with more dimmers
Dimming range 1…100%
Output short‑circuit,open‑circuit and overload protection
Complies with safety extra‑low‑voltage standard
Lead‑type input and output terminals
Ambient temperature ‑20～+60℃,maximum enclosure temperature 90℃
Internal potting sealing of product,enhanced protection for luminaires requiring water and moisture resistance
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD2117
Rated Voltage

220-240Vac
Output Current

350-700mA
Product Dimension

53*42*23mm
Dimming Mode

0-10V PWM RX
Dimming Range

1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:81.2±10g/pcs,Small Pack:91.4g/pcs,Inner Pack:6.15kg/carton,Outer Pack:25.5kg/carton
Packaging

Inner Pack:64pcs/carton,Outer Pack:256pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.12.6W
Output Voltage

9-18V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Built-in
Warranty

5 years
