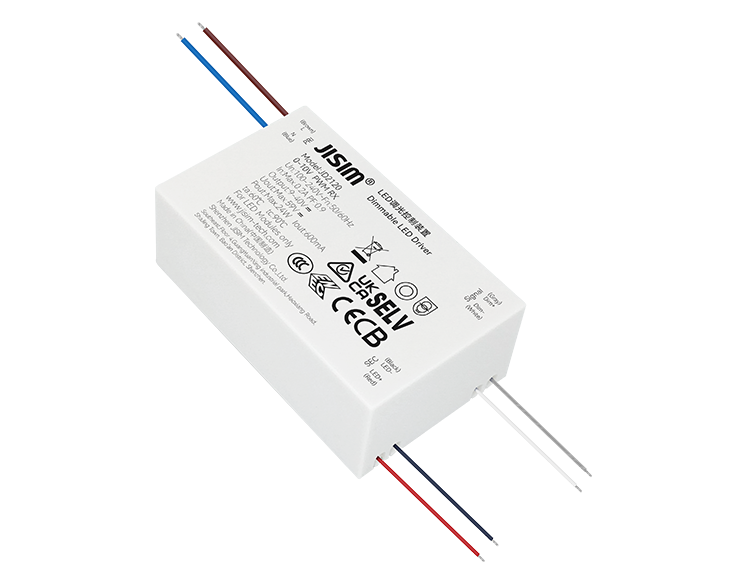

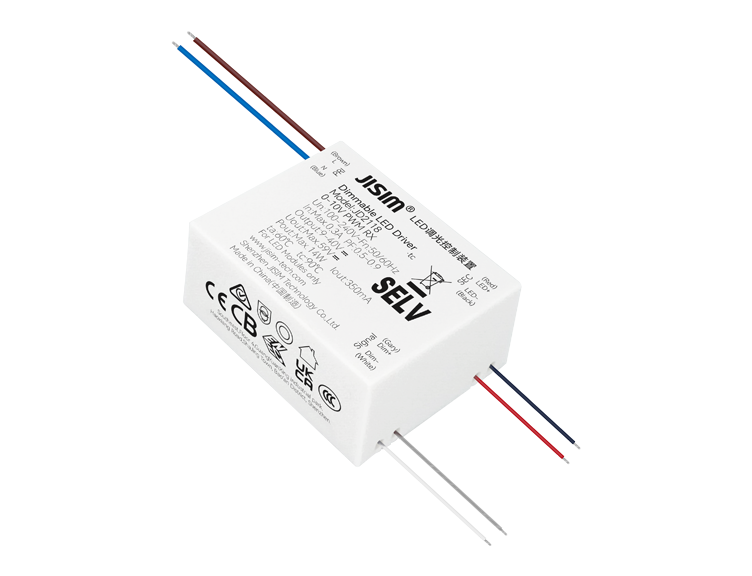

0/1-10V PWM RX Built-in CC Series 3

Compact design, suitable for surface mount downlights, spotlights, track lights and wall lamps
Built-in driver application
Dimmable CC driver, high PF, high efficiency and long service life
Supports 0-10V,1-10V,10V PWM and 100K potentiometer dimming
Flicker-free and noise-free
Smooth high-performance dimming, compatible with more dimmers
Dimming range 1…100%
Output short-circuit, open-circuit and overload protection
Compliant with SELV standard
Lead type for input and output terminals
Ambient temperature: -20～+60℃, maximum case temperature 90℃
Internally potted and sealed, provides enhanced protection for lamps requiring waterproof and moisture-proof functions
Suitable for Class Ⅰ, Ⅱ, Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Dimming Mode

0-10V PWM RX
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight:81.2±10g/pcs, Small Pack:91.4g/pcs, Inner Pack:6.65kg/carton, Outer Pack:27.5kg/carton (See datasheet for details)
Package

Inner Pack:64pcs/40pcs/carton, Outer Pack:256pcs/160pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input-to-Output:3750Vac,5mA,60s
Insulation Resistance

Input-to-Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃

JD2116_CN

JD2116_EN

JD2117_CN

JD2117_EN

JD2118_CN

JD2118_EN

JD2120_CN

JD2120_EN

JD2121_CN

JD2121_EN
