JD2106 0/1-10V 34W 650-850mA 220-240VAC DIP
HomeProduct0/1-10V PWM RX

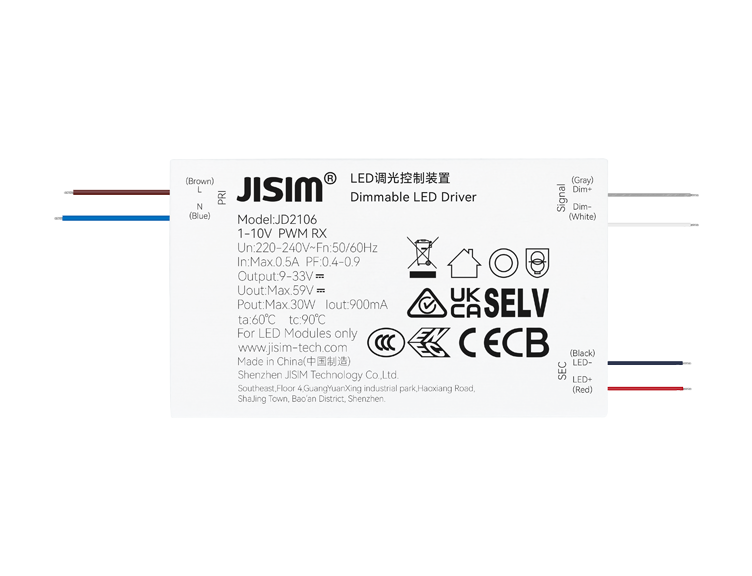

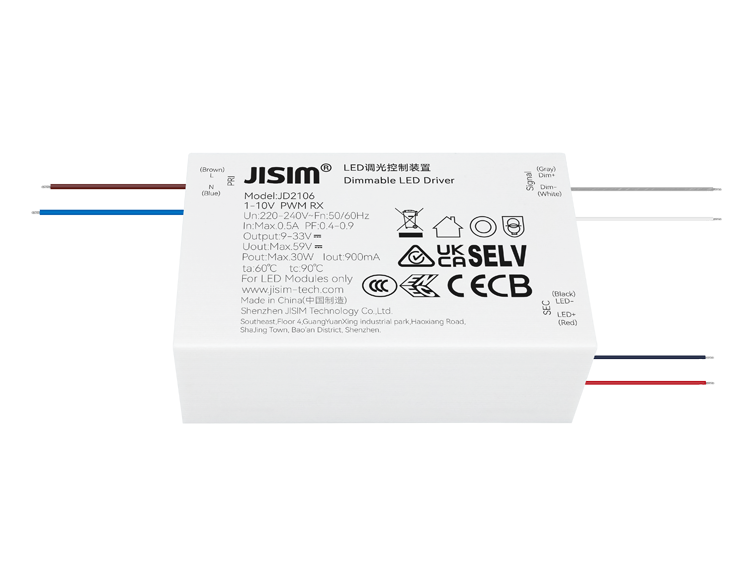

JD2106 0/1-10V 34W 650-850mA 220-240VAC DIP

Product Features

  • 紧凑型设计，适用于明装筒灯、射灯、轨道灯、壁灯
  • 内置式驱动运用
  • 可调光恒流驱动，高功率因数、高效率、长寿命
  • 适用于0-10V、1-10V、10V PWM、100K电位器调光
  • 无频闪，无噪声
  • 平滑高性能调光，匹配更多调光器
  • 调光范围0.1…100%，自带缓启动功能
  • 输出短路、开路、过载保护
  • 符合安全特低电压标准
  • 输入和输出端引线型
  • 环境温度-20～+60℃，最大外壳温度90℃
  • 产品内部灌胶密封，可对有防水防潮要求的灯具加强保护
  • 适用于ⅠⅡⅢ类灯具
  • 保护等级Ⅱ
Consult Now Buy Now
  • Model Number
    JD2106
  • Rated Voltage
    220-240Vac
  • Output Current
    650-850mA
  • Product Dimension
    73*43.5*26.5mm
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    0.1-100%
  • Protection
    输出短路、开路、过载保护
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    净重：135.6±10g/pcs, 小包: 148.8g/pcs, 中包:6.2kg/箱, 大包: 25.9kg/箱
  • Packaging
    中包：40pcs/箱，大包:160pcs/箱
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    恒流
  • Output Power
    Max.34W
  • Output Voltage
    9-42V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    输入对输出:3750Vac,5mA,60s
  • Insulation Resistance
    输入对输出:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    内置式
  • Warranty
    5年
