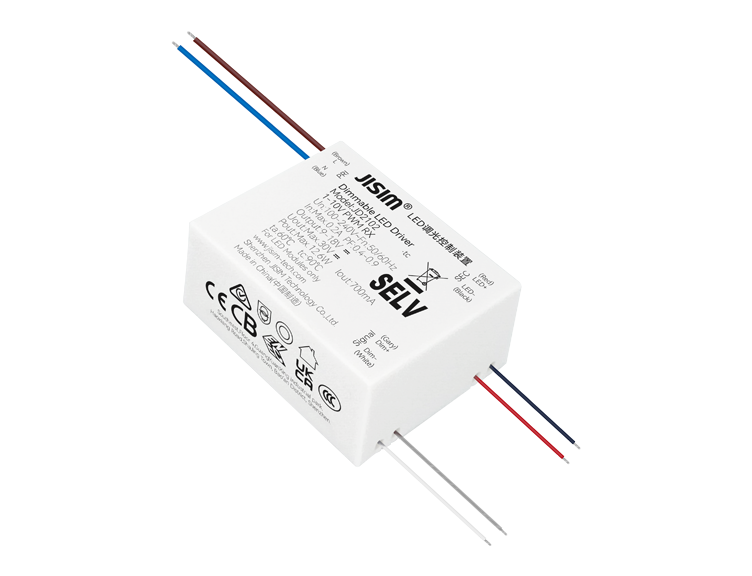

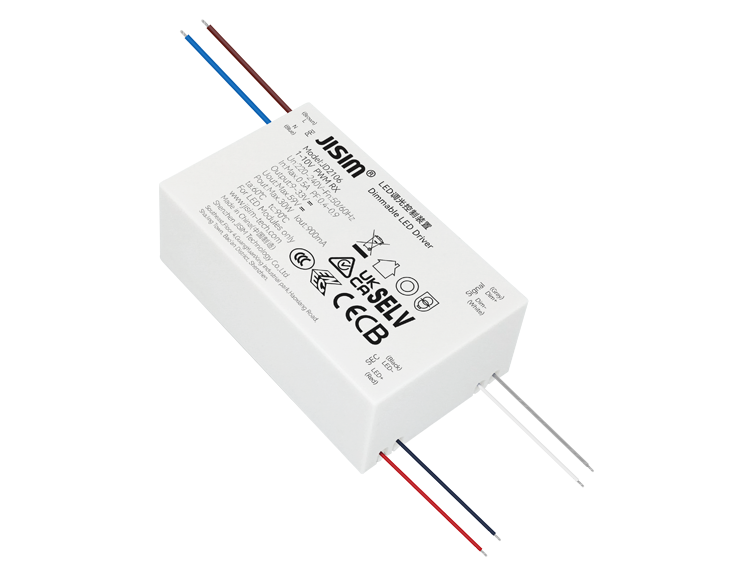

0/1-10V PWM RX Built-in CC Series 2

0/1-10V PWM RX Built-in CC Series 2

Series Features

Compact design, suitable for surface mounted downlights, spotlights, track lights and wall lights.
Built-in driver application.
Dimmable CC driver, high power factor, high efficiency, long lifespan.
Compatible with 0-10V, 1-10V, 10V PWM and 100K potentiometer dimming.
Flicker-free, noise-free.
Smooth high-performance dimming, compatible with more dimmers.
Dimming range 0.1...100%, with built-in soft start function.
Output short circuit, open circuit and overload protection.
Complies with SELV (Safety Extra Low Voltage) standard.
Input and output lead wire type.
Ambient temperature -20 to +60°C, maximum enclosure temperature 90°C.
Internally potted and sealed, enhanced protection for luminaires with waterproof and moisture-proof requirements.
Suitable for Class I, II and III luminaires.
Protection Class II.

Consult Now Buy Now

Model

Output Power

Rated Voltage

Output Voltage

Output Current

PF

Size
JD2101 0/1-10V 7.7W 350-700mA 220-240VAC DIP

Max.7.7W

220-240Vac

2-11V

350-700mA

>0.9

53*42*23mm
JD2102 0/1-10V 12.6W 350-700mA 220-240VAC DIP

Max.12.6W

220-240Vac

9-18V

350-700mA

>0.9

53*42*23mm
JD2103 0/1-10V 14.7W 100-350mA 220-240VAC DIP

Max.14.7

220-240Vac

9-42V

100-350mA

>0.9

53*42*23mm
JD2105 0/1-10V 24W 400-600mA 220-240VAC DIP

Max.24W

220-240Vac

9-42V

400-600mA

>0.9

73*43.5*26.5mm
JD2106 0/1-10V 34W 650-850mA 220-240VAC DIP

Max.34W

220-240Vac

9-42V

650-850mA

>0.9

73*43.5*26.5mm

Dimming Mode

Triac
Dimming Range

1-100%
Protection

Output short circuit, open circuit and overload protection.
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 67.9±10g/pcs, Small Pack: 79.4g/pcs, Middle Carton: 6.65kg/carton, Master Carton: 27.5kg/carton (See specification sheet for details)
Package

Middle Carton: 64/40 pcs/carton, Master Carton: 256/160 pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
