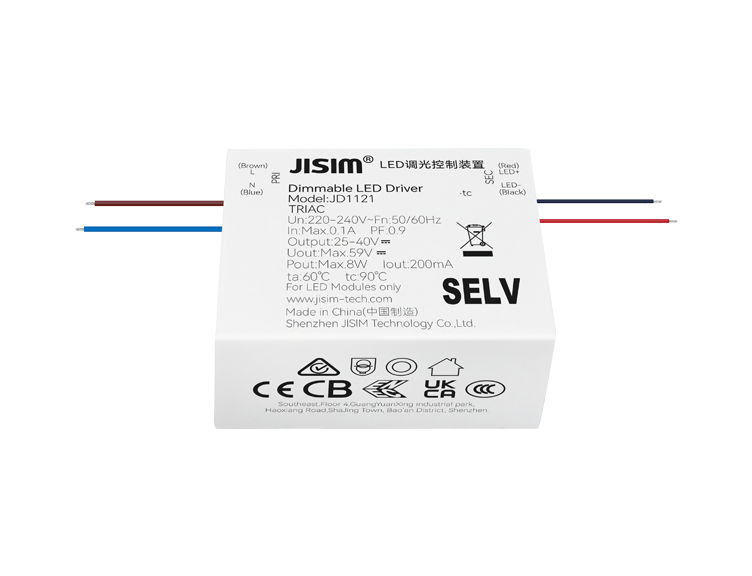

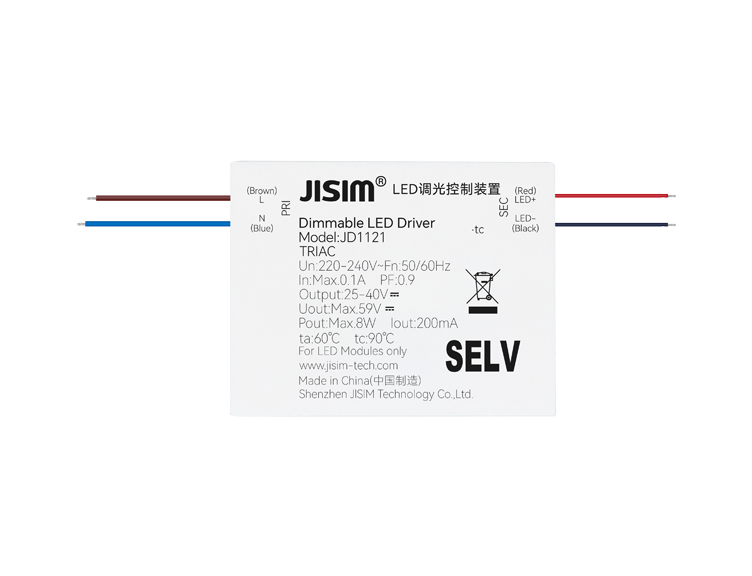

JD1121 Triac 14W 200-350mA 220-240VAC DIP

Compact design, suitable for surface‑mount downlights, spotlights, track lights and wall lights
Built‑in driver application
Dimmable CC driver, high power factor, high efficiency and long service life
Compatible with Triac leading‑edge or trailing‑edge phase‑cut dimmers
Flicker‑free and noise‑free
Smooth high‑performance dimming, compatible with more dimmers
Dimming range 1…100%
Output open‑circuit and overload protection
Complies with SELV standard
Lead‑type input and output terminals
Ambient temperature: -20～+60℃, maximum enclosure temperature 90℃
Internal potting sealing, enhanced protection for lamps requiring waterproof and moisture‑proof performance
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD1121
Rated Voltage

220-240Vac
Output Current

200-350mA
Product Dimension

53*42*23mm
Dimming Mode

内置式
Dimming Range

1-100%
Protection

Output short‑circuit, open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:67.8±10g/pcs,Small Pack:77.9g/pcs,Inner Pack:5.3kg/carton,Outer Pack:22.04kg/carton(See datasheet for details)
Packaging

Inner Pack:64pcs/carton,Outer Pack:256pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.14W
Output Voltage

25-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Built‑in
Warranty

5 years
