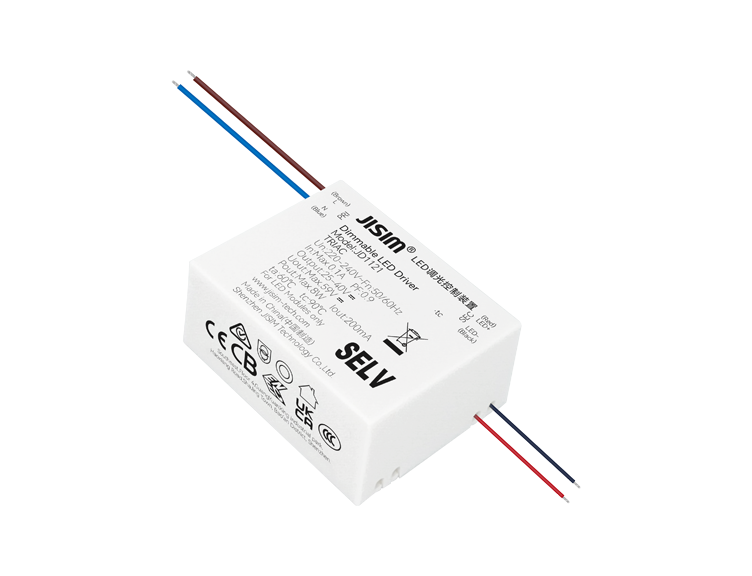

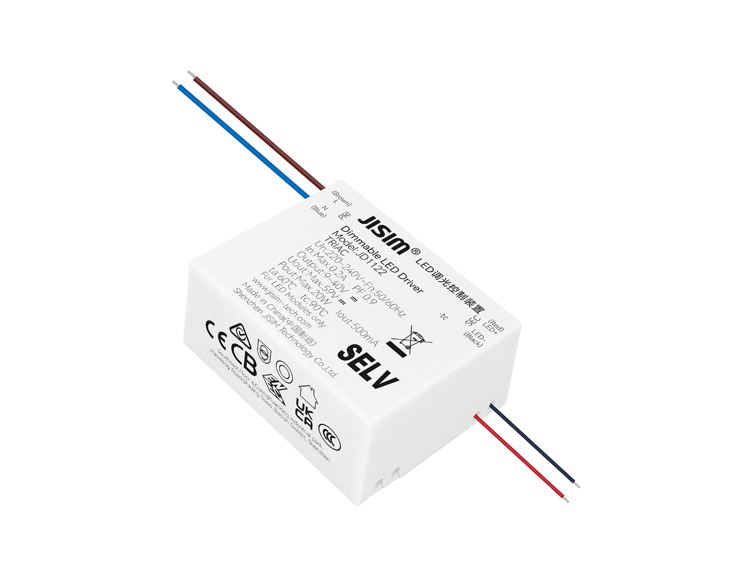

Triac Built-in CC Series 3

Compact design suitable for surface mounted downlights, spotlights, track lights and wall lamps
Adopt built-in driver installation
Dimmable constant current driver with high power factor, high efficiency and long service life
Compatible with Triac leading-edge and trailing-edge phase-cut dimmers
Flicker-free and noise-free
Smooth high-performance dimming compatible with various dimmers
Dimming range: 1%–100%
Output open-circuit and overload protection
Compliant with safety extra-low voltage standards
Leaded wiring for input and output terminals
Ambient temperature: -20℃~+60℃; maximum case temperature: 90℃
Filled and sealed inside the product to enhance protection for lamps requiring waterproof and moistureproof performance
Applicable to Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Dimming Mode

Triac
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 67.8±10g/pcs, small package: 77.9g/pcs, medium carton: 5.3kg/carton, large carton: 22.04kg/carton (refer to specification for details)
Package

Medium carton: 64pcs/carton, large carton: 256pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
