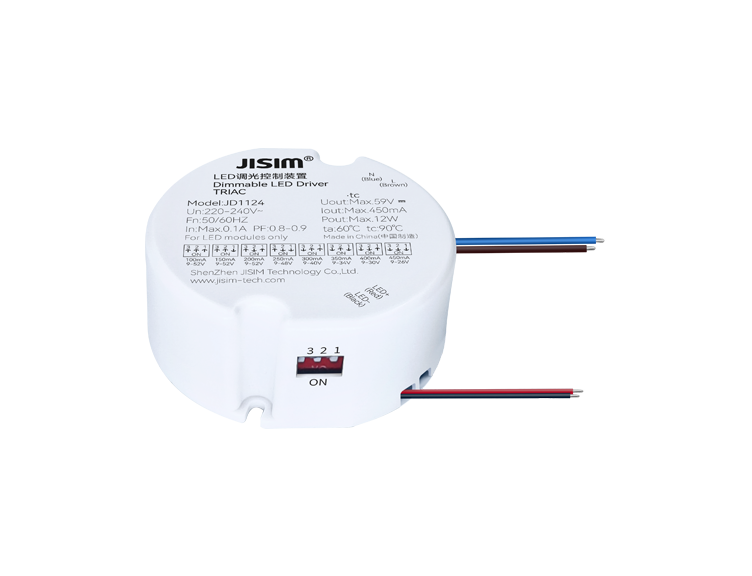

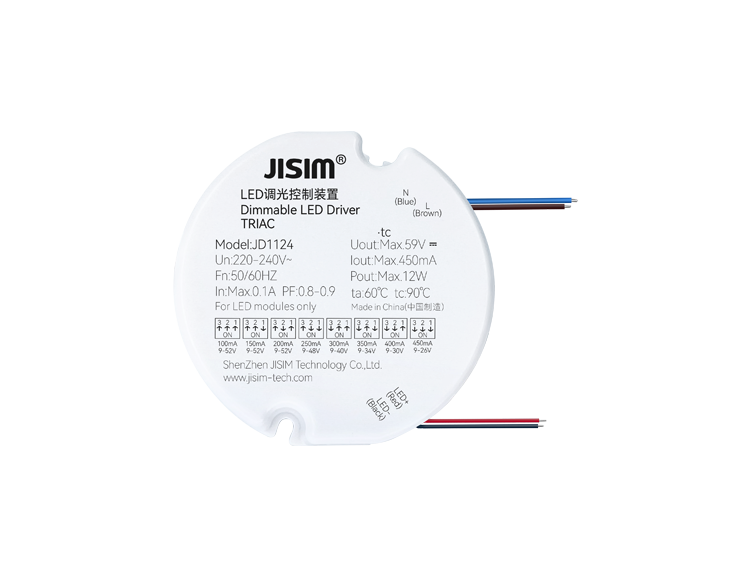

JD1124 Triac 12W 100-450mA 220-240VAC DIP
HomeProductTriac

JD1124 Triac 12W 100-450mA 220-240VAC DIP

Product Features

  • Compact design, suitable for surface‑mount downlights, spotlights, track lights and wall lights
  • Built‑in driver application
  • Dimmable CC driver, high power factor, high efficiency and long service life
  • Compatible with Triac leading‑edge or trailing‑edge phase‑cut dimmers
  • Flicker‑free and noise‑free
  • Smooth high‑performance dimming, compatible with more dimmers
  • Dimming range 1…100%
  • Select output current via DIP switch
  • Output short‑circuit, open‑circuit and overload protection
  • Complies with SELV standard
  • Lead‑type input and output terminals
  • Ambient temperature: -20～+60℃, maximum enclosure temperature 90℃
  • Internal potting sealing, enhanced protection for lamps requiring waterproof and moisture‑proof performance
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD1124
  • Rated Voltage
    220-240Vac
  • Output Current
    100-450mA
  • Product Dimension
    55*53*23mm
  • Dimming Mode
    Triac
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit, open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:88.4±10g/pcs,Small Pack:98.5g/pcs,Inner Pack:6.6kg/carton,Outer Pack:27.3kg/carton
  • Packaging
    Inner Pack:64pcs/carton,Outer Pack:256pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.12W
  • Output Voltage
    9-52V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Built‑in
  • Warranty
    5 years
