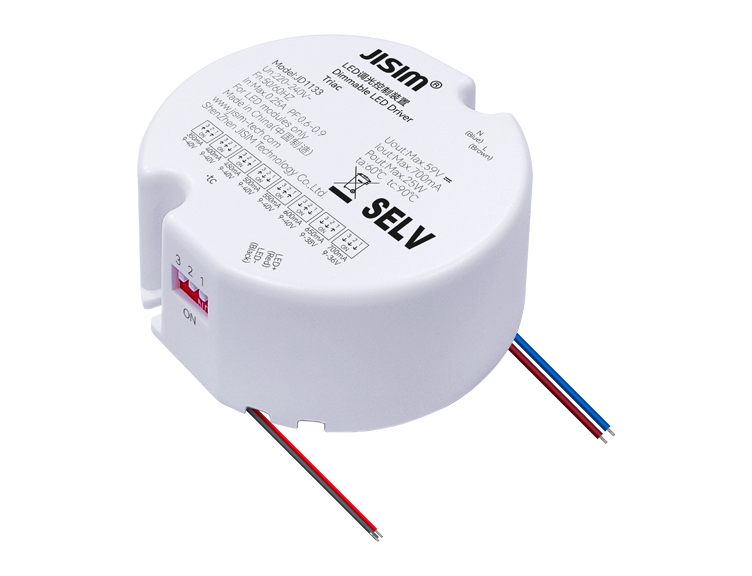

Triac Built-in CC Series 2

Compact design, suitable for surface mounted downlights, spotlights, track lights and wall lights
Built-in driver application
Dimmable CC driver, high power factor, high efficiency and long service life
Compatible with Triac leading edge or trailing edge phase-cut dimmers
Flicker-free and noise-free
Smooth high-performance dimming, compatible with more dimmers
Dimming range 1…100%
Select output current via DIP switch
Output short-circuit, open-circuit and overload protection
Comply with safety extra-low voltage standard
Lead type for input and output terminals
Ambient temperature -20～+60℃, maximum case temperature 90℃
Internal potting sealed, providing enhanced protection for lamps requiring waterproof and moisture-proof performance
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Dimming Mode

Triac
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 88.4±10g/pcs, Small Pack: 98.5g/pcs, Inner Pack: 6.6kg/carton, Outer Pack: 27.3kg/carton
Package

Inner Pack:64pcs/52pcs/carton, Outer Pack:256pcs/208pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input-to-Output:3750Vac,5mA,60s
Insulation Resistance

Input-to-Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
