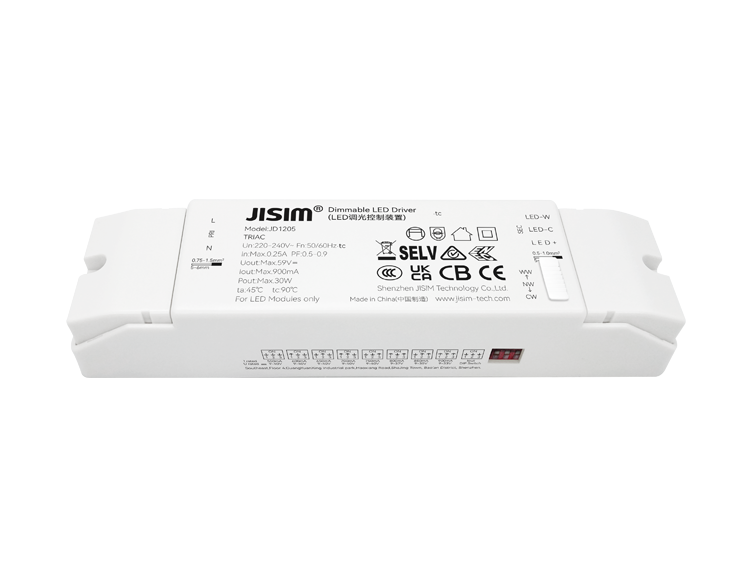

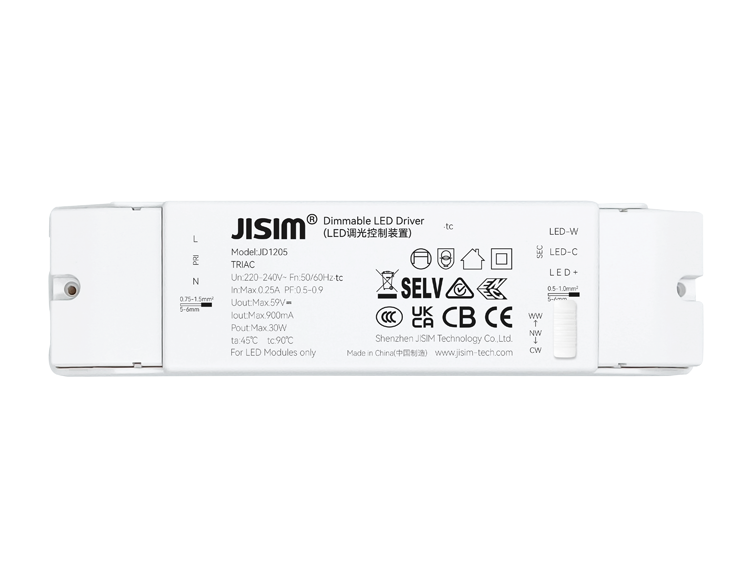

JD1205 Triac 30W 550-900mA 220-240VAC DIP
HomeProductTriac

JD1205 Triac 30W 550-900mA 220-240VAC DIP

Product Features

  • Compact design,suitable for small cut‑out downlights,panel lights,linear lights
  • Dimmable constant‑current driver,high power factor,high efficiency,long service life
  • Compatible with Triac leading‑edge or trailing‑edge dimmers
  • Flicker‑free,noise‑free
  • Smooth high‑performance dimming,compatible with more dimmers
  • Dimming range 1…100%
  • Output current selectable via dip‑switch,3‑level color‑temperature selection via dip‑switch
  • Output open‑circuit and overload protection
  • Complies with safety extra‑low voltage standard
  • Screw‑locking terminals for input and output
  • Ambient temperature ‑20～+45℃,max.case temperature 75/80/90℃
  • Suitable for class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection class Ⅱ
Consult Now Buy Now
  • Model Number
    JD1205
  • Rated Voltage
    220-240Vac
  • Output Current
    550-900mA

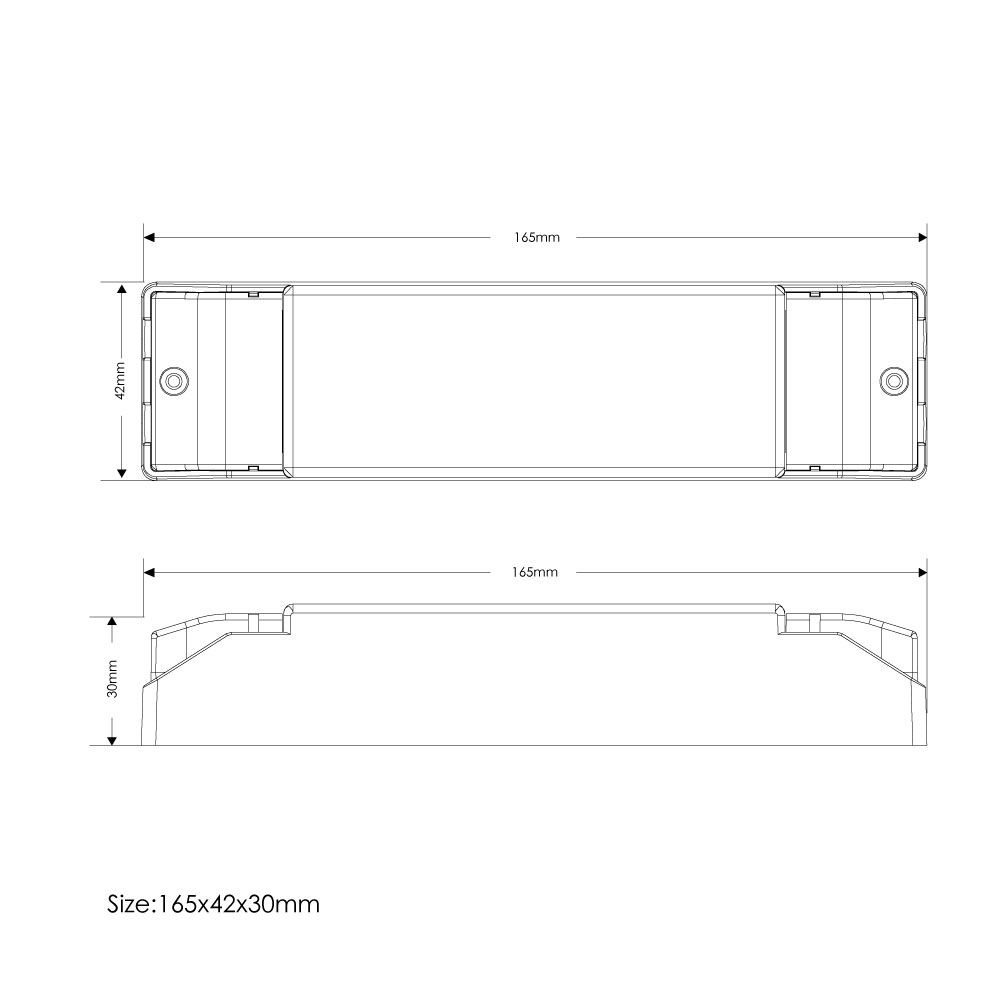

  • Product Dimension
    165*42*30mm
  • Dimming Mode
    Triac
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:180.2±10g/pcs,Small Pack:197g/pcs,Inner Carton:5.7kg/carton,Outer Carton:23.7kg/carton
  • Packaging
    Inner Carton:30pcs/carton,Outer Carton:120pcs/carton
  • Output Channel
    CCT
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.30W
  • Output Voltage
    9-40V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
