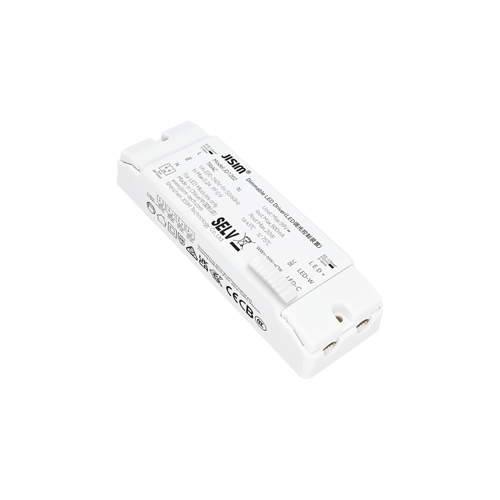

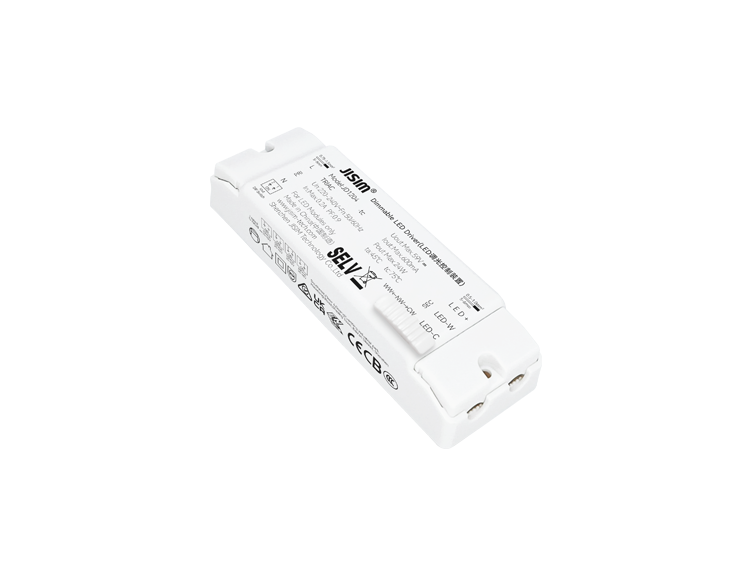

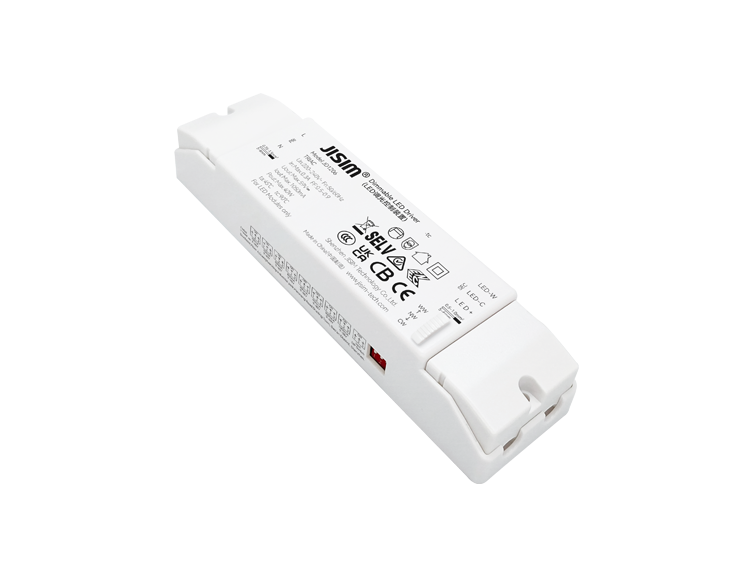

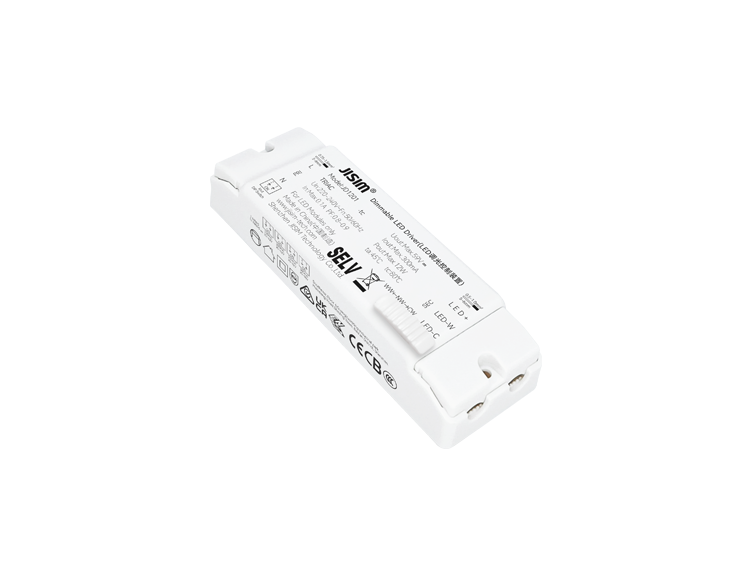

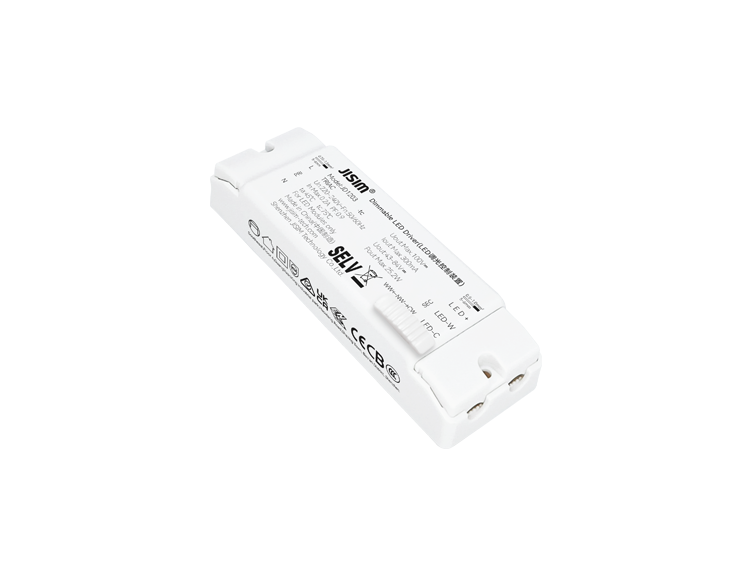

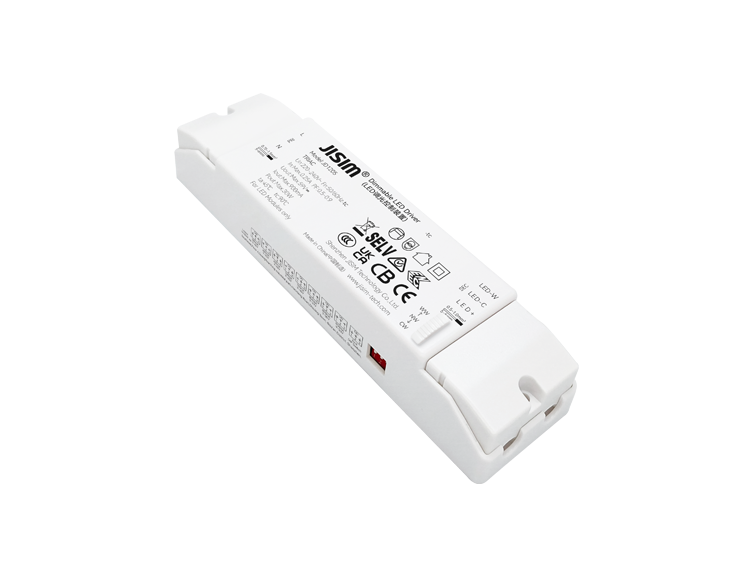

Triac Independent CC Series 3

Compact design, suitable for small cutout downlights & spotlights, panel lights and linear lights.
Dimmable CC driver, high power factor, high efficiency, long lifespan.
Compatible with Triac leading edge or trailing edge phase-cut dimmers.
Flicker-free, noise-free.
Smooth high-performance dimming, compatible with more dimmers.
Dimming range 1...100%.
Output current and 3-level CCT selectable via DIP switch.
Output open circuit and overload protection.
Complies with SELV (Safety Extra Low Voltage) standard.
Input and output screw terminal blocks.
Ambient temperature -20 to +45°C, maximum enclosure temperature 75/80/90°C.
Suitable for Class I, II and III luminaires.
Protection Class II.

Consult Now Buy Now

Dimming Mode

Triac
Dimming Range

1-100%
Protection

Output open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 91.2±10g/pcs, Small Pack: 104.9g/pcs, Middle Carton: 5.33kg/carton, Master Carton: 22.3kg/carton (See specification sheet for details)
Package

Middle Carton: 48/30 pcs/carton, Master Carton: 192/120 pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

75/80/90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
