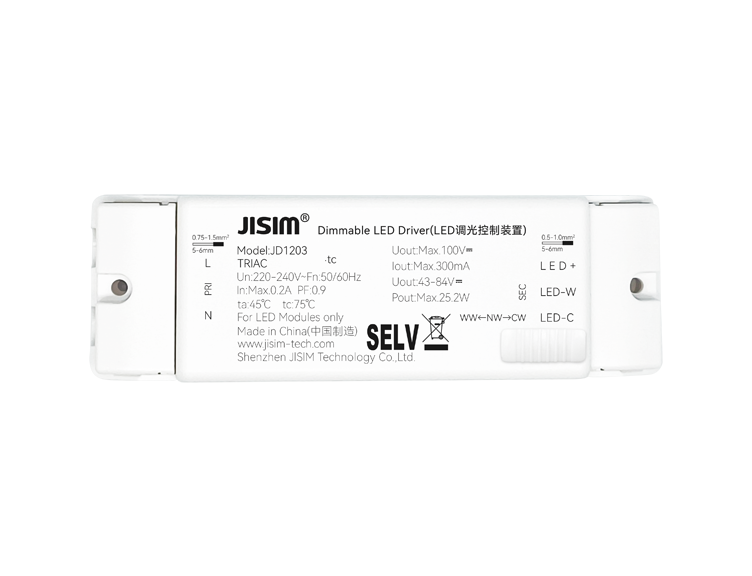

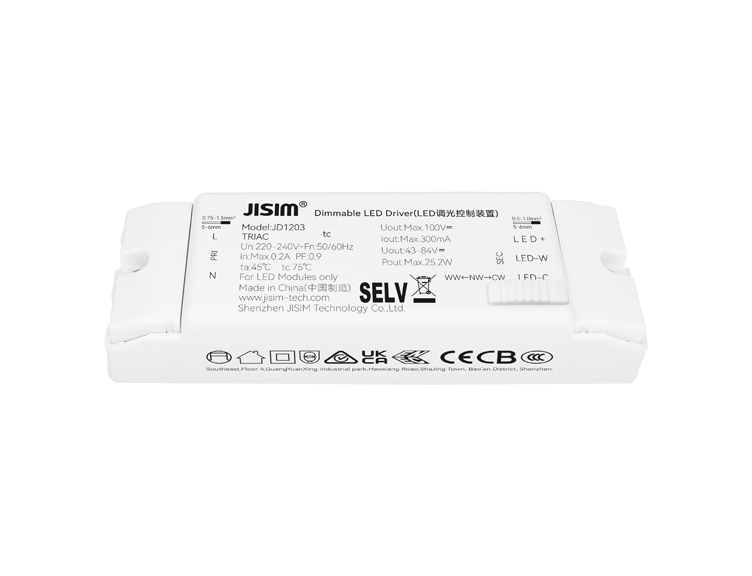

JD1203 Triac 24W 300mA 220-240VAC DIP

Compact design,suitable for small‑aperture downlight‑spotlight,panel light,linear light
Dimmable CC driver,high power factor,high efficiency,long service life
Compatible with Triac leading‑edge or trailing‑edge dimmers
Flicker‑free and noise‑free
Smooth high‑performance dimming,compatible with more dimmers
Dimming range 1…100%
Select output current via DIP switch,3‑level CCT selection by DIP switch
Output open‑circuit and overload protection
Complies with SELV standard
Input and output screw‑locking terminals
Ambient temperature‑20～+45℃,Maximum case temperature 75℃
Suitable for Class ⅠⅡⅢ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD1203
Rated Voltage

220-240Vac
Output Current

300mA
Product Dimension

120*38*23mm
Dimming Mode

Triac
Dimming Range

1-100%
Protection

Output short‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:95.4±10g/pcs,Small Pack:105g/pcs,Inner Pack:5.34kg/carton,Outer Pack:22.26kg/carton
Packaging

Inner Pack:48pcs/carton,Outer Pack:192pcs/carton
Output Channel

CCT
IP Rating

IP20
Working Mode

CC
Output Power

Max.24W
Output Voltage

43-84V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 120V
Installation Method

Independent
Warranty

5 years
