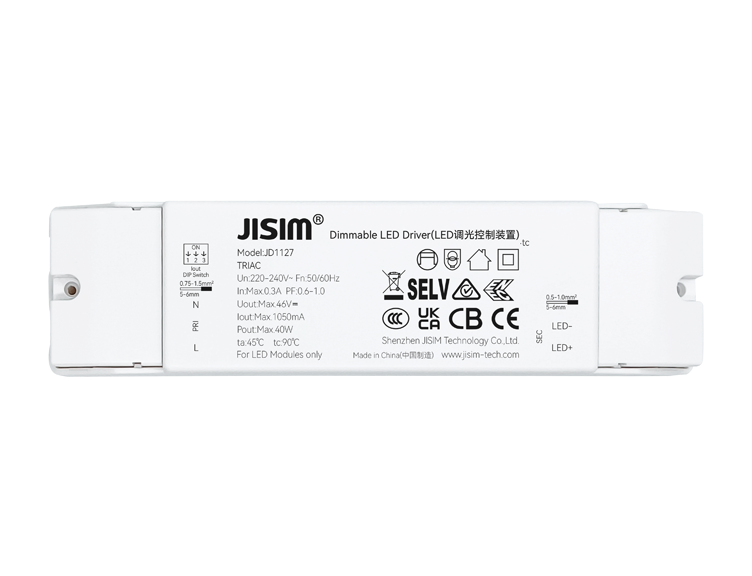

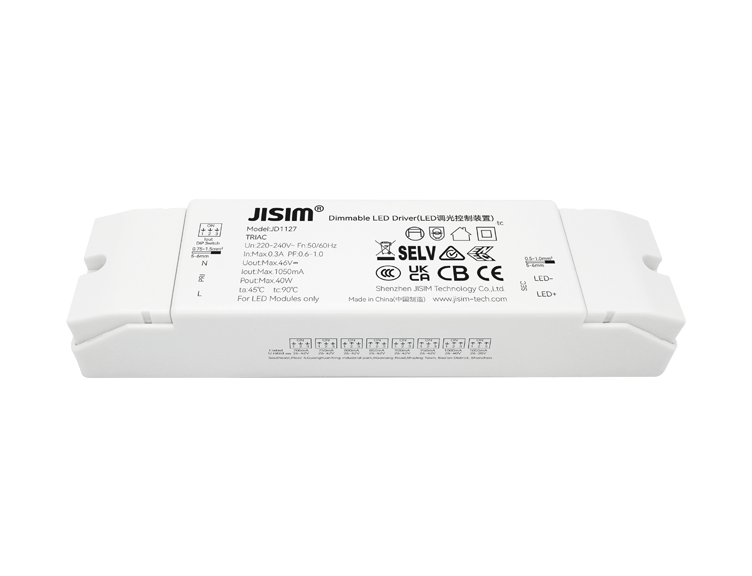

JD1127 Triac 40W 700-1050mA 220-240VAC DIP
HomeProductTriac

JD1127 Triac 40W 700-1050mA 220-240VAC DIP

Product Features

  • Compact design, suitable for small cutout downlights, panel lights and linear lights
  • Dimmable CC driver, high power factor, high efficiency, long lifespan
  • Compatible with Triac leading edge or trailing edge phase-cut dimmers
  • Flicker-free, noise-free
  • Smooth high-performance dimming, compatible with more dimmers
  • Dimming range 1...100%
  • Output current selectable via DIP switch
  • Output open-circuit and overload protection
  • Complies with SELV (Safety Extra Low Voltage) standard
  • Input and output screw terminal blocks
  • Ambient temperature -20 to +45°C, maximum enclosure temperature 90°C
  • Suitable for Class I, II and III luminaires
  • Protection Class II
Consult Now Buy Now
  • Model Number
    JD1127
  • Rated Voltage
    220-240Vac
  • Output Current
    700-1050mA
  • Product Dimension
    165*42*30mm
  • Dimming Mode
    Triac
  • Dimming Range
    1-100%
  • Protection
    Output short-circuit, overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight: 180±10g/pcs, Small Pack: 197g/pcs, Inner Pack: 5.7kg/carton, Outer Pack: 23.7kg/carton
  • Packaging
    Inner Pack: 30pcs/carton, Outer Pack: 120pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.40W
  • Output Voltage
    25-42V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output: 3750Vac, 5mA, 60s
  • Insulation Resistance
    Input to Output: 100MΩ / 500VDC / 25°C / 70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
