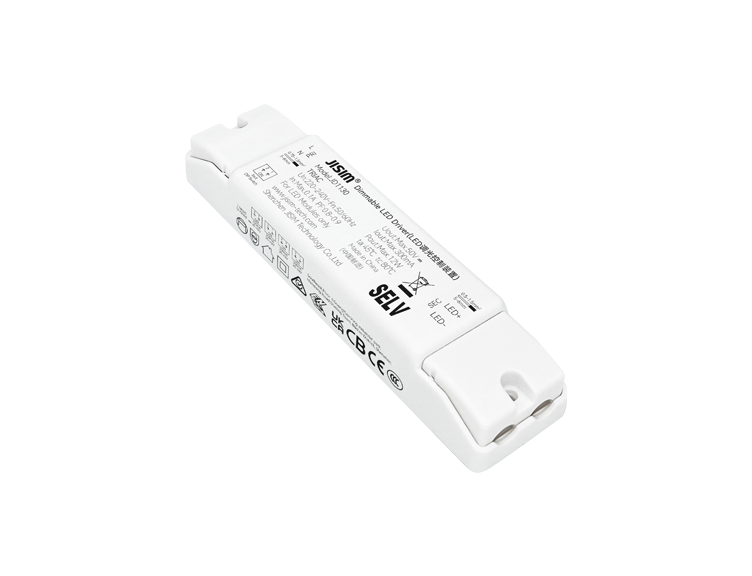

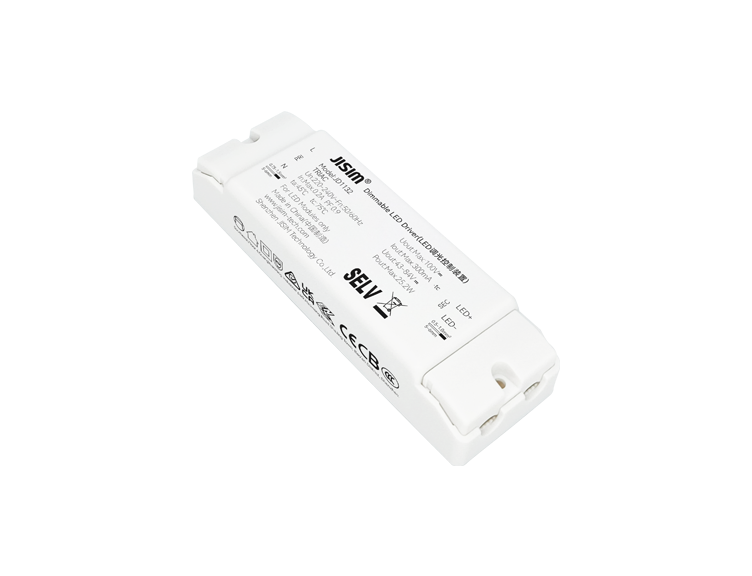

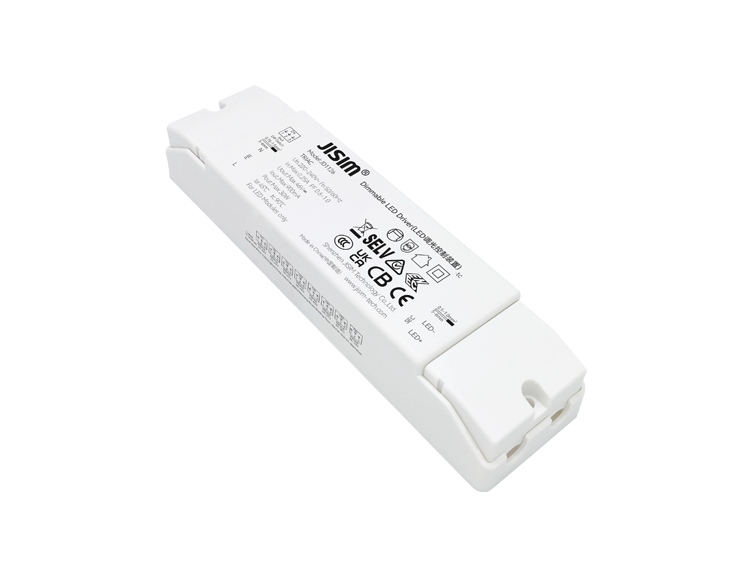

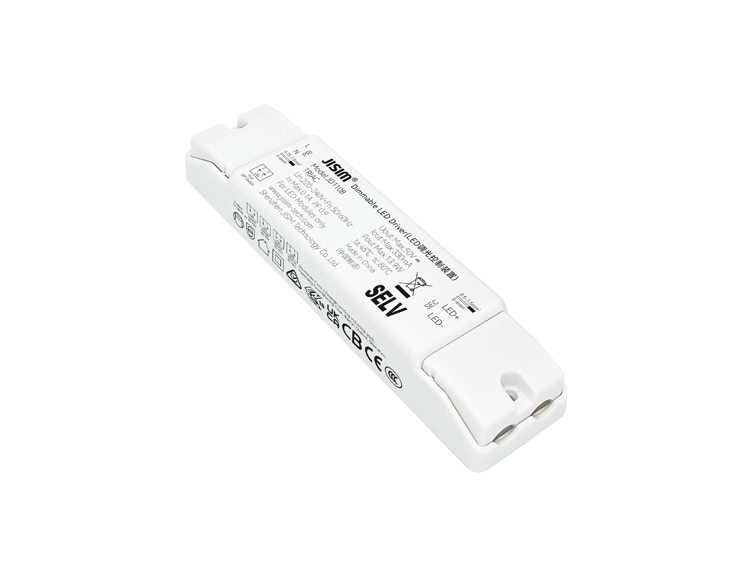

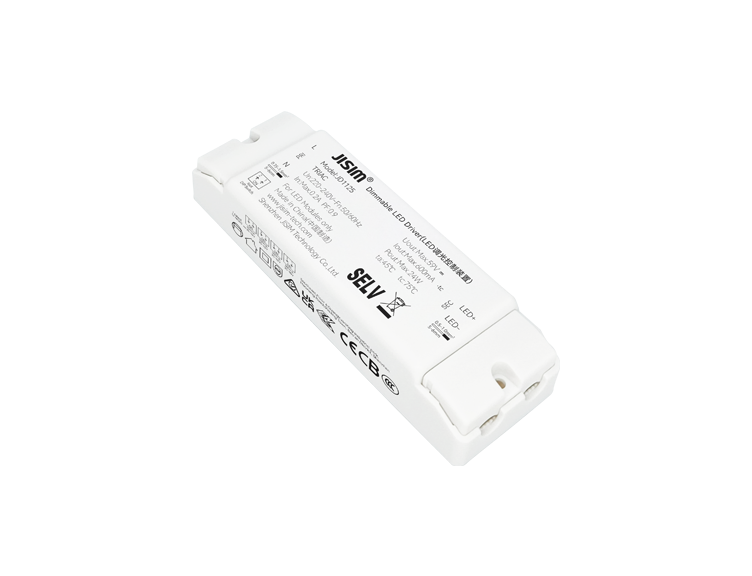

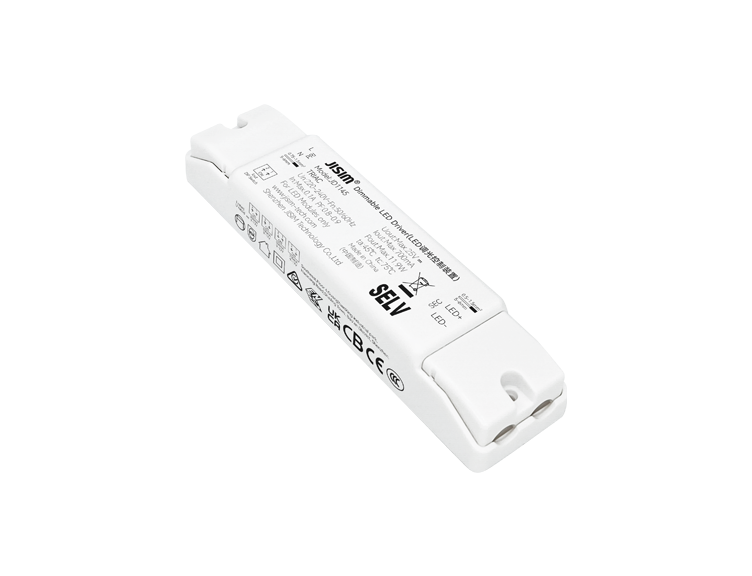

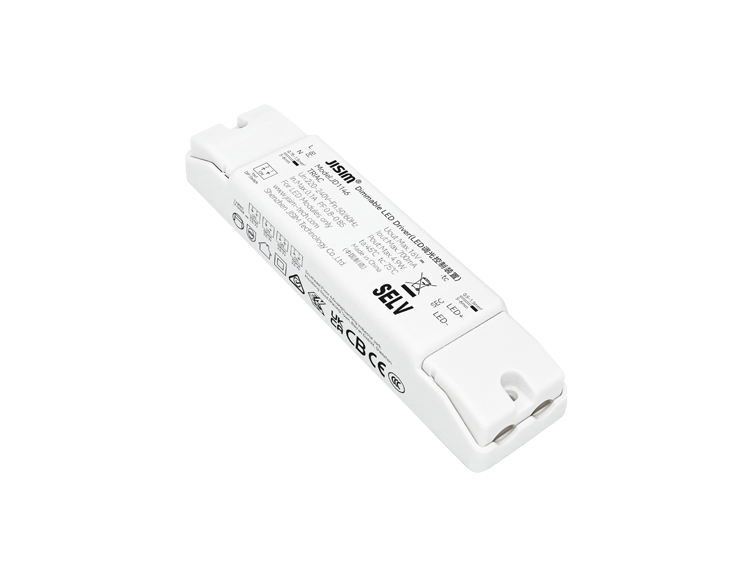

Triac Independent CC Series 2
HomeProductTriac

Triac Independent CC Series 2

Series Features

  • Compact design, suitable for small cutout downlights, panel lights and linear lights
  • Dimmable CC driver, high power factor, high efficiency, long service life
  • Compatible with Triac leading-edge or trailing-edge phase-cut dimmers
  • Flicker-free, noise-free
  • Smooth high-performance dimming, compatible with more dimmers
  • Dimming range 1…100%
  • Output current selectable via DIP switch
  • Output open-circuit and overload protection
  • Compliant with SELV standard
  • Screw-locked terminals for input and output wiring
  • Ambient temperature -20～+45℃, maximum case temperature 75/80/90℃
  • Suitable for Class I, II and III luminaires
  • Protection Class II
Consult Now Buy Now
  • Dimming Mode
    Triac
  • Dimming Range
    1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Class
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight: 68±10g/pcs, Small Pack: 78.2g/pcs, Inner Pack: 6.56kg/carton, Outer Pack: 27.1kg/carton (See datasheet for details)
  • Package
    Inner Pack: 80pcs/48pcs/30pcs per carton, Outer Pack: 320pcs/192pcs/120pcs per carton
  • Operating Temperature
    -20-+45℃，20-90%RH
  • Storage Temperature
    -40-+80℃，5-90%RH
  • Max Case Temperature
    75℃/80℃/90℃
  • Withstand Voltage
    Input to Output：3750V/5mA/60S
  • Insulation Resistance
    Input to Output：100mΩ/500VDC/25℃/70%RH
  • Safety Standard
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Lifetime
    >50000H@tc<90℃
JD1130_CN
JD1130_CN
JD1130_EN
JD1130_EN
JD1131_CN
JD1131_CN
JD1131_EN
JD1131_EN
JD1125_CN
JD1125_CN
JD1125_EN
JD1125_EN
JD1126_CN
JD1126_CN
JD1126_EN
JD1126_EN
