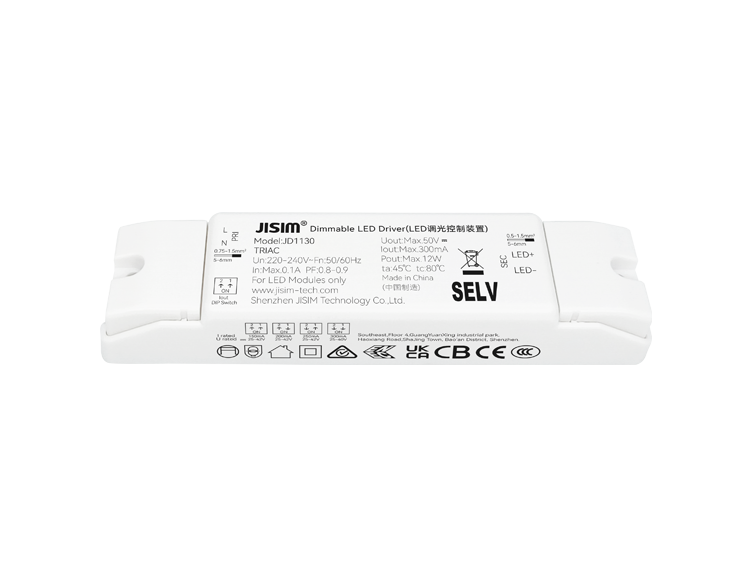

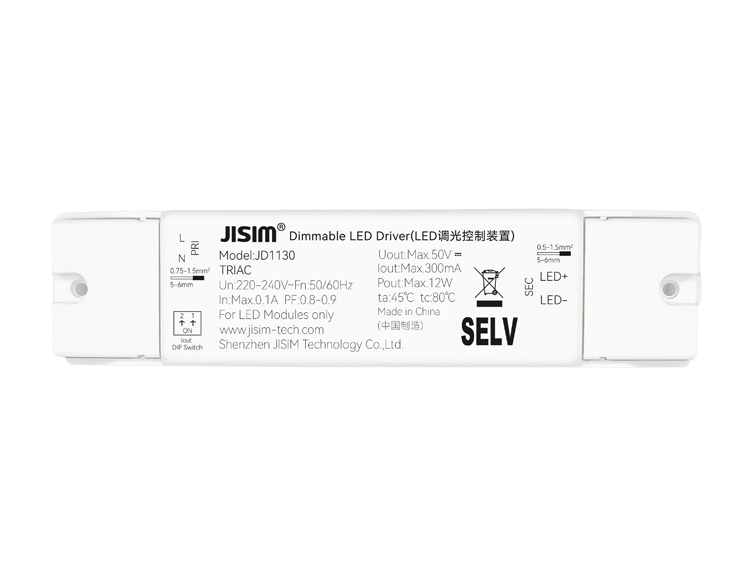

JD1130 Triac 12W 150-300mA 220-240VAC DIP

Compact design, suitable for small cutout downlights, panel lights and linear lights
Dimmable CC driver, high power factor, high efficiency, long lifespan
Compatible with Triac leading edge or trailing edge phase-cut dimmers
Flicker-free, noise-free
Smooth high-performance dimming, compatible with more dimmers
Dimming range 1...100%
Output current selectable via DIP switch
Output open-circuit and overload protection
Complies with SELV (Safety Extra Low Voltage) standard
Input and output screw terminal blocks
Ambient temperature -20 to +45°C, maximum enclosure temperature 80°C
Suitable for Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Model Number

JD1130
Rated Voltage

220-240Vac
Output Current

150-300mA
Product Dimension

126*30*20mm
Dimming Mode

Triac
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight: 61.2±10g/pcs, Small Pack: 71.7g/pcs, Inner Pack: 6.04kg/carton, Outer Pack: 25.04kg/carton
Packaging

Inner Pack: 80pcs/carton, Outer Pack: 320pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.12W
Output Voltage

25-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

80℃
Withstand Voltage

Input to Output: 3750Vac, 5mA, 60s
Insulation Resistance

Input to Output: 100MΩ / 500VDC / 25°C / 70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
