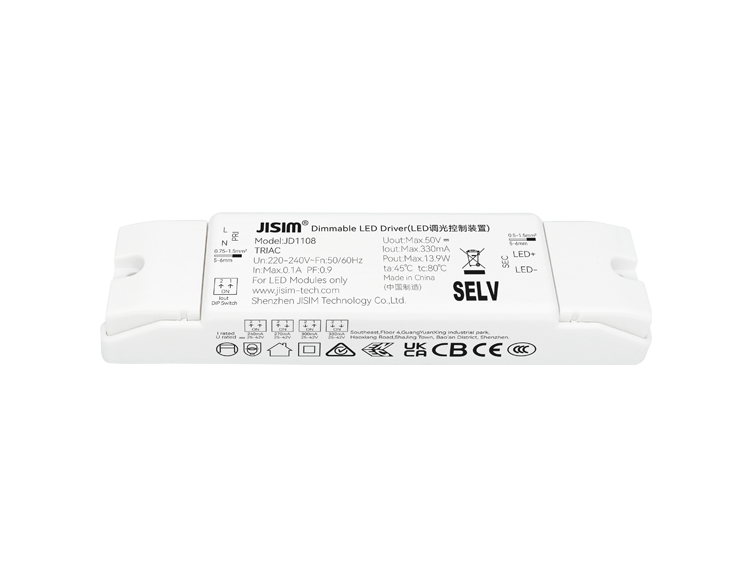

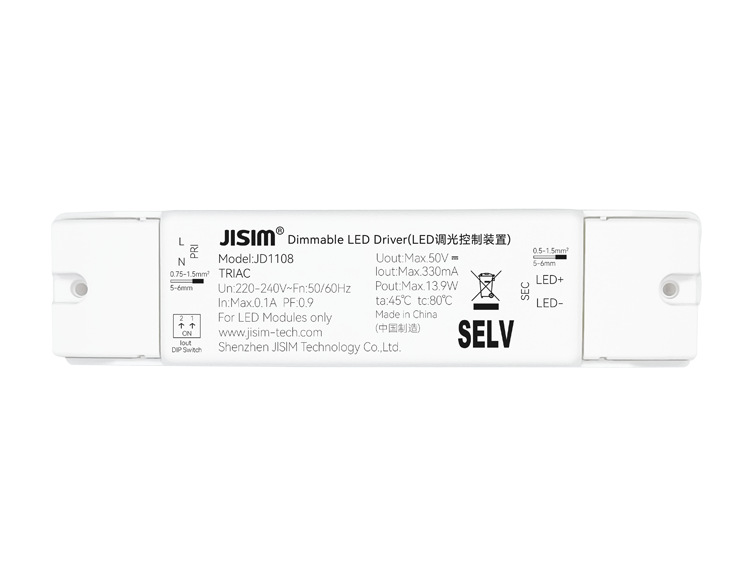

JD1108 Triac 14W 240-330mA 220-240VAC DIP
HomeProductTriac

JD1108 Triac 14W 240-330mA 220-240VAC DIP

Product Features

  • Compact design,suitable for small cut‑out downlights,panel lights,linear lights
  • Dimmable constant‑current driver,high power factor,high efficiency,long service life
  • Compatible with Triac leading‑edge or trailing‑edge dimmers
  • Flicker‑free,noise‑free
  • Smooth high‑performance dimming,compatible with more dimmers
  • Dimming range 1…100%
  • Output current selectable via dip‑switch
  • Output open‑circuit and overload protection
  • Complies with safety extra‑low voltage standard
  • Screw‑locking terminals for input and output
  • Ambient temperature ‑20～+45℃,max.case temperature 80℃
  • Suitable for class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection class Ⅱ
Consult Now Buy Now
  • Model Number
    JD1108
  • Rated Voltage
    220-240Vac
  • Output Current
    240-330mA
  • Product Dimension
    126*30*20mm
  • Dimming Mode
    Triac
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:65.7±10g/pcs,Small Pack:76.3g/pcs,Inner Carton:6.4kg/carton,Outer Carton:26.5kg/carton
  • Packaging
    Inner Carton:80pcs/carton,Outer Carton:320pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.14W
  • Output Voltage
    25-42V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    80℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
