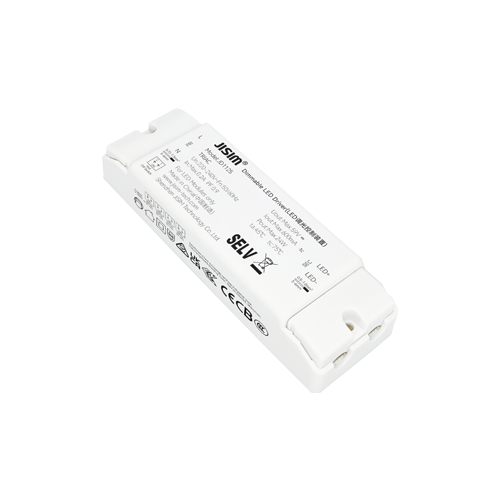

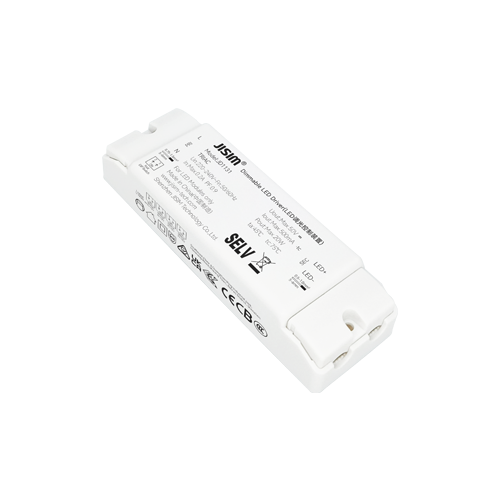

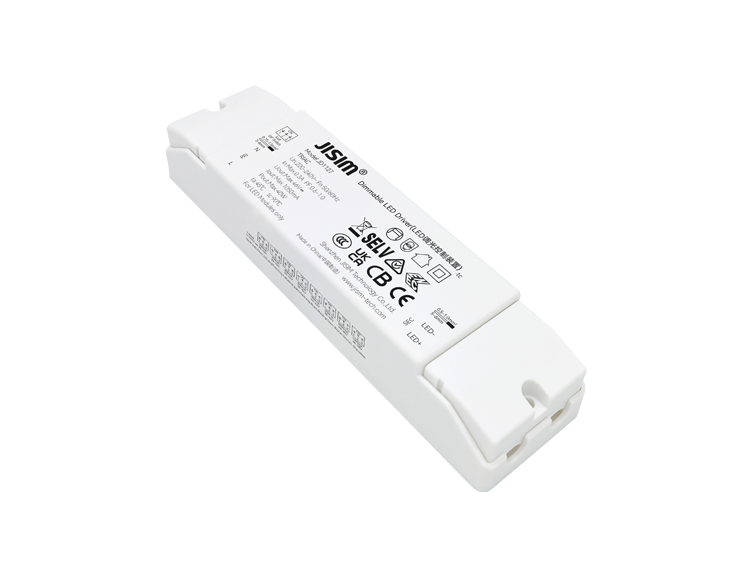

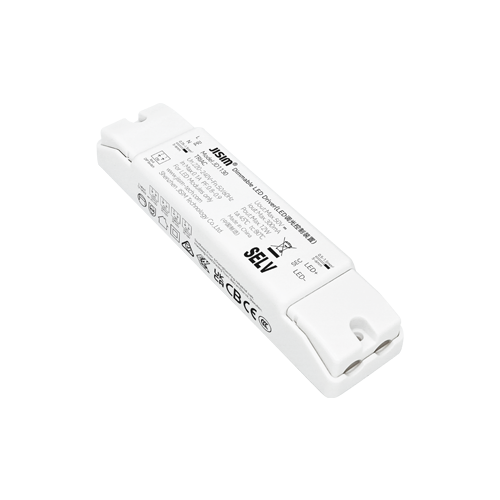

JD1145 Triac 11.9W 350-700mA 220-240VAC DIP

Compact design,suitable for small cut‑out downlight&spotlight,panel light,linear light
Dimmable CC driver,high power factor,high efficiency,long service life
Compatible with Triac leading‑edge or trailing‑edge phase‑cut dimmers
Flicker‑free and noise‑free
Smooth high‑performance dimming,compatible with more dimmers
Dimming range 1…100%
Select output current via DIP switch
Output open‑circuit and overload protection
Complies with safety extra‑low‑voltage standard
Screw‑locking terminal blocks for input and output
Ambient temperature‑20～+45℃,maximum case temperature 80℃
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD1145
Rated Voltage

220-240Vac
Output Current

350-700mA
Product Dimension

126*30*20mm
Dimming Mode

Triac
Dimming Range

1-100%
Protection

Output open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:67.9±10g/pcs,Small Pack:79.4g/pcs,Inner Pack:6.65kg/carton,Outer Pack:27.5kg/carton
Packaging

Inner Pack:80pcs/carton,Outer Pack:320pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.11.9W
Output Voltage

9-17V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

80℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
