JD9129 2.4G RF 75W 1.6A 220-240VAC DIP
HomeProduct2.4G RF

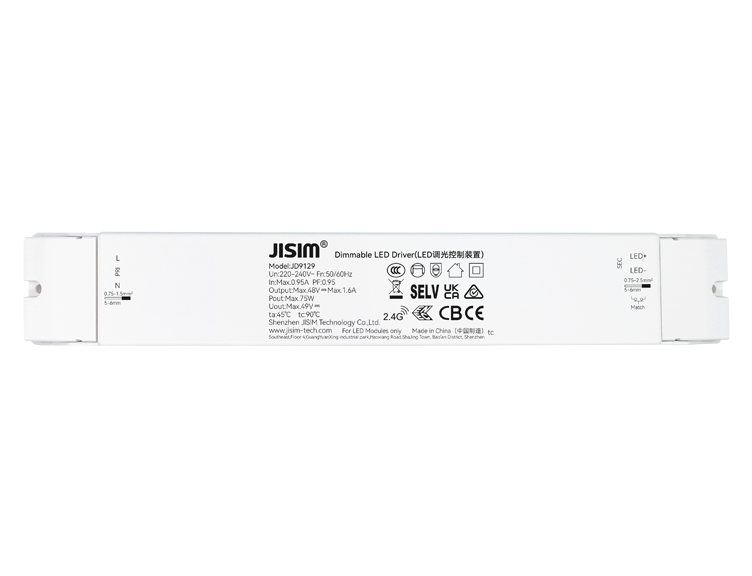

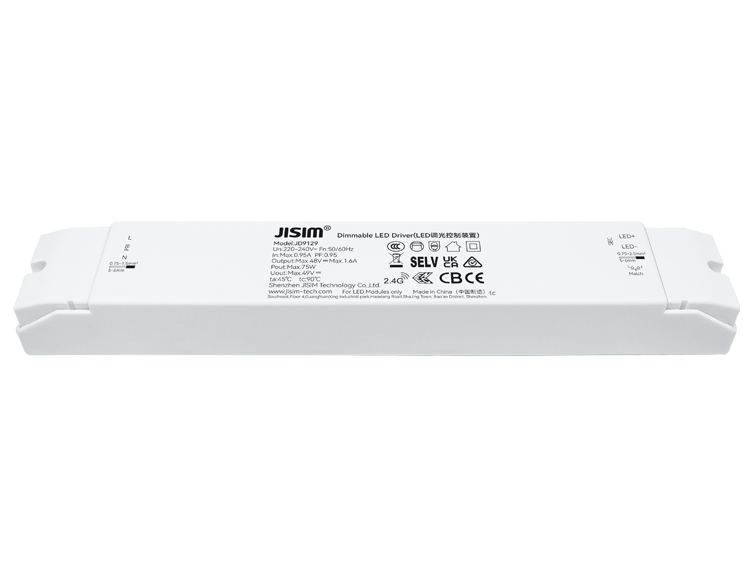

JD9129 2.4G RF 75W 1.6A 220-240VAC DIP

Product Features

  • 独立式设计，适用于LED灯带、灯条、线型灯、灯膜、磁吸灯、装饰灯
  • 可调光恒压驱动，足功率、高功率因数、高效率、长寿命
  • 2.4G RF无线通信，Mesh组网能力，抗干扰能力强
  • 平滑高性能调光，无频闪，无噪声
  • 调光范围1…100%，自带缓启动功能
  • 支持本地遥控器和面板控制，遥控距离（空旷）＞30米
  • 输出短路、开路、过载保护
  • 符合安全特低电压标准
  • 输入输出螺丝锁紧接线端子
  • 环境温度-20～+45℃，最大外壳温度90℃
  • 适用于ⅠⅡⅢ类灯具
  • 保护等级Ⅱ
Consult Now Buy Now
  • Model Number
    JD9129
  • Rated Voltage
    220-240Vac
  • Output Current
    1.6A
  • Product Dimension
    265*42*30mm
  • Dimming Mode
    2.4G RF
  • Dimming Range
    1-100%
  • Protection
    输出短路、开路、过载保护
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    净重：255.2±10g/pcs, 小包: 284.5g/pcs, 中包:4.57kg/箱, 大包: 19.17kg/箱
  • Packaging
    中包：15pcs/箱，大包:60pcs/箱
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    恒压
  • Output Power
    Max.75W
  • Output Voltage
    48V
  • PF
    >0.95
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    输入对输出:3750Vac,5mA,60s
  • Insulation Resistance
    输入对输出:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    独立式
  • Warranty
    5年
