2.4G RF Independent CV Series 2

HomeProduct2.4G RF

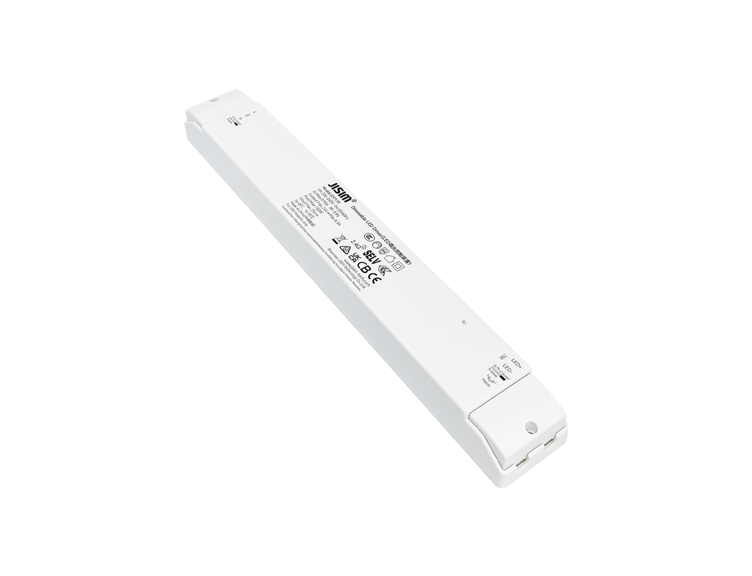

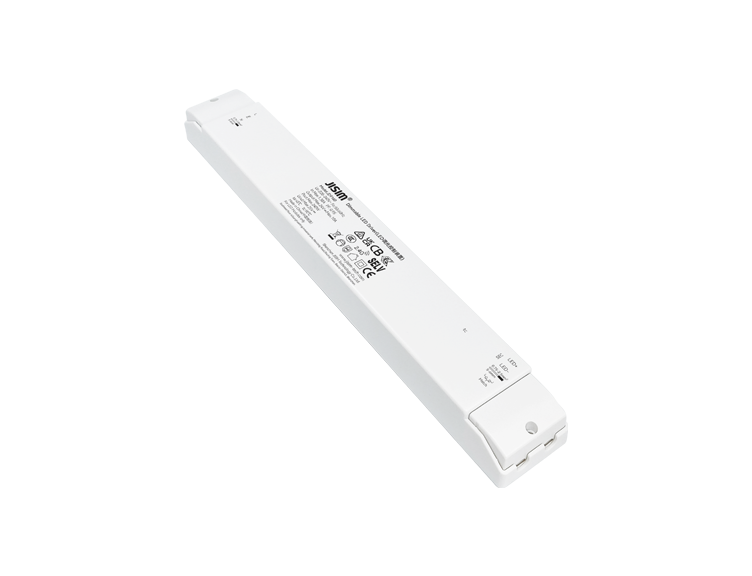

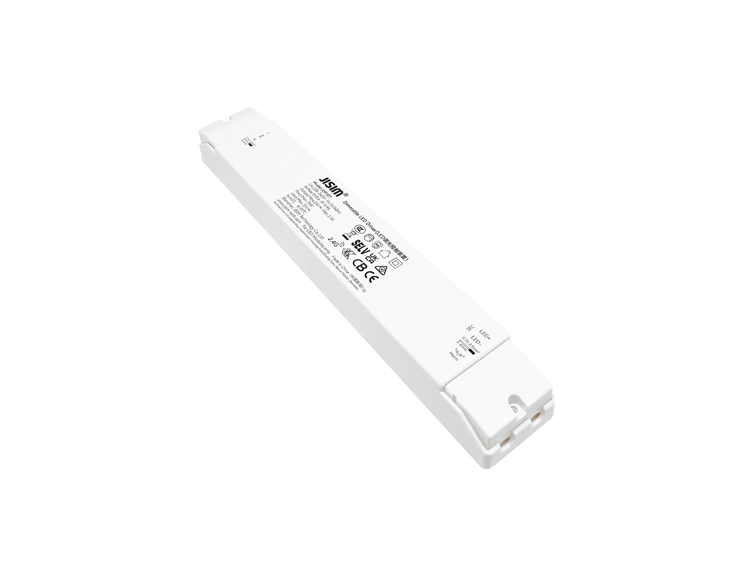

2.4G RF Independent CV Series 2

Series Features

Independent design, suitable for LED strips, LED bars, linear lights, light films, magnetic track lights and decorative lights.
Dimmable CV driver, full power, high power factor, high efficiency, long lifespan.
2.4G RF wireless communication, Mesh networking capability, strong anti-interference.
Smooth high-performance dimming, flicker-free, noise-free.
Dimming range 1...100%, with built-in soft start function.
Supports local remote control and panel control, remote control distance (open area) >30m.
Output short circuit, open circuit and overload protection.
Complies with SELV (Safety Extra Low Voltage) standard.
Input and output screw terminal blocks.
Ambient temperature -20 to +45°C, maximum enclosure temperature 90°C.
Suitable for Class I, II and III luminaires.
Protection Class II.

Consult Now Buy Now

Model

Output Power

Rated Voltage

Output Voltage

Output Current

PF

Size
JD9125 2.4G RF 75W 6.3A 220-240VAC DIP

Max.75W

220-240Vac

12V

6.3A

>0.95

265*42*30mm
JD9126 2.4G RF 120W 10A 220-240VAC DIP

Max.120W

220-240Vac

12V

10A

>0.95

325*44*30mm
JD9127 2.4G RF 150W 12.5A 220-240VAC DIP

Max.150W

220-240Vac

12V

12.5A

>0.95

325*44*30mm
JD9107 2.4G RF 75W 3.1A 220-240VAC DIP

Max.75W

220-240Vac

24V

3.1A

>0.95

265*42*30mm
JD9109 2.4G RF 120W 5A 220-240VAC DIP

Max.120W

220-240Vac

24V

5A

>0.95

325*44*30mm
JD9110 2.4G RF 150W 6.3A 220-240VAC DIP

Max.150W

220-240Vac

24V

6.3A

>0.95

325*44*30mm
JD9160 2.4G RF 240W 10A 220-240VAC DIP

Max.240W

220-240Vac

24V

10W

>0.95

325*44*30mm
JD9129 2.4G RF 75W 1.6A 220-240VAC DIP

Max.75W

220-240Vac

48V

1.6A

>0.95

265*42*30mm
JD9130 2.4G RF 120W 2.5A 220-240VAC DIP

Max.120W

220-240Vac

48V

2.5A

>0.95

325*44*30mm
JD9131 2.4G RF 150W 3.1A 220-240VAC DIP

Max.150W

220-240Vac

48V

3.1A

>0.95

325*44*30mm
JD9161 2.4G RF 240W 5A 220-240VAC DIP

Max.240W

220-240Vac

48V

5A

>0.95

325*44*30mm

Dimming Mode

2.4G RF
Dimming Range

1-100%
Protection

Output short circuit, open circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 255.2±10g/pcs, Small Pack: 284.5g/pcs, Middle Carton: 4.57kg/carton, Master Carton: 19.17kg/carton (See specification sheet for details)
Package

Middle Carton: 15/13 pcs/carton, Master Carton: 60/52 pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
