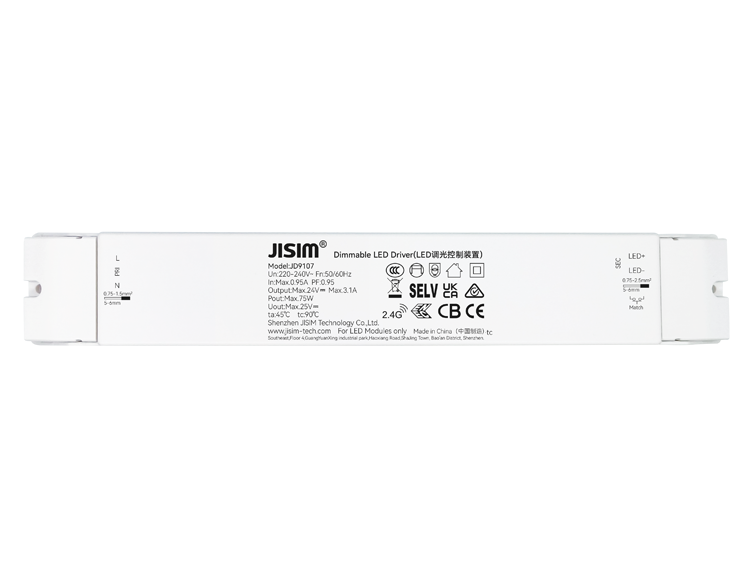

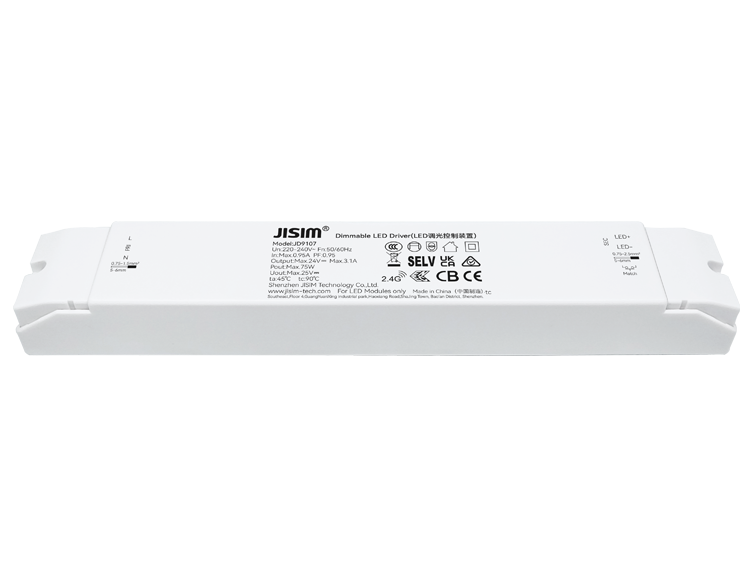

JD9107 2.4G RF 75W 3.1A 220-240VAC DIP

Independent design,suitable for LED strips,light bars,linear lights,light films,magnetic track lights,decorative lights
Dimmable constant‑voltage driver,full power,high power factor,high efficiency,long service life
2.4G RF wireless communication,strong Mesh networking capability,excellent anti‑interference performance
Smooth high‑performance dimming,flicker‑free,noise‑free
Dimming range 1…100%,built‑in soft‑start function
Support local remote control and wall‑panel control,remote control distance (open area)＞30 meters
Output short‑circuit,open‑circuit and overload protection
Comply with safety extra‑low‑voltage standard
Screw‑locking terminals for input and output
Ambient temperature ‑20～+45℃,maximum case temperature 90℃
Suitable for class Ⅰ,Ⅱ,Ⅲ luminaires
Protection class Ⅱ

Consult Now Buy Now

Model Number

JD9107
Rated Voltage

220-240Vac
Output Current

3.1A
Product Dimension

265*42*30mm
Dimming Mode

2.4G RF
Dimming Range

1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:255.2±10g/pcs,Small Pack:284.5g/pcs,Inner Pack:4.57kg/carton,Outer Pack:19.17kg/carton
Packaging

Inner Pack:15pcs/carton,Outer Pack:60pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CV
Output Power

Max.75W
Output Voltage

24V
PF

>0.95
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
