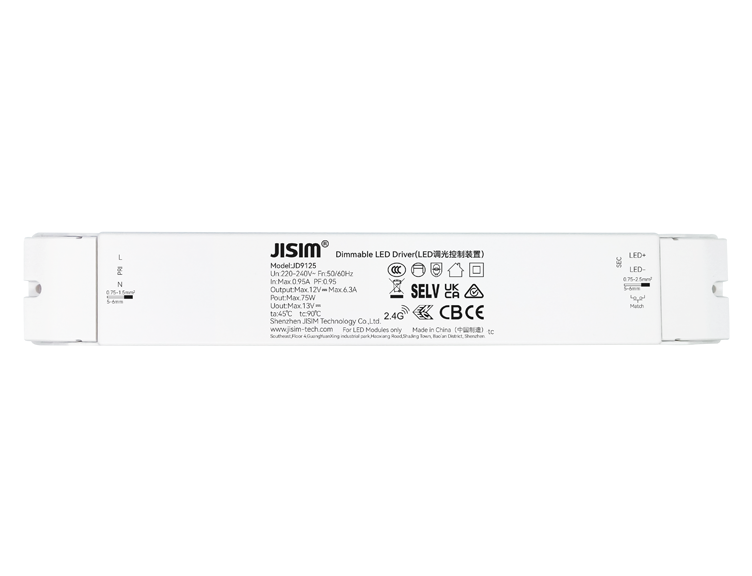

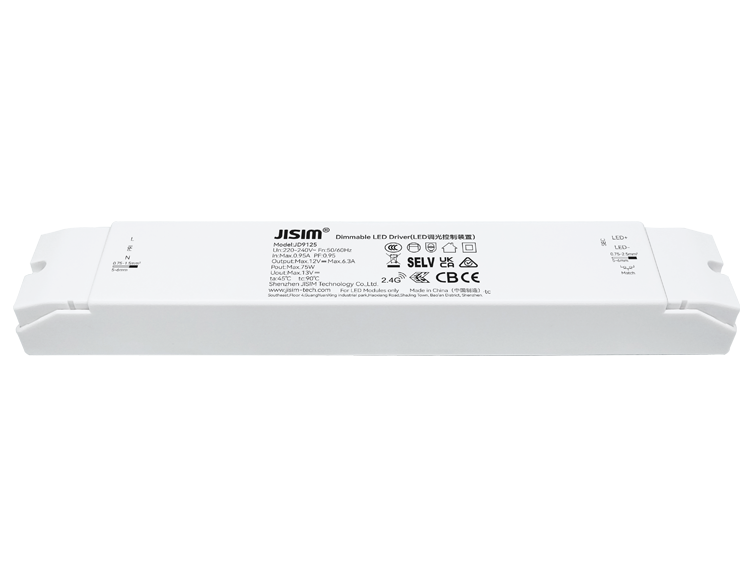

JD9125 2.4G RF 75W 6.3A 220-240VAC DIP

Independent design, suitable for LED strips, LED bars, linear lights, LED films, magnetic lights and decorative lights
Dimmable CV driver, full power, high power factor, high efficiency and long service life
2.4G RF wireless communication, Mesh networking capability, strong anti‑interference performance
Smooth high‑performance dimming, flicker‑free and noise‑free
Dimming range 1…100%, built‑in soft‑start function
Support local remote control and panel control, remote control distance (open space)＞30 meters
Output short‑circuit, open‑circuit and overload protection
Complies with SELV standard
Screw‑locking input and output terminals
Ambient temperature: -20～+45℃, maximum enclosure temperature 90℃
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD9125
Rated Voltage

220-240Vac
Output Current

6.3A
Product Dimension

265*42*30mm
Dimming Mode

2.4G RF
Dimming Range

1-100%
Protection

Output short‑circuit, open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:255.2±10g/pcs,Small Pack:284.5g/pcs,Inner Pack:4.57kg/carton,Outer Pack:19.17kg/carton
Packaging

Inner Pack:15pcs/carton,Outer Pack:60pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CV
Output Power

Max.75W
Output Voltage

12V
PF

>0.95
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
