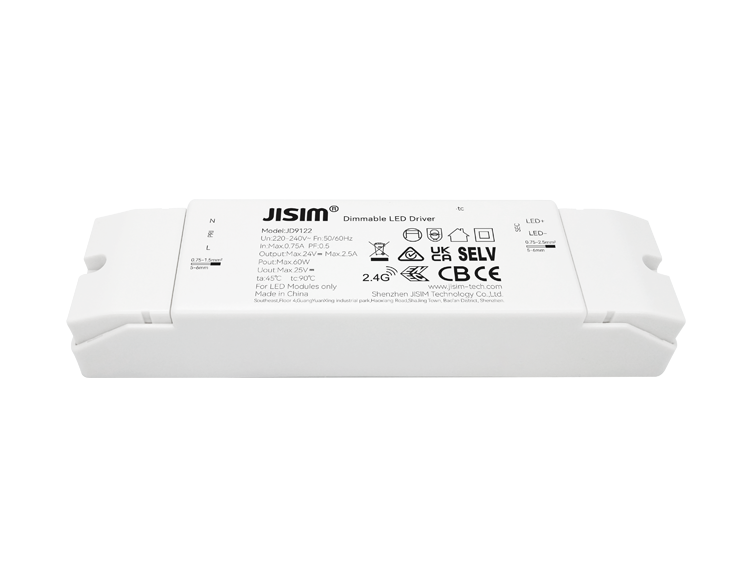

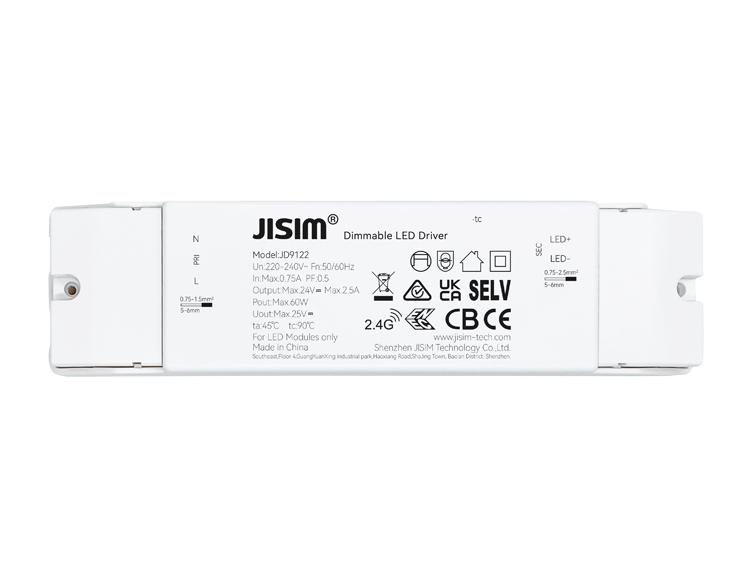

JD9122 2.4G RF 60W 2.5A 220-240VAC DIP
HomeProduct2.4G RF

JD9122 2.4G RF 60W 2.5A 220-240VAC DIP

Product Features

  • Independent design,suitable for LED strip,ribbon light,linear light,light film,magnetic light,decorative light
  • Dimmable CV driver,full power,high efficiency,long service life
  • 2.4G RF wireless communication,Mesh networking capability,strong anti‑interference
  • Smooth high‑performance dimming,flicker‑free and noise‑free
  • Dimming range 1…100%,with soft‑start function
  • Support local remote controller and panel control,remote distance(open area)＞30m
  • Output short‑circuit,open‑circuit and overload protection
  • Complies with SELV standard
  • Input and output screw‑locking terminals
  • Ambient temperature‑20～+45℃,Maximum case temperature 90℃
  • Suitable for Class ⅠⅡⅢ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD9122
  • Rated Voltage
    220-240Vac
  • Output Current
    2.5A
  • Product Dimension
    165*42*30mm
  • Dimming Mode
    2.4G RF
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:185.7±10g/pcs,Small Pack:202g/pcs,Inner Pack:6.36kg/carton,Outer Pack:26.3kg/carton
  • Packaging
    Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    Max.60W
  • Output Voltage
    24V
  • PF
    >0.5
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
