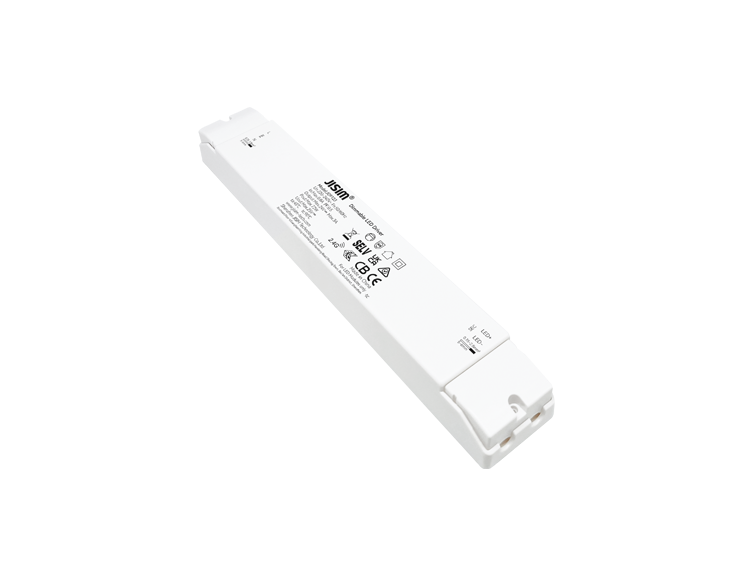

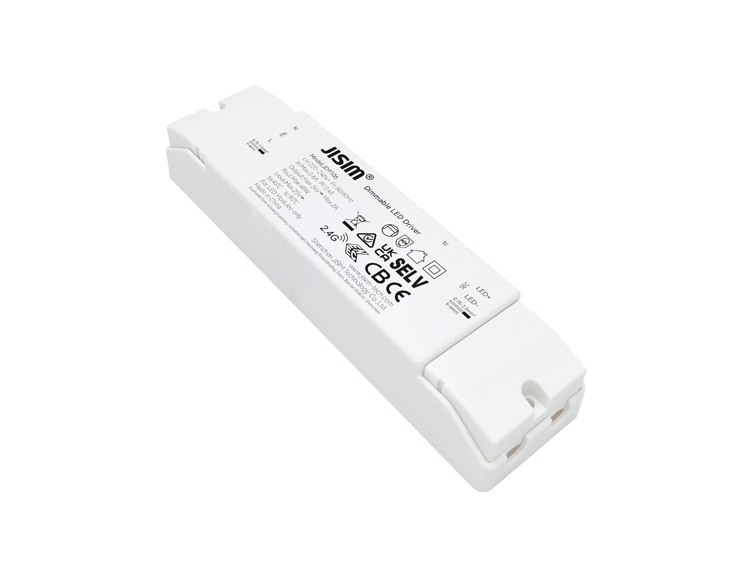

2.4G RF Independent CV Series

Independent design, suitable for LED strips, LED bars, linear lights, light films, magnetic lights and decorative lights
Dimmable CV driver, full power, high efficiency and long service life
2.4G RF wireless communication with Mesh networking capability, strong anti-interference performance
Smooth high-performance dimming, flicker-free and noise-free
Dimming range 1…100%, built-in soft start function
Supports local remote controller and panel control, remote control distance (open space)＞30 meters
Output short-circuit, open-circuit and overload protection
Comply with safety extra-low voltage standard
Screw-locked terminals for input and output
Ambient temperature -20～+45℃, maximum case temperature 90℃
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Dimming Mode

2.4G RF
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 185.7±10g/pcs, Small Pack: 202g/pcs, Inner Pack: 6.36kg/carton, Outer Pack: 26.3kg/carton
Package

Inner Pack: 30pcs/15pcs/carton, Outer Pack: 320pcs/60pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input-to-Output:3750Vac,5mA,60s
Insulation Resistance

Input-to-Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
