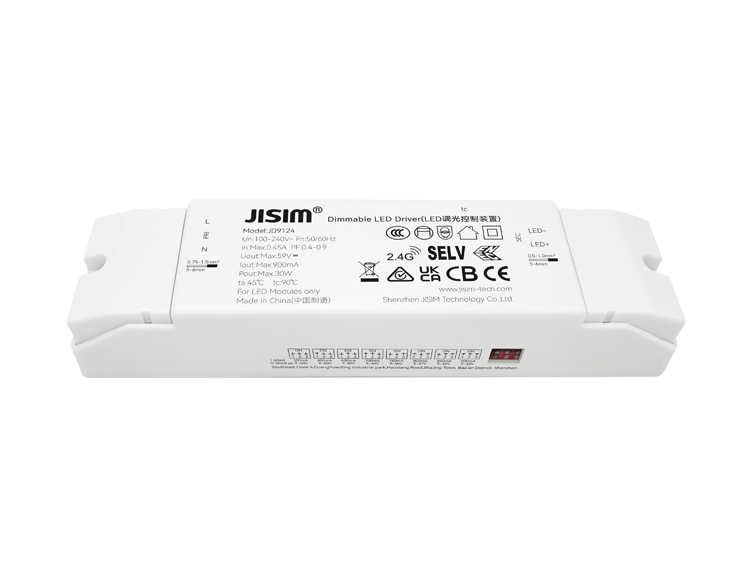

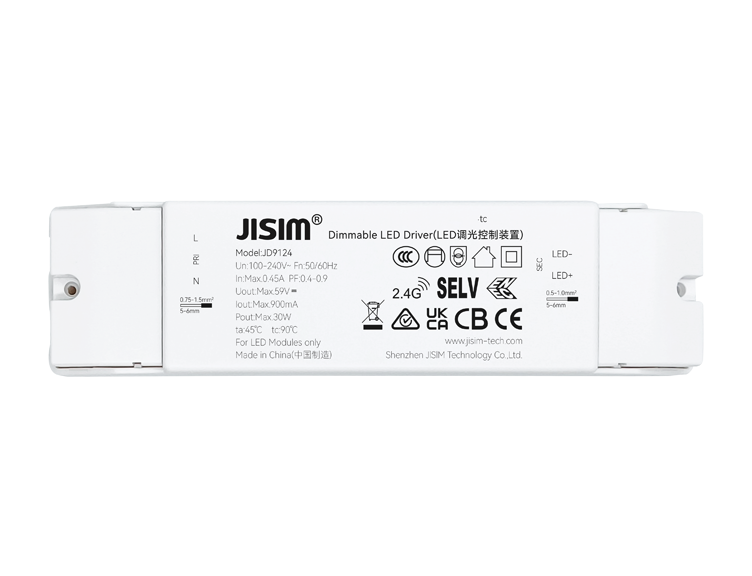

JD9124 2.4G RF 30W 550-900mA 100-240VAC DIP

Compact design,suitable for small cut‑out downlights and spotlights,linear lights
Dimmable constant‑current driver,100‑240V~ input,high power factor,high efficiency,long service life
2.4G RF wireless communication,strong Mesh networking capability,excellent anti‑interference performance
Smooth high‑performance dimming,flicker‑free,noise‑free
Dimming range 0.5…100%,built‑in soft‑start function
Support local remote control and wall‑panel control,remote control distance (open area)＞30 meters
Select output current via dip switch
Output short‑circuit,open‑circuit and overload protection
Comply with safety extra‑low‑voltage standard
Screw‑locking terminals for input and output
Ambient temperature ‑20～+45℃,maximum case temperature 90℃
Suitable for class Ⅰ,Ⅱ,Ⅲ luminaires
Protection class Ⅱ

Consult Now Buy Now

Model Number

JD9124
Rated Voltage

100-240Vac
Output Current

550-900mA
Product Dimension

165*42*30mm
Dimming Mode

2.4G RF
Dimming Range

0.5-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:185.9±10g/pcs,Small Pack:202.3g/pcs,Inner Pack:6.4kg/carton,Outer Pack:26.38kg/carton
Packaging

Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.30W
Output Voltage

9-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
