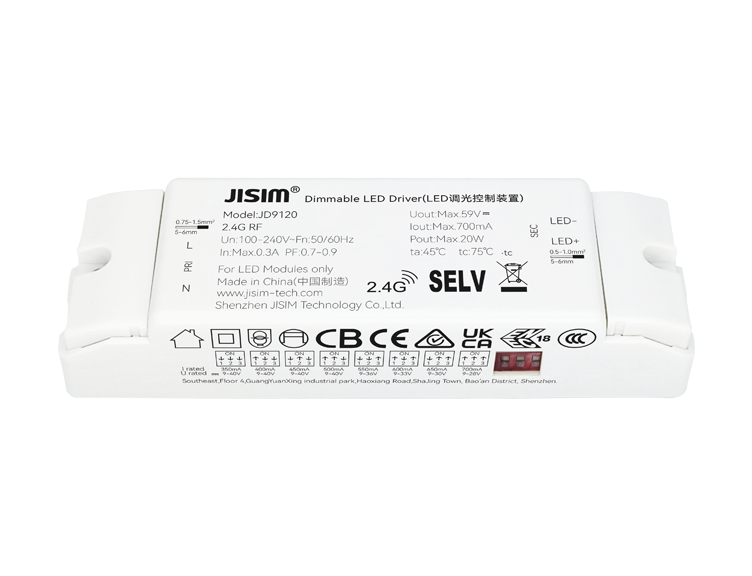

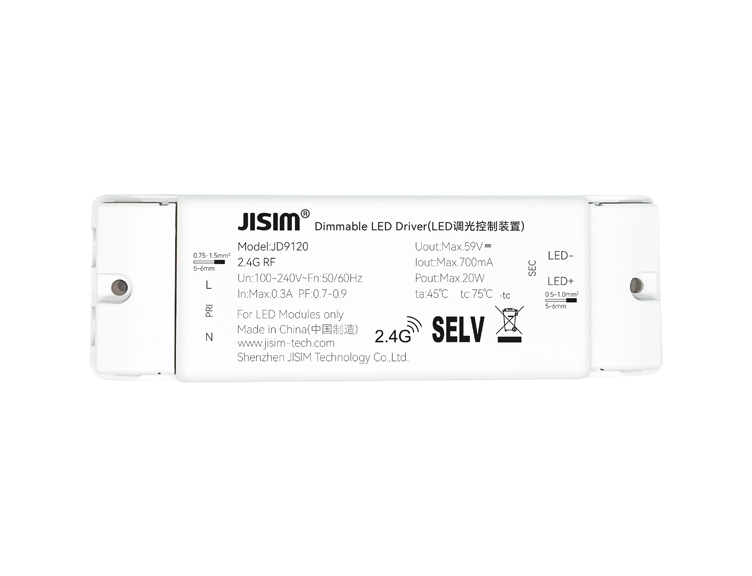

JD9120 2.4G RF 20W 350-700mA 100-240VAC DIP

Compact design,suitable for small‑aperture downlight&spotlight,linear light
Dimmable CC driver,100‑240V~ input,high power factor,high efficiency,long service life
2.4G RF wireless communication,Mesh networking capability,strong anti‑interference
Smooth high‑performance dimming,flicker‑free and noise‑free
Dimming range 0.5…100%,with soft‑start function
Support local remote controller and panel control,remote distance(open area)＞30m
Select output current via DIP switch
Output short‑circuit,open‑circuit and overload protection
Complies with SELV standard
Input and output screw‑locking terminals
Ambient temperature‑20～+45℃,Maximum case temperature 75℃
Suitable for Class ⅠⅡⅢ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD9120
Rated Voltage

220-240Vac
Output Current

350-700mA
Product Dimension

120*38*23mm
Dimming Mode

2.4G RF
Dimming Range

0.5-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:92±10g/pcs,Small Pack:103.7g/pcs,Inner Pack:5.28kg/carton,Outer Pack:22kg/carton
Packaging

Inner Pack:48pcs/carton,Outer Pack:192pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.20W
Output Voltage

9-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
