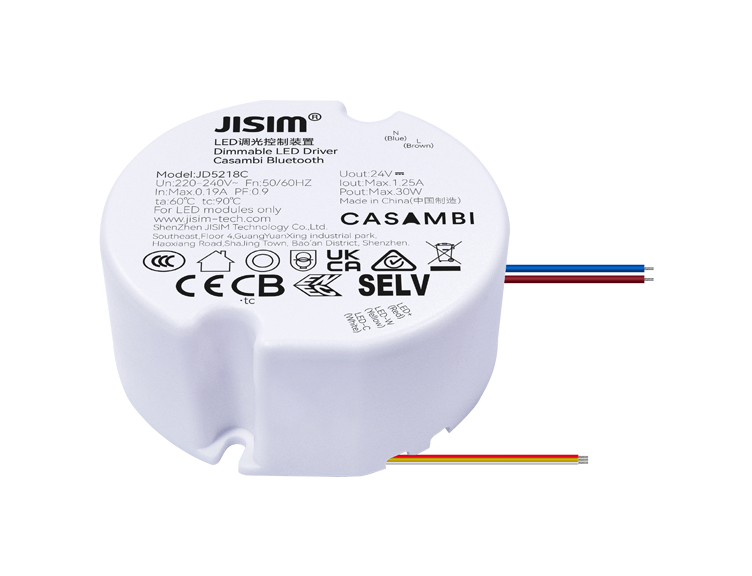

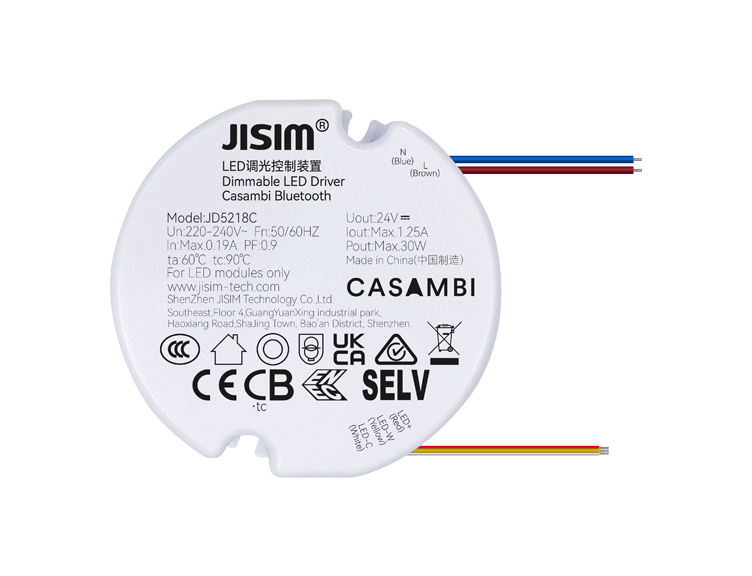

JD5218C CASAMBI Bluetooth 30W 1.32A 220-240VAC

Compact design suitable for modern decorative lamps including wall lamps, table lamps and pendant lamps
Built-in driver fitted with external IPEX antenna
Dimmable color-tunable constant current driver with high power factor, high efficiency and long service life
Bluetooth communication developed on Casambi platform with excellent networking capacity
Smooth high-performance dimming, flicker-free and no noise
Dimming range: 1%~100%, built-in soft start function
Casambi App control available
Output short-circuit, open-circuit and overload protection
Conforms to safety extra-low voltage standards
Leaded terminals for input and output
Ambient temperature: -20℃~+60℃; maximum case temperature: 90℃
Internal glue potting delivers upgraded protection for lamps with waterproof and moistureproof demands
Compatible with Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Model Number

JD5218C
Rated Voltage

220-240Vac
Output Current

1.32A
Product Dimension

65*63*26mm
Dimming Mode

Casambi Bluetooth
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 119±10g per piece, small package: 133g per piece, medium carton: 7.2kg per carton, large carton: 29.7kg per carton
Packaging

Medium carton: 52pcs per carton Large carton: 208pcs per carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

Constant Voltage
Output Power

Max.30W
Output Voltage

24V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Standalone
Warranty

5 years
