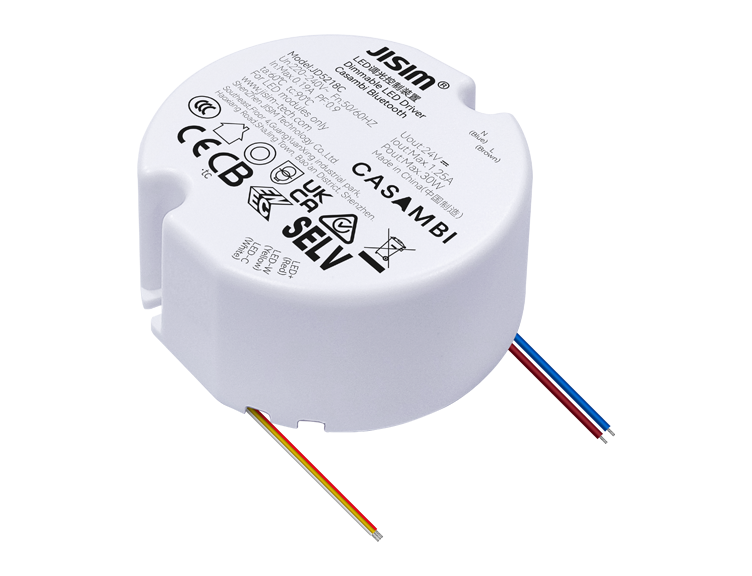

Casambi Bluetooth Built-in CV CCT Tunable Series

Compact design fits modern decorative lamps including wall lamps, table lamps and pendant lamps
Built-in driver fitted with external Ipex antenna
Dimmable CCT-adjustable constant voltage driver with high power factor, high efficiency and long service life
Bluetooth communication developed on Casambi platform with excellent networking capability
Smooth high-performance dimming, flicker-free and silent operation
Dimming range: 1%~100%, equipped with built-in soft start
Casambi App control available
Output short-circuit, open-circuit and overload protection
Compliant with SELV safety requirements
Leads available for input and output terminals
Ambient temperature: -20℃~+60℃, maximum case temperature: 90℃
Internal glue potting achieves sealing, improving protection for lamps with waterproof and moistureproof demands
Applicable to Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Dimming Mode

Casambi Bluetooth
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net weight: 82.4±10g per piece, small package: 94.1g per piece, medium carton: 6.5kg per carton, large carton: 26.9kg per carton (See specification sheet for details)
Package

Medium carton: 66pcs/52pcs per carton Large carton: 264pcs/208pcs per carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
