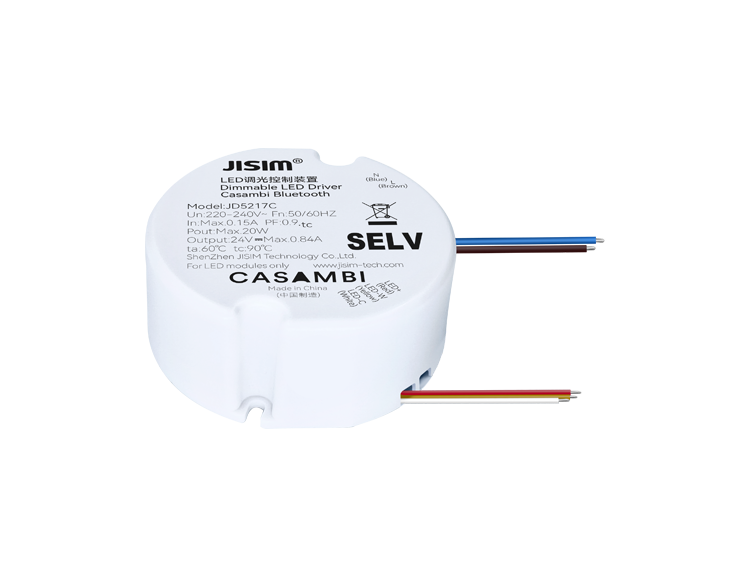

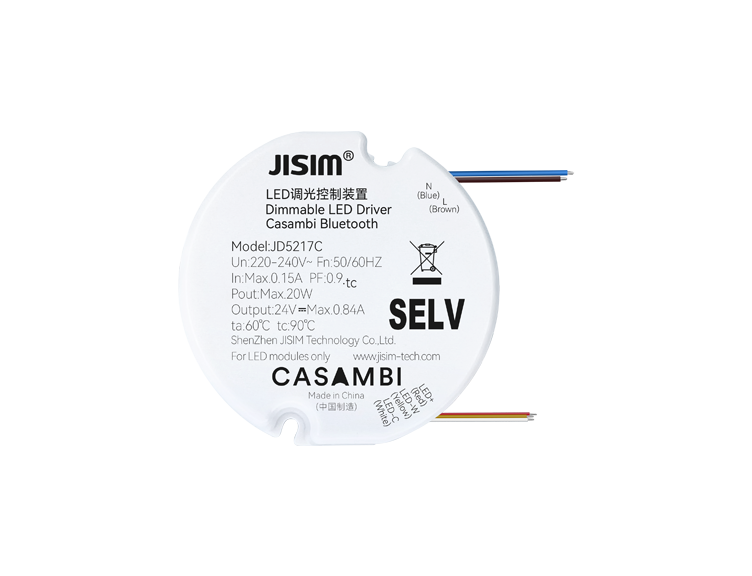

JD5217C Casambi Bluetooth 20W 0.84A 220-240VAC

Compact design suitable for modern decorative lamps including wall lamps, table lamps and pendant lamps
Adopts built-in driver with external Ipex antenna
Dimmable CCT adjustable constant current driver featuring high power factor, high efficiency and long service life
Bluetooth communication developed based on Casambi platform with powerful networking performance
Smooth high-performance dimming, flicker-free and no noise
Dimming range: 1%~100%, equipped with built-in soft start function
Supports Casambi App control
Output short-circuit, open-circuit and overload protection
Compliant with SELV safety standards
Lead wiring for input and output terminals
Ambient temperature: -20℃~+60℃, maximum housing temperature: 90℃
Internal glue potting for sealing, enhancing protection for lamps requiring waterproof and moisture-proof performance
Suitable for Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Model Number

JD5217C
Rated Voltage

220-240Vac
Output Current

0.84A
Product Dimension

55*53*23mm
Dimming Mode

Casambi Bluetooth
Dimming Range

1-100%
Protection

Output short circuit, open circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 82.4±10g per unit, small package: 94.1g per unit, medium carton: 6.5kg per carton, large carton: 26.9kg per carton
Packaging

Medium carton: 66pcs per carton Large carton: 264pcs per carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

Constant Voltage
Output Power

Max.20W
Output Voltage

24V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Built-in
Warranty

5 years
