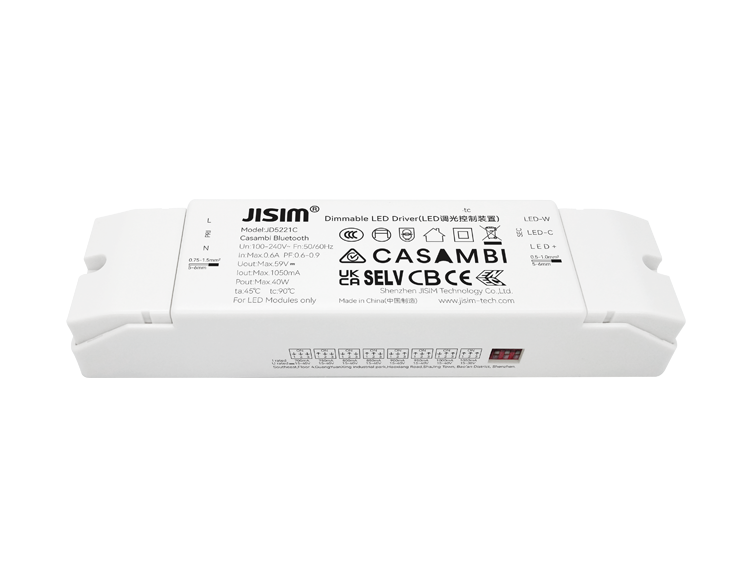

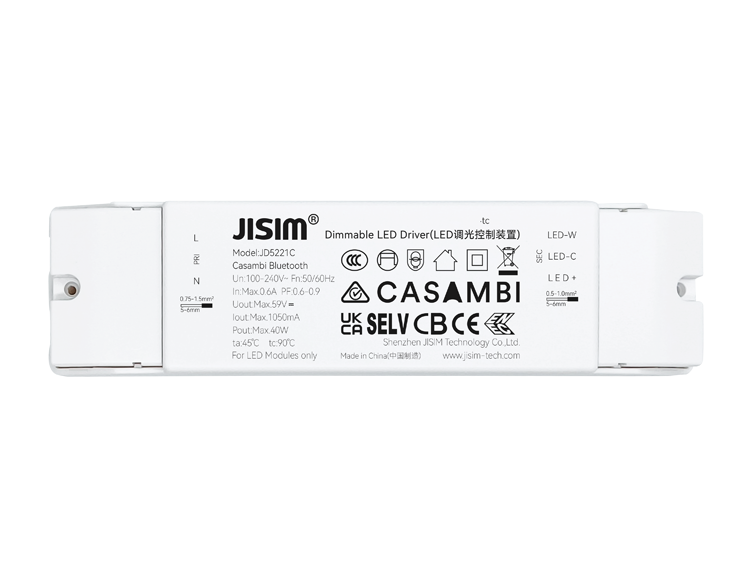

JD5221C Casambi Bluetooth 40W 750-1050mA 100-240VAC DIP

Compact design: Suitable for small cutout downlights, spotlights and linear lights
Dimmable color-tunable constant current driver featuring high power factor, high efficiency and long service life
Bluetooth communication: Developed based on Casambi platform with robust networking capability
Smooth high-performance dimming: Flicker-free and noise-free
Dimming range: 0.1%~100% with built-in soft start function
Control: Compatible with Casambi App
Output current adjustable via DIP switches
Protections: Output short-circuit, open-circuit and overload protection
Compliance: Meets safety extra-low voltage standards
Terminals: Screw locking terminals for input and output
Operating temperature: Ambient temperature ranging from -20℃ to +45℃; maximum housing temperature 75/80/90℃
Applicable luminaires: Class I, II and III lamps
Protection class: Class II

Consult Now Buy Now

Model Number

JD5221C
Rated Voltage

100-240Vac
Output Current

750-1050mA
Product Dimension

165*42*30mm
Dimming Mode

Casambi Bluetooth
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 189.8g±10 per piece, small package: 206.6g per piece, medium carton: 6.5kg per carton, large carton: 26.89kg per carton
Packaging

Medium carton: 30pcs per carton Large carton: 120pcs per carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

Constant Current
Output Power

Max.40W
Output Voltage

15-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Standalones
Warranty

5 years
